Tactile Dual-Arm Humanoid Platform

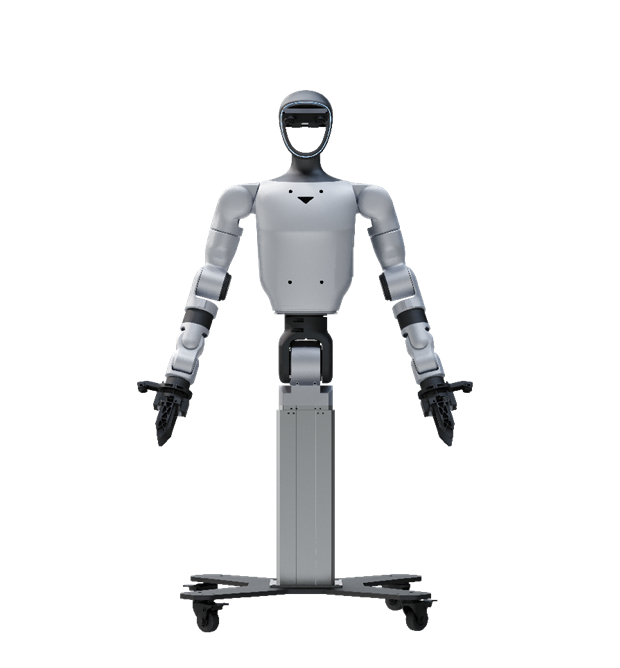

Unitree G1-D Standard E U5 Humanoid Robot
The Unitree G1-D Standard E U5 is a cutting-edge dual-arm humanoid robot equipped with BrainCo Revo 2 Tactile five-finger dexterous hands and haptic sensing for advanced manipulation tasks.
Designed for robotics research, AI education, industrial R&D, and human-robot interaction development, this configuration combines articulated dual-arm motion, tactile feedback, visual perception, and high-performance onboard computing within one integrated platform.
29 DOF Total degrees of freedom across the complete robot platform
6 DOF Per BrainCo Revo 2 Tactile dexterous hand
100 TOPS NVIDIA Jetson Orin 16G AI computing performance
3 kg Maximum payload supported by each robotic arm
Dexterous Manipulation
BrainCo Revo 2 Tactile Five-Finger Hands
The Standard E U5 replaces the Dex1-1 grippers with two BrainCo Revo 2 Tactile Edition hands, providing five-finger manipulation together with touch and haptic feedback.
Pressure Sensing
The tactile system detects pressure during contact and object interaction.
Friction Feedback
The hands provide friction-related sensing during manipulation tasks.
Directional Cues
Haptic feedback includes directional information during contact.
Integrated RGB Cameras
Each hand includes an RGB camera for close-range visual perception.
6 DOF per Hand
Each BrainCo Revo 2 Tactile hand provides six degrees of freedom.
11 Joints per Hand
The five-finger structure incorporates eleven articulated joints.
Full-Body Platform
Dual-Arm Humanoid Architecture
The robot combines articulated arms, a two-degree-of-freedom waist, a lifting column, and two tactile five-finger hands.
29 Total Degrees of Freedom
The complete configuration provides 29 degrees of freedom: 7×2 arm joints, 2 waist joints, 1 lifting-column joint, and 6×2 hand joints.
Adjustable Working Height
The lifting column provides a 500 mm lifting stroke, allowing the upper body to operate at different heights.
Extended Arm Reach
Each robotic arm provides a reach of approximately 0.45 m.
3 kg Payload per Arm
Each arm supports a maximum payload of up to 3 kg.
AI and Perception
High-Performance Computing and Sensor System
The Standard E U5 combines an eight-core processor with NVIDIA AI computing, integrated cameras, and an onboard audio system.
NVIDIA Jetson Orin 16G
Delivers up to 100 TOPS of AI computing performance.
8-Core CPU
Integrated processing supports robot control, development, and computing workflows.
Dual Head Camera
The head-mounted vision system provides a resolution of 3840 × 1200
Wrist Cameras
Wrist-mounted cameras provide a resolution of 1920 × 1080
Four-Microphone Array
The integrated microphone array supports audio input and interaction.
5 W Speaker
An integrated 5 W speaker provides audio output.
Power and Integration
Smart Battery, Connectivity, and Remote Control
The platform combines a smart battery system with wireless connectivity, remote operation, and software update support.
Approximately 2 Hours of Runtime
The robot uses a 9000 mAh smart battery and provides an operating time of approximately 2 hours.
Wireless Connectivity
The platform supports Wi-Fi 6 and Bluetooth 5.2.
Remote Controller Included
A remote controller is included for direct robot operation.
OTA and Visualization Support
The platform supports OTA software updates and visualization computer integration.
Technical Data
BrainCo Revo 2 Tactile Hand Specifications
| Hand Type | BrainCo Revo 2 Tactile five-finger dexterous hand |
|---|---|
| Degrees of Freedom | 6 DOF per hand |
| Number of Joints | 11 joints per hand |
| Repeatability | 0.1° |
| Hand Height | 160 mm from fingertip to palm base |
| Haptic Feedback | Pressure, friction, directional cues, and touch sensing |
| Integrated Vision | RGB camera |
Robot Specifications
Unitree G1-D Standard E U5 Technical Overview
| Model | Unitree G1-D Standard E U5 |
|---|---|
| Total Degrees of Freedom | 29 DOF: 7×2 arms, 2 waist, 1 column, and 6×2 hands |
| Weight with Battery | Approximately 50 kg |
| Dimensions | 1260–1680 × 500 × 500 mm |
| Maximum Payload per Arm | 3 kg |
| Arm Reach | 0.45 m |
| Lifting Stroke | 500 mm |
| Processor | 8-core CPU |
| AI Computing Module | NVIDIA Jetson Orin 16G, up to 100 TOPS |
| Head Vision | Dual camera, 3840 × 1200 |
| Wrist Vision | Wrist cameras, 1920 × 1080 |
| Audio | Four-microphone array and 5 W speaker |
| Connectivity | Wi-Fi 6 and Bluetooth 5.2 |
| Battery | 9000 mAh smart battery |
| Runtime | Approximately 2 hours |
| Remote Controller | Included |
| OTA Updates | Supported |
| Visualization Computer | Supported |
12-Month Full-Unit Warranty
The Unitree G1-D Standard E U5 includes a 12-month full-unit warranty.
