Bambu Lab R1 Accessory

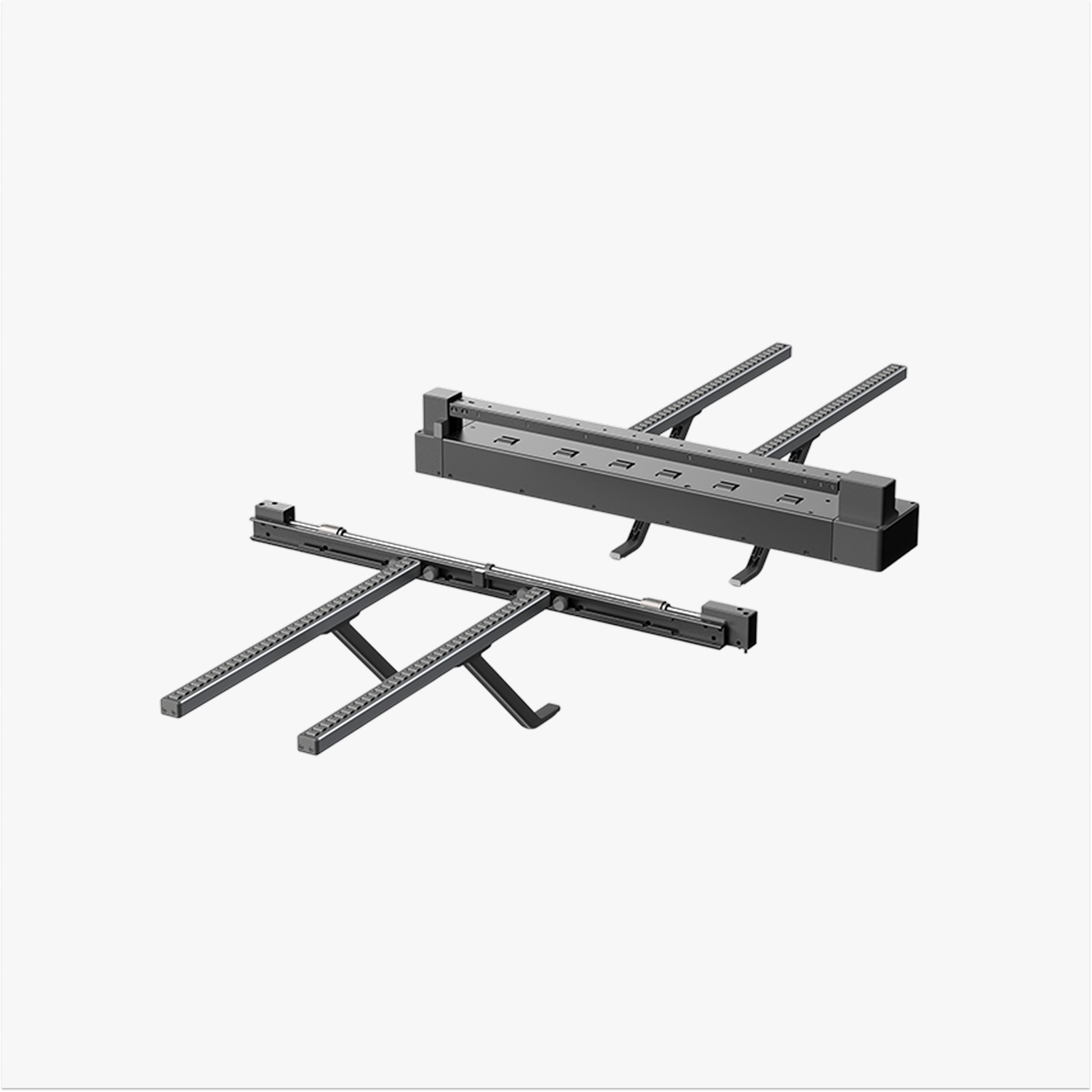

Automatic Conveyor Feeder
The Bambu Lab Automatic Conveyor Feeder expands the R1 for long-material laser projects by automatically feeding workpieces through the machine during processing. It makes it easier to work with extended signs, panels, furniture parts and other large-format projects while reducing the need for manual repositioning.
Bambu Lab R1
Compatible Machine
Ready-to-Use
R1 Accessory
Automatic
Material Feeding
Up to 3 m
Extended Processing Length

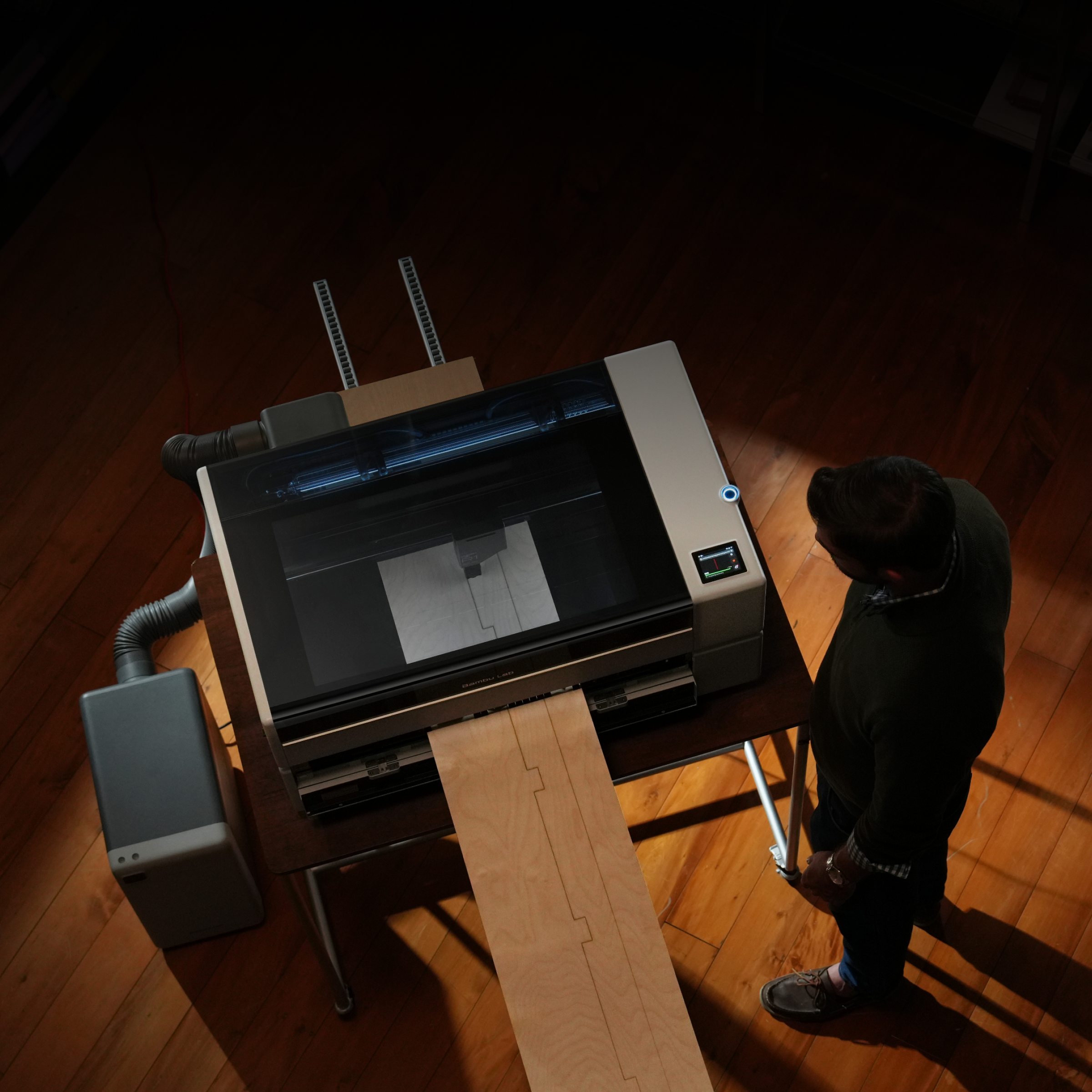

Go up to 3 meters long
The Conveyor automatically feeds long materials through R1 during processing, extending the processing length up to 3,000 mm for signs, panels, furniture parts, and other large-format projects.
Easy to install and remove
The Conveyor is quick to install and easy to remove, making it simple to switch between long-material and regular-size projects.
Requires the Riser for installation and use.
Parameter
| Parameter | Specification |
|---|---|
| Applicable to | Specification Bambu Lab R1 |
| Product Dimensions | Specification 117 × 1234 × 756 mm |
| Package Dimensions | Specification 867 × 388 × 246 mm |
| Dimensions | Specification 940 × 560 × 234 mm |
| Net Weight | Specification Approx. 9.2 kg |
| Max. Workpiece Size |
Specification
Guide rail only, no extension: 450 mm < length < 1500 mm Guide rail + 1 extension: 450 mm < length < 2000 mm Guide rail + 2 extensions: 450 mm < length < 2500 mm Guide rail + 3 extensions: 450 mm < length < 3000 mm |
| Max. Processing Speed |
Specification
Laser Fill / Laser Image: 1000 mm/s
Laser Line / Laser Cut: 200 mm/s |
| Power Supply | Specification Powered via 6-pin cable connected to the R1 riser base |
* The length of material the machine can engrave depends on whether guide rail extensions are used and how many. No matter how many sets of extension rails are used, it is recommended to use no more than 3 sets at maximum. The length of the material shall not exceed 200 mm beyond the total length of the rails plus the machine.
In the Box
| Item | Quantity |
|---|---|
| Smoke Curtain Mount | Quantity 1 |
| Support Roller Assembly | Quantity 1 |
| Conveyor Roller Assembly | Quantity 1 |
| Guide Rail | Quantity 4 |
| Guide Rail Support | Quantity 4 |
| Bambu Bus Cable 6-pin | Quantity 1 |
| Sensor Light Shield | Quantity 1 |
| Screws (for Smoke Curtain Mount) | Quantity 6 |
| Screws (for Support Roller Assembly) | Quantity 6 |
| Screws (for Conveyor Roller Assembly) | Quantity 10 |
| Screws (for Guide Rail) | Quantity 6 |
| Allen Key | Quantity 1 |
Description
Bambu Lab R1 Accessory
Automatic Conveyor Feeder
The Bambu Lab Automatic Conveyor Feeder expands the R1 for long-material laser projects by automatically feeding workpieces through the machine during processing. It makes it easier to work with extended signs, panels, furniture parts and other large-format projects while reducing the need for manual repositioning.
Bambu Lab R1
Compatible Machine
Ready-to-Use
R1 Accessory
Automatic
Material Feeding
Up to 3 m
Extended Processing Length
Go up to 3 meters long
The Conveyor automatically feeds long materials through R1 during processing, extending the processing length up to 3,000 mm for signs, panels, furniture parts, and other large-format projects.
Easy to install and remove
The Conveyor is quick to install and easy to remove, making it simple to switch between long-material and regular-size projects.
Requires the Riser for installation and use.
Parameter
| Parameter | Specification |
|---|---|
| Applicable to | Specification Bambu Lab R1 |
| Product Dimensions | Specification 117 × 1234 × 756 mm |
| Package Dimensions | Specification 867 × 388 × 246 mm |
| Dimensions | Specification 940 × 560 × 234 mm |
| Net Weight | Specification Approx. 9.2 kg |
| Max. Workpiece Size |
Specification
Guide rail only, no extension: 450 mm < length < 1500 mm Guide rail + 1 extension: 450 mm < length < 2000 mm Guide rail + 2 extensions: 450 mm < length < 2500 mm Guide rail + 3 extensions: 450 mm < length < 3000 mm |
| Max. Processing Speed |
Specification
Laser Fill / Laser Image: 1000 mm/s
Laser Line / Laser Cut: 200 mm/s |
| Power Supply | Specification Powered via 6-pin cable connected to the R1 riser base |
* The length of material the machine can engrave depends on whether guide rail extensions are used and how many. No matter how many sets of extension rails are used, it is recommended to use no more than 3 sets at maximum. The length of the material shall not exceed 200 mm beyond the total length of the rails plus the machine.
In the Box
| Item | Quantity |
|---|---|
| Smoke Curtain Mount | Quantity 1 |
| Support Roller Assembly | Quantity 1 |
| Conveyor Roller Assembly | Quantity 1 |
| Guide Rail | Quantity 4 |
| Guide Rail Support | Quantity 4 |
| Bambu Bus Cable 6-pin | Quantity 1 |
| Sensor Light Shield | Quantity 1 |
| Screws (for Smoke Curtain Mount) | Quantity 6 |
| Screws (for Support Roller Assembly) | Quantity 6 |
| Screws (for Conveyor Roller Assembly) | Quantity 10 |
| Screws (for Guide Rail) | Quantity 6 |
| Allen Key | Quantity 1 |
Bambu Lab
by
Bambu Lab
Bambu Lab Automatic Conveyor Feeder for R1 Laser
SKU:
PACBB0614
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Shipping calculated at checkout.
