Newly Upgraded · Control System 2.0

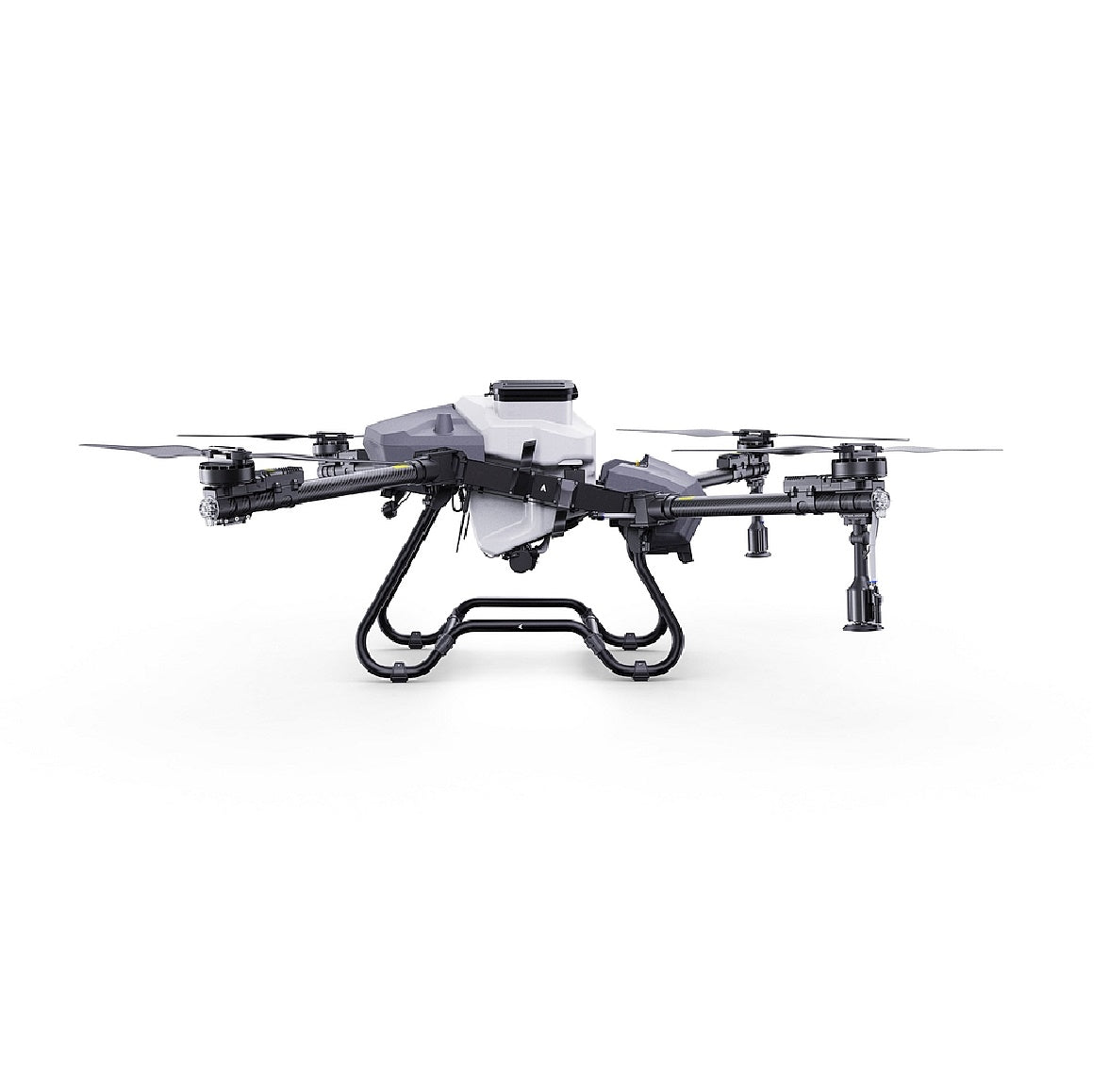

EFT Z50P Standard V2.0 G20 with RTK
Smoother Operation, Simpler Control — Large-Payload Precision Agriculture
50L
Spray Tank
101.4kg
Max Takeoff Weight
16 L/min
Max Flow Rate (dual pump)
±0.1m
RTK Precision (H/V)
Truss Structure — Double Strength, Flexible Handling
A reinforced truss airframe delivers sturdy, reliable performance for heavy-payload operation, while remaining flexible and easy to handle in the field.
All-In-One — Quick-Swap Design for Multiple Applications
Switch between spraying and spreading modules quickly, without tools or complex reconfiguration — one airframe covers both jobs.
Fine Atomizing Spray — Precise and Efficient
The atomized spraying system adjusts to different crops for scientific, targeted application. High-flow impeller pumps and water-cooled centrifugal nozzles spray efficiently, while an ultrasonic flow meter, sensor, and liquid separation detection keep output stable and precise.
Upgraded Spreading System — 360° Smooth Spreading
The integrated spreading kit installs quickly with automatic identification — no manual debugging needed. An upgraded umbrella-shaped metal stirrer and stronger disc deliver even, 360° spreading that saves both time and material.
Control System 2.0 — Enhanced Performance, Simpler Operation
A brand-new app with simplified logic makes setup fast. Parameters are configured in seconds, real-time data is visible throughout the flight, and multiple language options ensure smooth operation for any crew.
U-Type Turn
Smoother U-turn routing for more efficient field coverage.
Intelligent Route Planning
Auto-optimizes resumed flights to save power and time.
New Upgraded Motor System — Stronger Power, Safer Flying
Upgraded 56-inch high-strength propellers with CAN protocol configuration and real-time data logging deliver more powerful, stable flight even under full load.
Deeply Optimized — Durable and Reliable
An optimized internal structure is more wear-resistant with effortless IP67 maintenance. Upgraded circuit boards and control algorithms improve overall durability and stability.
Truss Structure: Optimized structure, more durable.
Arm Sensor: Smart feedback, enhanced security.
Circuit Board: Optimized circuitry, more secure.
Integrated FC Module: V2.0 system, much smoother.
Technical Specifications — Z50P
| Weight, spraying config (no battery) | 36.7 kg |
| Weight, spraying config (with battery) | 51.4 kg |
| Weight, spreading config (no battery) | 37.2 kg |
| Weight, spreading config (with battery) | 51.9 kg |
| Max Takeoff Weight | 101.4 kg |
| Wheelbase | 2299 mm |
| Unfolded Size (spray / spread) | 3045 × 3078 × 830 mm / 3045 × 3078 × 890 mm |
| Folded Size (spray / spread) | 1113 × 781 × 841 mm / 1113 × 781 × 890 mm |
| No-Load Hovering Time | 17.5 min (18S 30000mAh) |
| Full-Load Hovering Time | 7 min |
| Operating Temperature | 0–40°C |
| SPRAYING SYSTEM | |
| Tank Capacity | 50 L |
| Water Pump | 12–18S, 30W×2, max flow 8 L/min ×2 |
| Nozzle | 12–18S, 500W, atomized particle size 50–500 μm |
| Spray Width | 4–8 m |
| SPREADING SYSTEM | |
| Tank Capacity | 70 L |
| Max Load | 50 kg |
| Applicable Granule | 0.5–6 mm dry solids |
| Spread Width | 8–12 m |
| MOTOR SYSTEM | |
| Model | 13825 |
| Voltage / KV | 18S / 45KV |
| Maximum Power | 10,887 W |
| Constant Power | 2,971 W |
| Propeller Size | 56 inch |
| FLIGHT CONTROL | |
| Operating Voltage | 12–80V |
| Working Temperature | -10 to 60°C |
| RTK Precision | Horizontal ±0.1m, Vertical ±0.1m |
| GPS Precision | Horizontal ±1.5m, Vertical ±0.5m |
| Wind Resistance | Sustained: Level 4, Gust: Level 5 |
| REMOTE CONTROL | |
| Display | 5.5 inch, 1080×1920 |
| Working Time / Charging Time | 5h / 5h (20W) |
| Control Distance | 1 km (3m altitude, no obstruction) |
| Weight | 850 g |
| RECOMMENDED BATTERY | |
| Voltage / Capacity | 18S / 30,000 mAh |
| Weight | 13.5 kg |
Weight parameters vary by ±1 kg depending on final product configuration.
