About
Description
Dual-Nozzle Multi-Material 3D Printing

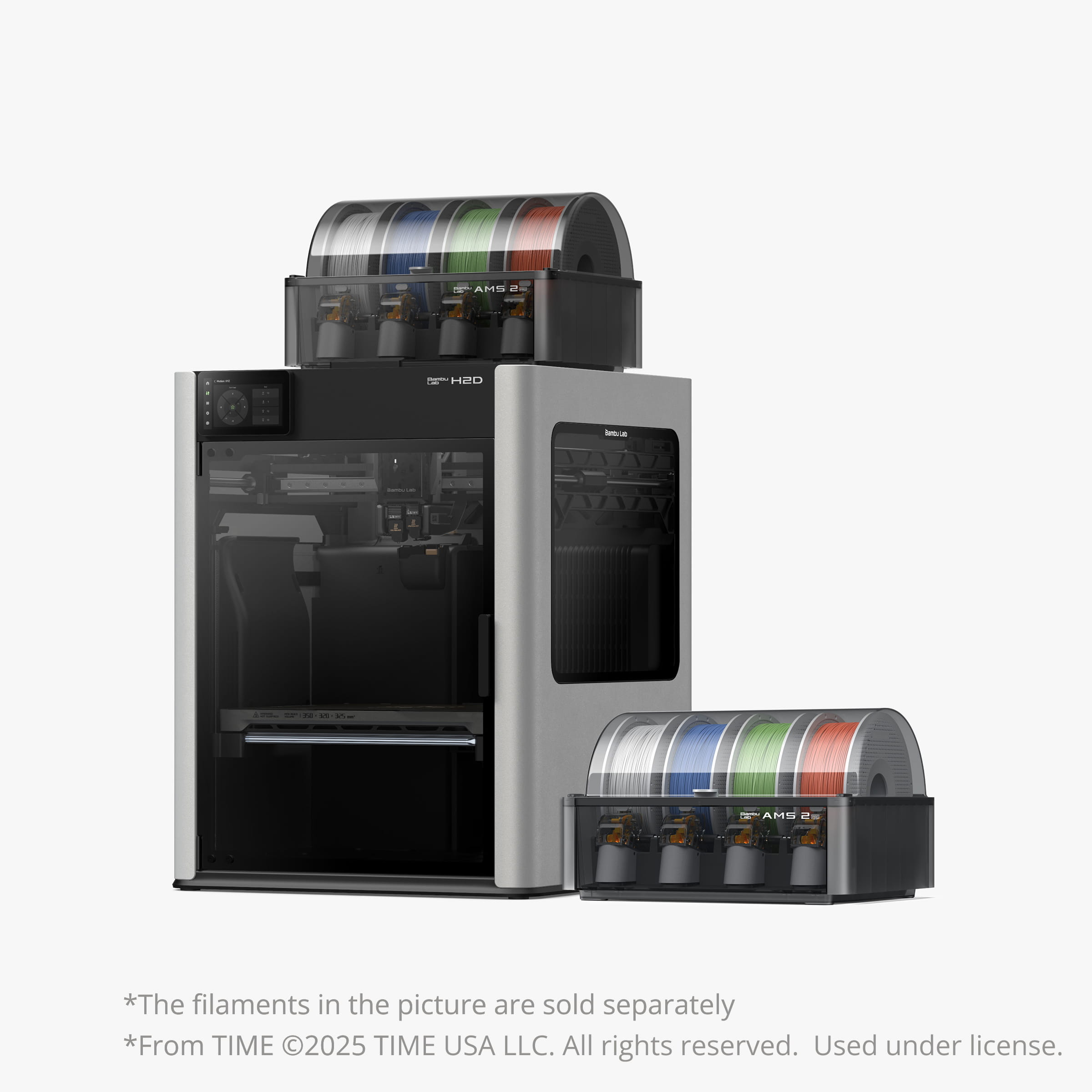

Bambu Lab H2D Dual AMS 2 Pro Bundle
A professional dual-nozzle 3D printing system bundled with two AMS 2 Pro units for advanced multi-color and multi-material workflows. H2D combines a large build volume, 350°C hotends, active chamber heating, high-speed motion and intelligent automation with eight filament slots available directly through the included material systems.
350 × 320 × 325 mm
Total dual-nozzle workspace
2 × AMS 2 Pro
Eight filament slots included
350°C
Maximum nozzle temperature
65°C
Active chamber heating
Why Choose the Dual AMS 2 Pro Bundle
Advanced Multi-Material Printing with Eight Filament Slots
The Dual AMS 2 Pro Bundle expands the H2D platform with two four-slot Automatic Material Systems. This provides eight filament positions immediately, making complex multi-color, support-material and engineering-material workflows easier to manage without frequent manual spool changes.
Dual-Nozzle Printing
Two independently controlled hotends enable efficient multi-material printing, dedicated support materials and flexible material combinations.
Two AMS 2 Pro Units
The bundle includes two AMS 2 Pro systems with four filament slots each, providing eight ready-to-use filament positions.
Active Filament Drying
AMS 2 Pro provides active ventilated filament drying at temperatures up to 65°C together with sealed filament storage.
Large Build Volume
H2D provides a total dual-nozzle workspace of 350 × 320 × 325 mm for large prototypes, functional parts and production projects.
Engineering Material Support
Hardened-steel extrusion components, 350°C hotends and an actively heated chamber support a broad range of standard and engineering-grade filaments.
Intelligent Automation
Cameras, sensors and automated calibration systems monitor printing, material flow and machine conditions throughout the manufacturing process.
Dual-Nozzle Architecture
Two Materials, More Efficient Workflows
H2D uses a dual-nozzle system designed for multi-material printing. Different filaments can be assigned to separate nozzles, allowing users to combine model and support materials, colors or materials with different properties within the same print.
Dedicated Support Material
One nozzle can print the primary model while the second handles dedicated support-interface material for cleaner surfaces and easier support removal.
Flexible Material Combinations
Dual-nozzle operation allows different compatible materials to be combined without relying exclusively on repeated single-nozzle filament changes.
Dual AMS 2 Pro
Eight Filament Slots Ready to Print
Each AMS 2 Pro provides four filament slots, giving this bundle a total of eight immediately available spool positions. Automatic loading, unloading and material switching simplify complex multi-color and multi-material jobs.
4 + 4 Filament Slots
Two AMS 2 Pro systems provide eight filament positions, reducing manual spool changes during complex projects.
65°C Active Drying
AMS 2 Pro uses active heated airflow and automatic spool rotation to dry compatible filaments evenly at temperatures up to 65°C.
Sealed Filament Storage
The enclosed AMS design helps maintain a controlled environment for stored filament between printing sessions.
RFID Synchronization
Compatible Bambu Lab RFID-tagged filament can be automatically recognized and synchronized with the printing system.
Engineering Materials
350°C Hotend and 65°C Active Chamber
H2D is designed for more than basic PLA printing. Its all-metal hotend reaches up to 350°C, the build plate heats up to 120°C, and the enclosed chamber provides active heating up to 65°C. These controlled thermal conditions help improve reliability when working with demanding engineering materials.
High-Speed Motion
Up to 1000 mm/s Toolhead Speed
The H2D motion platform reaches toolhead speeds up to 1000 mm/s and acceleration up to 20,000 mm/s². Closed-loop extrusion and advanced motion calibration help maintain consistent performance during demanding high-speed jobs.
Technical Specifications
Bambu Lab H2D Dual AMS 2 Pro Bundle
Build Area & Printing
| Printing Technology | FDM / FFF |
| Total Dual-Nozzle Workspace | 350 × 320 × 325 mm³ |
| Single-Nozzle Build Volume | 325 × 320 × 325 mm³ |
| Dual-Nozzle Build Volume | 300 × 320 × 325 mm³ |
| Nozzle System | Dual nozzle |
| Maximum Nozzle Temperature | 350°C |
| Maximum Heatbed Temperature | 120°C |
| Maximum Chamber Temperature | 65°C |
Toolhead & Performance
| Hotend | All-metal |
| Extruder Gear | Hardened steel |
| Nozzle Material | Hardened steel |
| Included Nozzle Diameter | 0.4 mm |
| Supported Nozzle Diameters | 0.2 mm, 0.4 mm, 0.6 mm and 0.8 mm |
| Maximum Toolhead Speed | 1000 mm/s |
| Maximum Acceleration | 20,000 mm/s² |
| Maximum Standard Hotend Flow | Up to 40 mm³/s under specified test conditions |
Dual AMS 2 Pro System
| AMS 2 Pro Units Included | 2 |
| Slots per AMS | 4 |
| Total Included Filament Slots | 8 |
| Maximum Drying Temperature | 65°C |
| Filament Drying | Active heated airflow |
| Automatic Spool Rotation | Supported during drying |
| RFID Filament Recognition | Supported for compatible Bambu Lab filament |
| Automatic Filament Backup | Supported |
AMS 2 Pro Dimensions
| Dimensions per Unit | 372 × 280 × 226 mm |
| Dimensions per Unit | 14.65 × 11.02 × 8.90 in |
| Net Weight per Unit | 2.5 kg / 5.51 lb |
| Housing Material | ABS / PC |
Compatible Materials
| Standard Materials | PLA, PETG, TPU, PVA and BVOH |
| Engineering Materials | ABS, ASA, PC, PA and PET |
| Fiber-Reinforced Materials | Compatible supported CF/GF engineering filaments |
| Filament Diameter | 1.75 mm |
Dimensions & Weight
| Printer Dimensions | 492 × 514 × 626 mm |
| Printer Dimensions | 19.37 × 20.24 × 24.65 in |
| Printer Net Weight | 31 kg / 68.34 lb |
| H2D AMS Combo Gross Weight | 44.2 kg / 97.44 lb |
| Additional AMS 2 Pro Package Weight | Approx. 8.20 lb |
| Estimated Dual Bundle Shipping Weight | Approx. 105.64 lb |
Bundle Configuration
| 3D Printer | Bambu Lab H2D |
| Automatic Material Systems | 2 × AMS 2 Pro |
| Build Plate | Textured PEI Plate |
| Spool Holder | Included |
| Accessory Box | Included |
| Safety Key | Included |
Control & Connectivity
| Control Software | Bambu Studio |
| Mobile Control | Bambu Handy |
| Network Connectivity | Wi-Fi |
| Local Connectivity | USB |
| Automatic Bed Leveling | Supported |
| Power-Loss Recovery | Supported |
