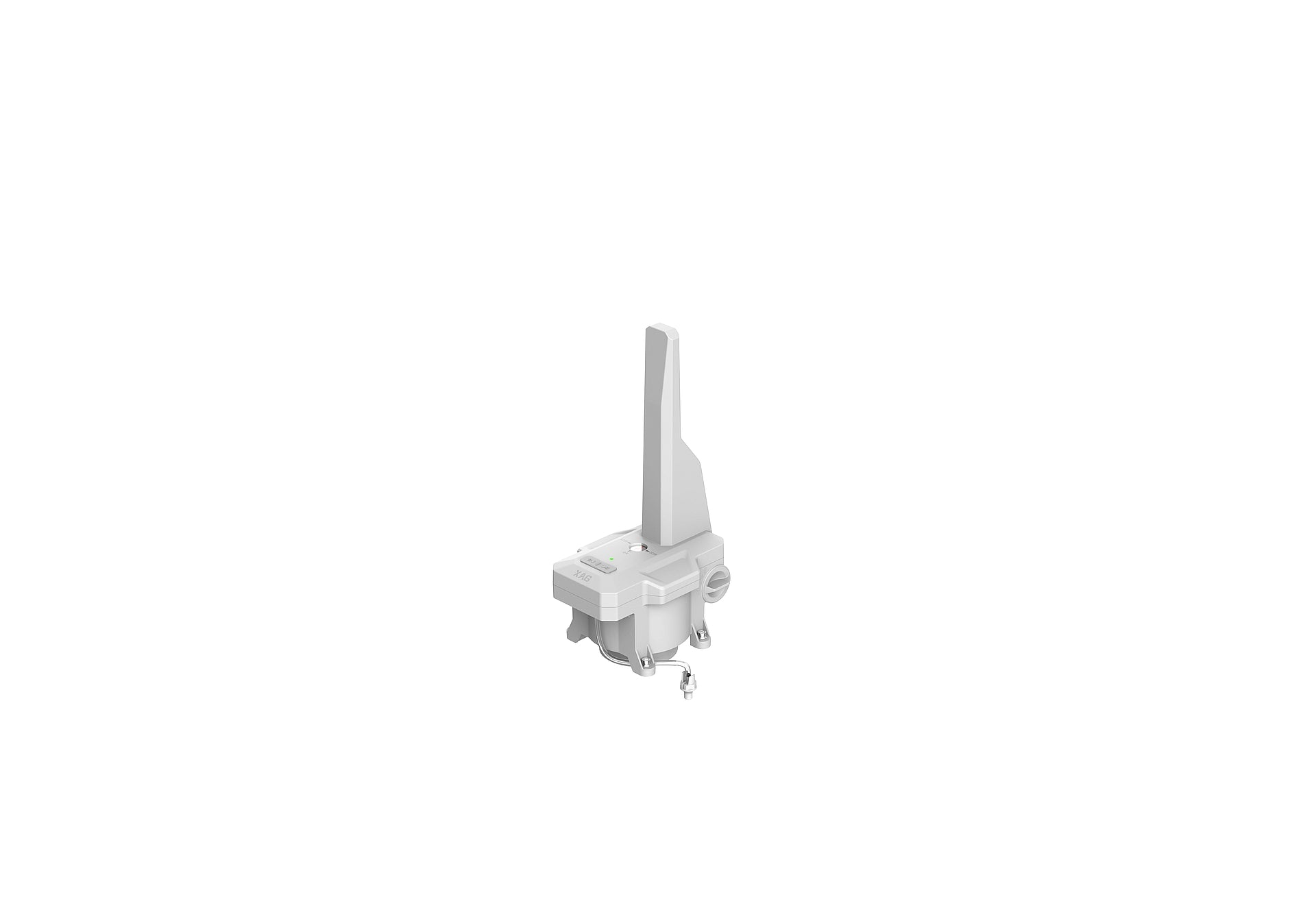

XAG FBV3i Smart Electric Valve Controller (Internal Antenna) is an intelligent valve controller within the XAG Smart Farm ecosystem (2025), designed for automated irrigation management.

The FBV3i model works exclusively with the XAG FBV3 3-way valve and enables remote water flow control via the XAG Farm app.

The internal antenna version is optimized for standard operating conditions without external communication components.

Key Functions

• Remote control via XAG Farm App
• Water pressure monitoring in the system
• Automatic valve opening and closing
• Farm map geolocation
• Irrigation scenarios (irrigation groups)
• Automatic operating modes
• Connectivity via Bluetooth + Wi-Fi (through the farm local network)

Construction and Components

• FBV3i controller
• Internal PCB antenna
• Water pressure sensor
• Air tube
• Battery compartment
• Control buttons (left and right)
• LED status indicator
• Mounting hardware (M5 screws)

How It Works

The controller mounts onto the FBV3 valve and performs the following functions:

• Controls the ball valve position (open/close/flow direction)
• Transmits water pressure data
• Integrates into the farm IoT network
• Enables automated irrigation through the mobile app

Technical Specifications

Compatibility: FBV3 electric valve
Antenna type: internal PCB
System protection: approx. IP66 (dust and water resistant)
Valve system material: UPVC (durable and resistant)
Power supply: battery (built-in compartment)
Control interface: buttons + mobile app

Operational Features

• Mounts directly onto the valve (vertical orientation)
• Operates within farm network coverage (FS1 / FS2 server)
• Requires minimal obstacles for stable connectivity
• After installation, clear approximately 1 meter around the device

Application

• Irrigation automation
• Zone-based water management
• Water resource optimization
• Integration into smart farming solutions
