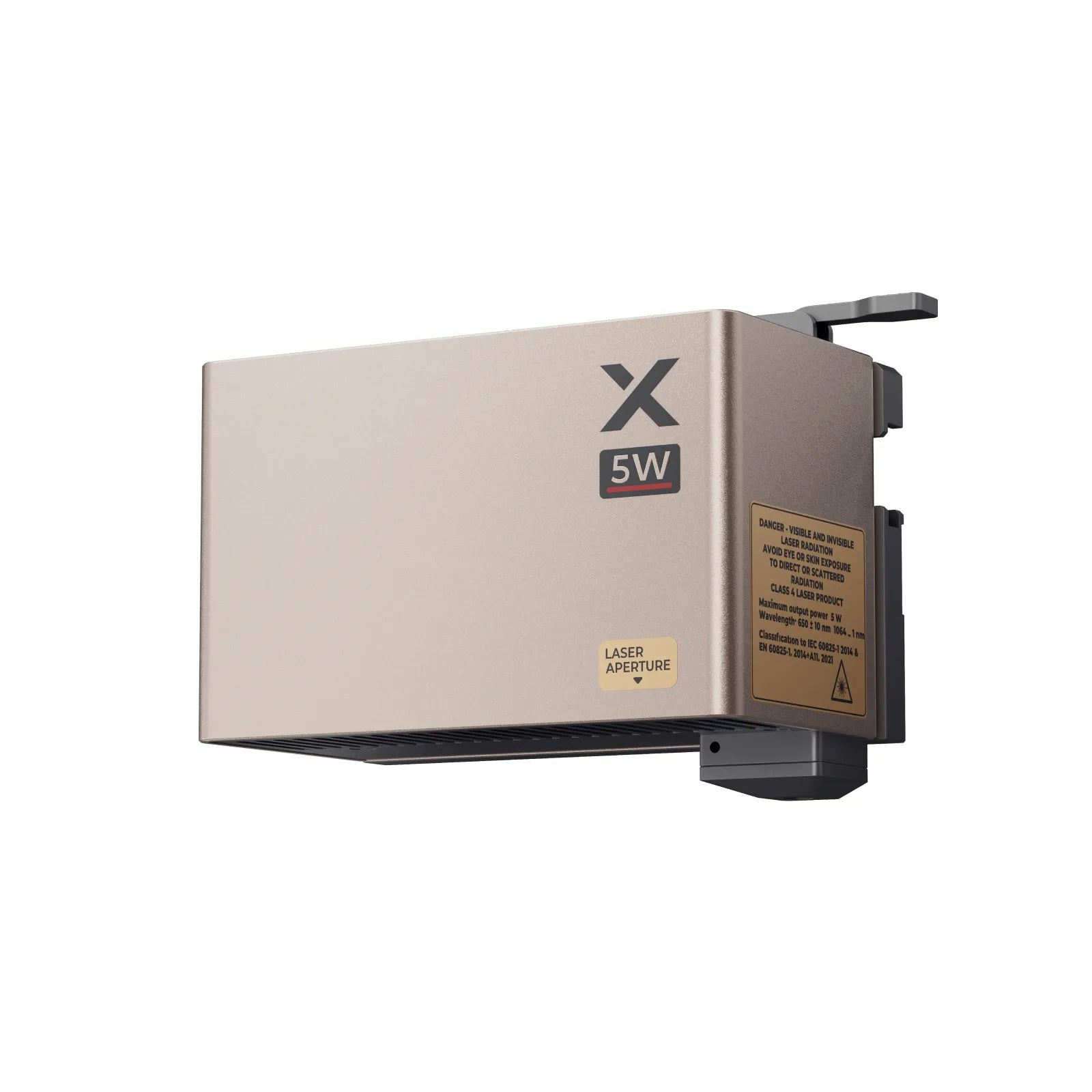

xTool 5W IR Laser Module for P3
The xTool 5W IR Laser Module for P3 is an infrared laser engraving accessory designed exclusively for the xTool P3 laser machine. Featuring a 5W laser output and a wavelength of 1064 nm, the module expands the machine's capabilities for detailed engraving and marking on compatible metals, plastics, and other materials.
The infrared module complements the xTool P3's built-in CO₂ laser, allowing users to process a wider range of materials for customization, product identification, and creative projects.
Key Features
5W infrared laser — delivers precise engraving and marking with a 1064 nm wavelength.

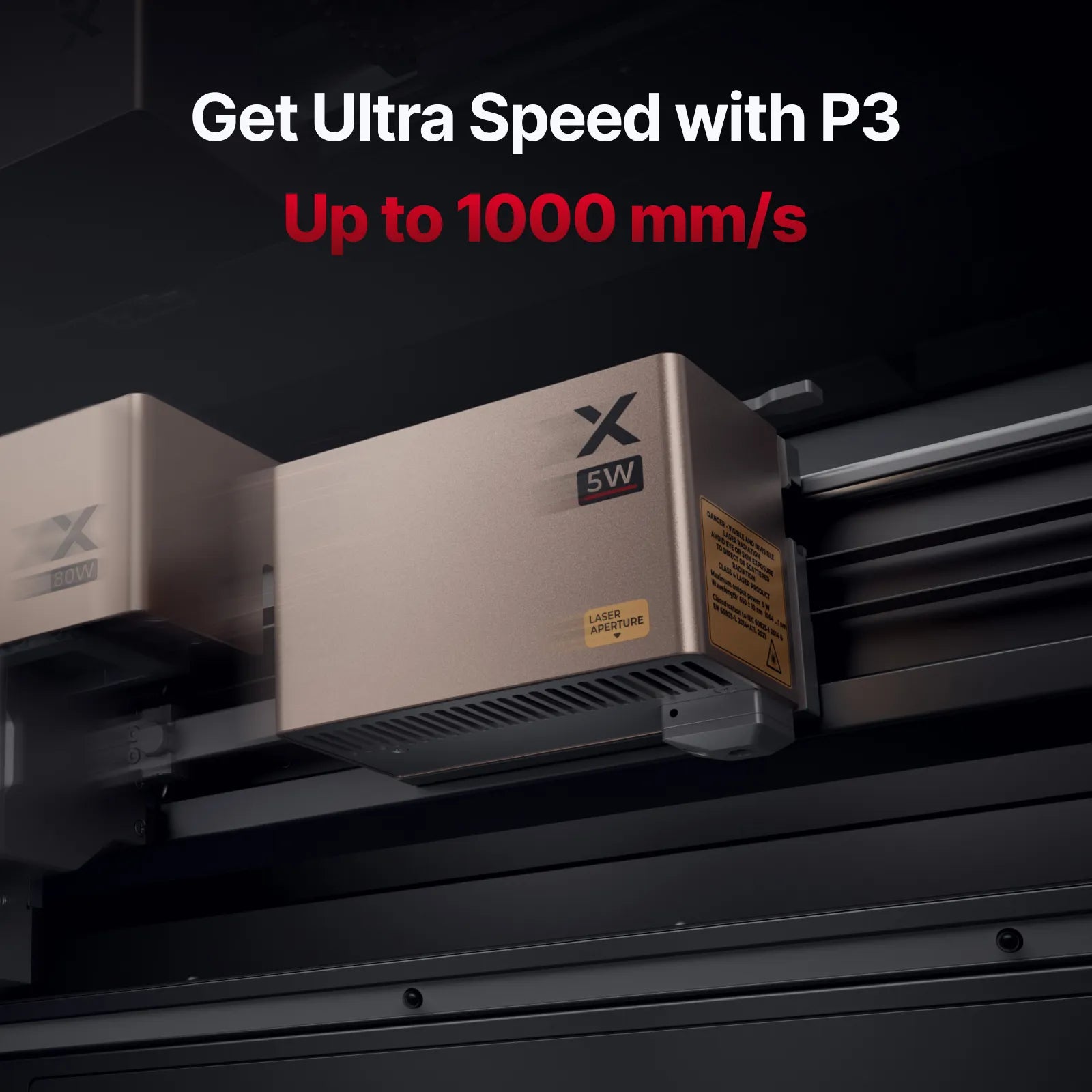

High-speed engraving — supports engraving speeds of up to 1,000 mm/s, depending on material and processing conditions.
Large working area — provides a processing area of 650 × 426 mm.

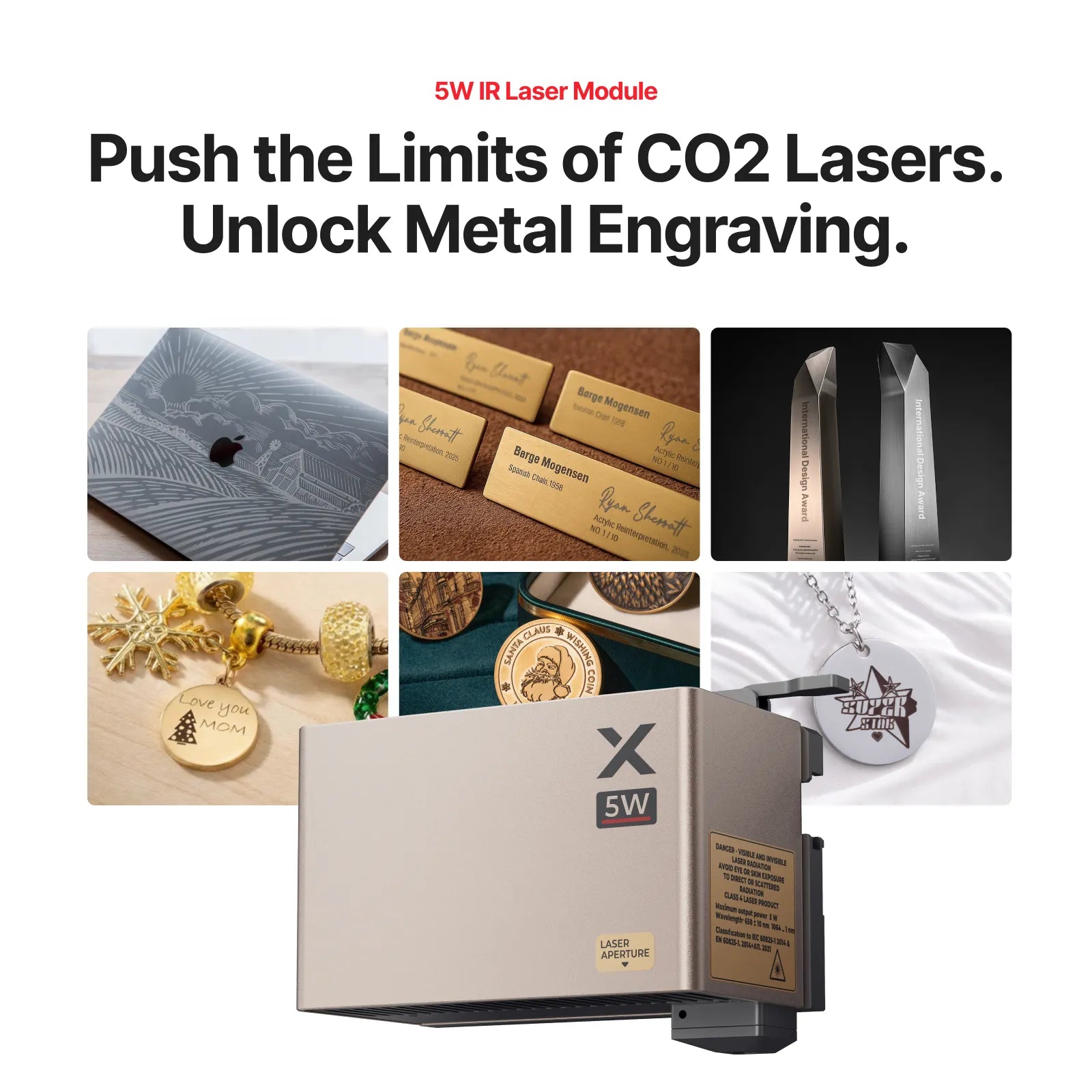

Material versatility — supports engraving on stainless steel, brass, gold, anodized metals, plastics, leather, stone, and other compatible materials.
Pulsed laser technology — operates at a repetition rate of 25–30 kHz with a 4 ns pulse width.
Integrated power supply — powered directly by the xTool P3 without an additional external power adapter.
Dedicated compatibility — developed specifically for the xTool P3.
Applications
The xTool 5W IR Laser Module is suitable for various engraving and personalization applications, including:
Metal accessories and personalized gifts
Jewelry engraving and customization
Product identification and serial markings
Engraving on compatible plastic components
Decorative patterns and detailed designs
Branding and customization of small products
Technical Specifications
| Specification | Value |
|---|---|
| Laser power | 5 W |
| Wavelength | 1064 ± 1 nm |
| Pulse width | 4 ns |
| Repetition rate | 25–30 kHz |
| Peak power | 49–65 kW |
| Single pulse energy | >0.14 mJ |
| Focal length | 49 mm |
| Working area | 650 × 426 mm |
| Maximum engraving speed | 1,000 mm/s |
| Maximum scoring speed | 300 mm/s |
| Maximum material height | 180 mm |
| Cooling method | Air cooling |
| Operating temperature | 0–35°C |
| Expected laser lifetime | Approximately 8,000 hours |
| Module dimensions | 136.5 × 94.5 × 92.5 mm |
| Module weight | 850 g |
| Power supply | xTool P3 main unit |
| Compatibility | xTool P3 only |
Compatibility and Operation
The module is compatible exclusively with the xTool P3 and operates through xTool software. Users can select the infrared laser head and configure processing parameters according to the selected material.
The 5W IR Laser Module supports engraving and scoring operations. Laser cutting is not supported by this module.
Actual engraving results and processing speeds depend on material properties, software settings, and operating conditions.
Explore the xTool 5W IR Laser Module for P3 at Futurology Tech to expand your laser engraving capabilities.
