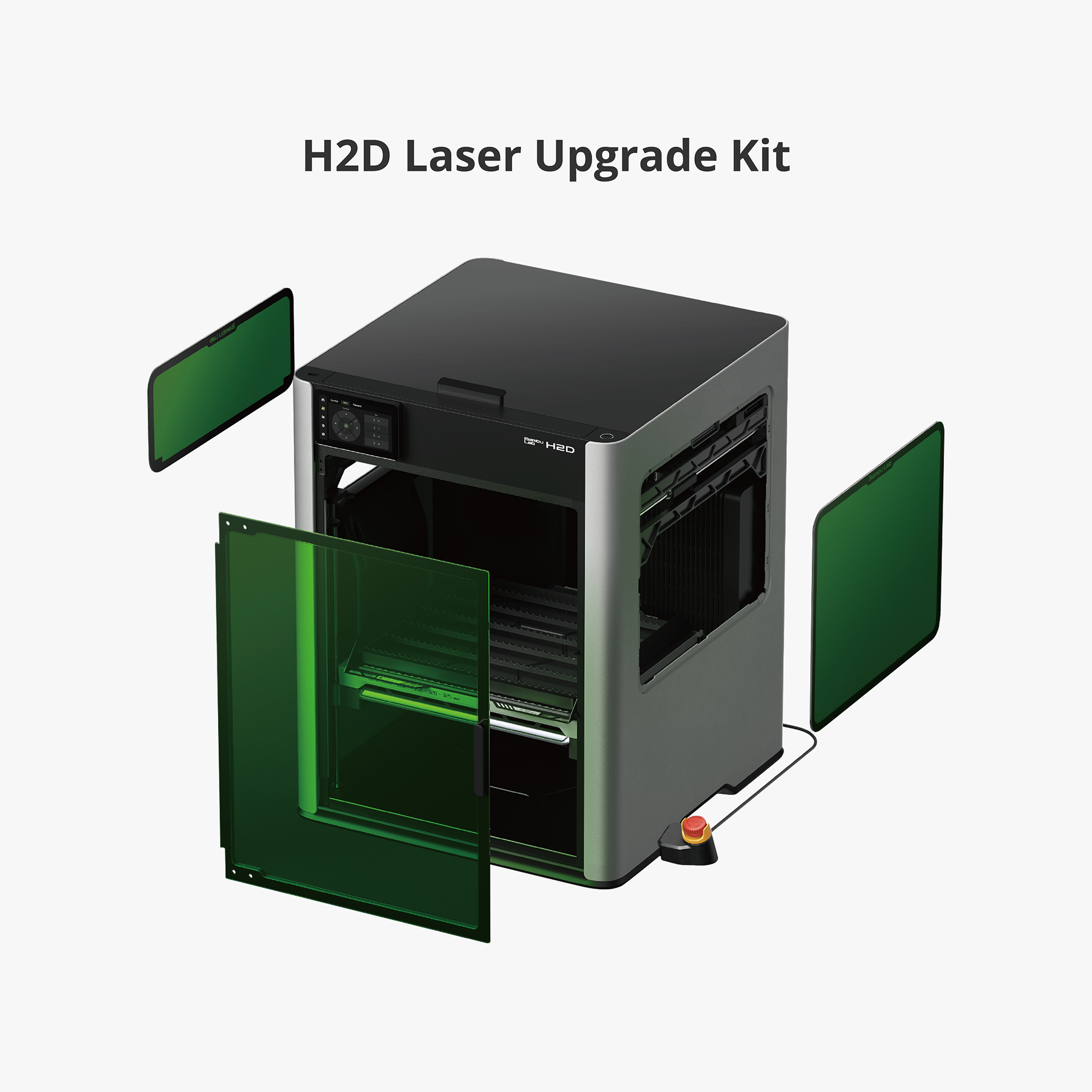

Bambu Lab Laser Upgrade Kit

Transform compatible Bambu Lab H2 Series machines into powerful laser processing systems with the Bambu Lab Laser Upgrade Kit. Designed for cutting, engraving, and precision material processing, the upgrade combines a high-power laser module with dedicated safety components, positioning hardware, Air Assist, ventilation components, and integrated optical measurement features. Depending on the selected machine and configuration, the kit is available with 10W or 40W laser capability.

Designed for Complete Laser Processing

High-Power Laser

Choose between supported 10W and 40W configurations for engraving and cutting across a wide range of compatible materials.

Precision Positioning

Integrated optical measurement and positioning systems help support accurate processing and reliable placement.

Air Assist

High-speed airflow helps cool the processing area, improve surface quality, and support cleaner laser cutting.

Integrated Safety

Dedicated laser safety windows, protective components, flame sensing, ventilation, and emergency controls support safer operation.

10W and 40W Laser Options

Specification	10W Laser	40W Laser
Laser Power	10W ± 1W	40W ± 2W
Laser Spot Dimension	0.14 × 0.03 mm	0.14 × 0.2 mm
Maximum Engraving Speed	400 mm/s	1000 mm/s
Engraving Area	310 × 270 mm	310 × 250 mm

Maximum Cutting Thickness

Material	40W	10W
Basswood Plywood	15 mm	6 mm
Birch Plywood	15 mm	6 mm
Bamboo Board	6 mm	3 mm
Black Acrylic	15 mm	3 mm
Cork Sheet	4 mm	2 mm
Stainless Metal	0.1 mm	0.05 mm

Max Cutting Speed — Single Pass

Material	40W	10W
3 mm Basswood	16 mm/s	5 mm/s
4 mm Basswood	15 mm/s	4 mm/s
6 mm Basswood	10 mm/s	2 mm/s
10 mm Basswood	4 mm/s	—

Product Specifications

Laser Type	Semiconductor Laser
Laser Wavelength	Engraving Laser: 455 nm ± 5 nm Blue Light Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power	10W: 10W ± 1W 40W: 40W ± 2W
Laser Spot Dimension	10W: 0.14 × 0.03 mm 40W: 0.14 × 0.2 mm
Supported Material Type	Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Max Engraving Speed	10W: 400 mm/s 40W: 1000 mm/s
Laser Safety Class for Laser Module	Class 4
Overall Laser Safety Class	Class 1
Engraving Area	10W: 310 × 270 mm 40W: 310 × 250 mm
Ventilation Pipe Adapter Outer Diameter	100 mm

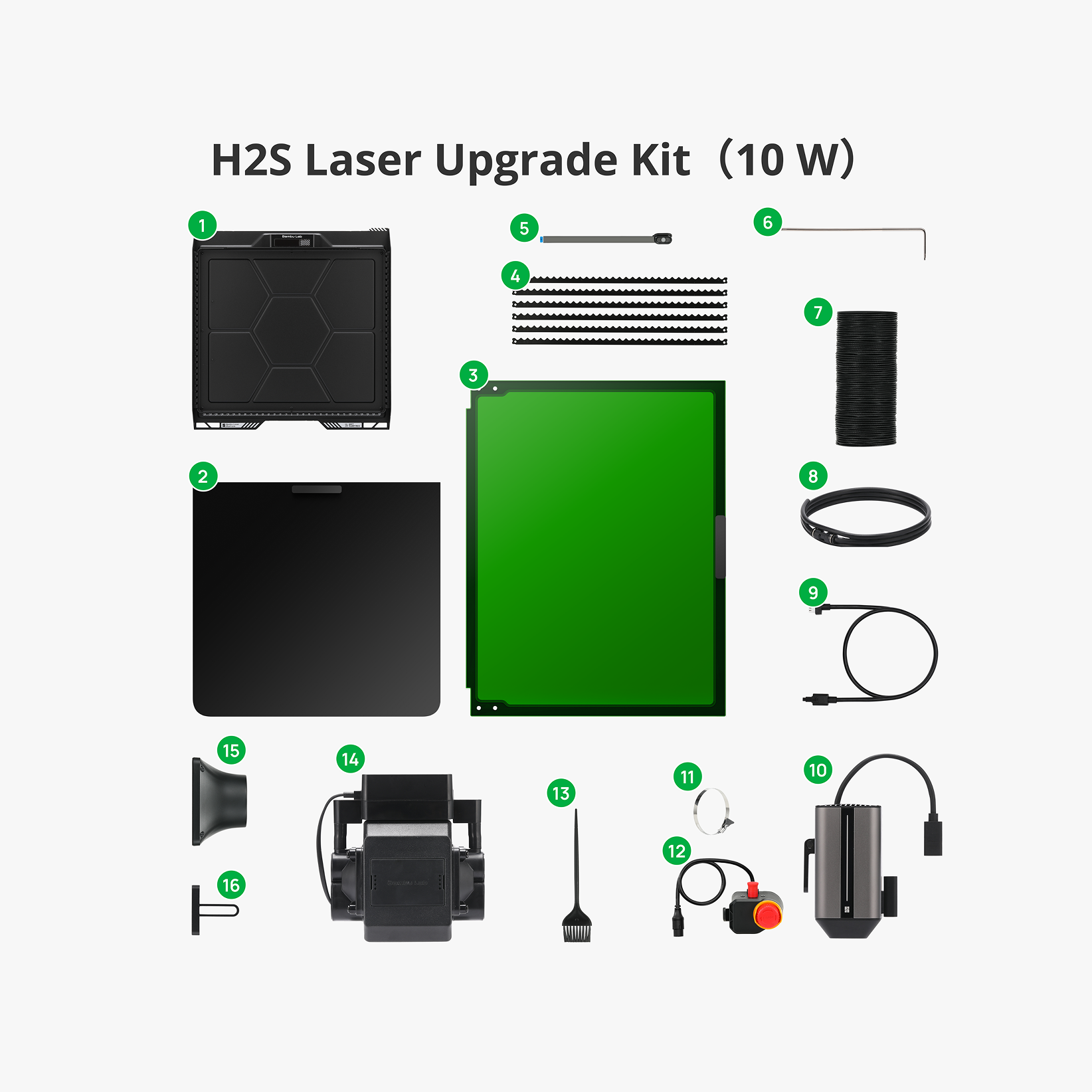

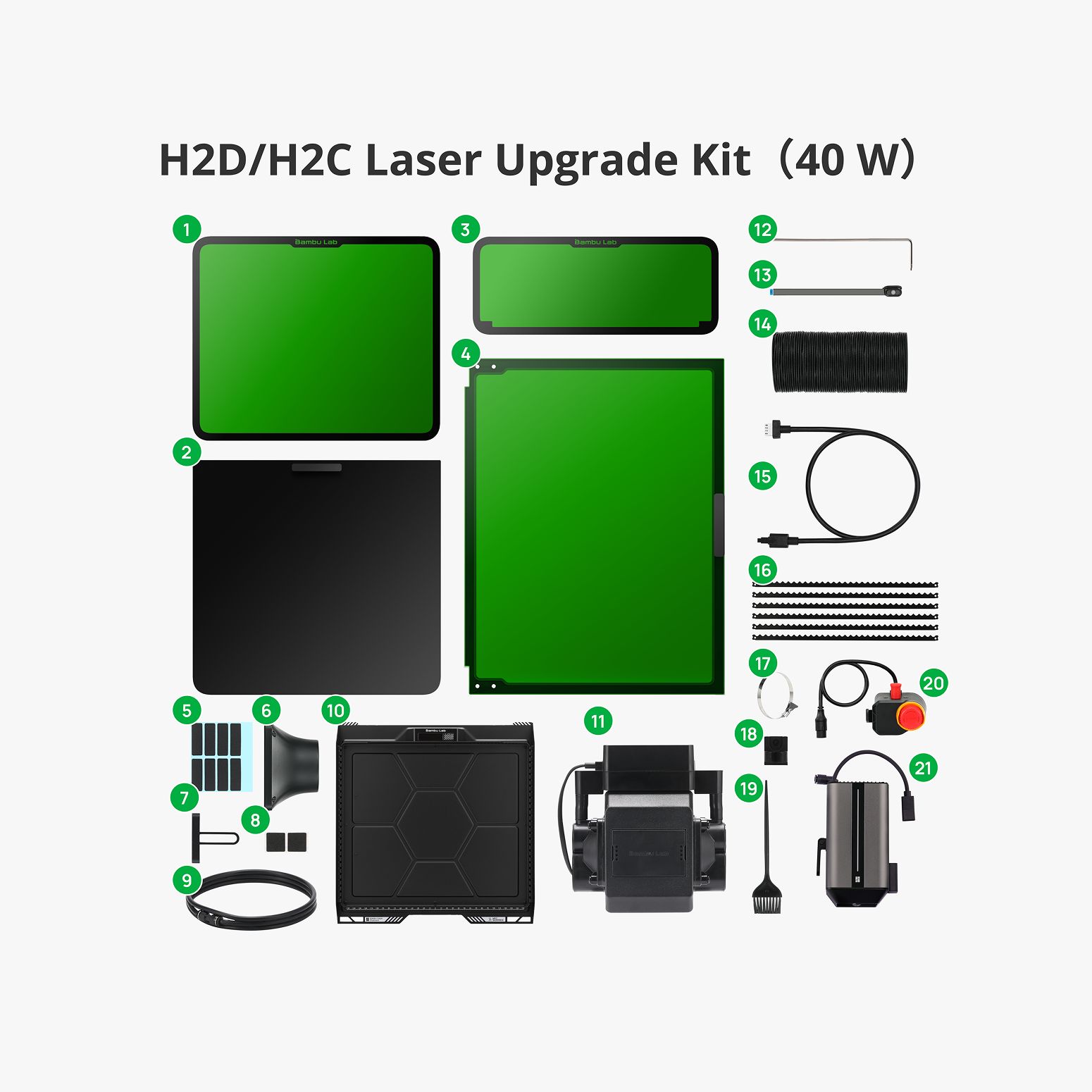

What's in the Box

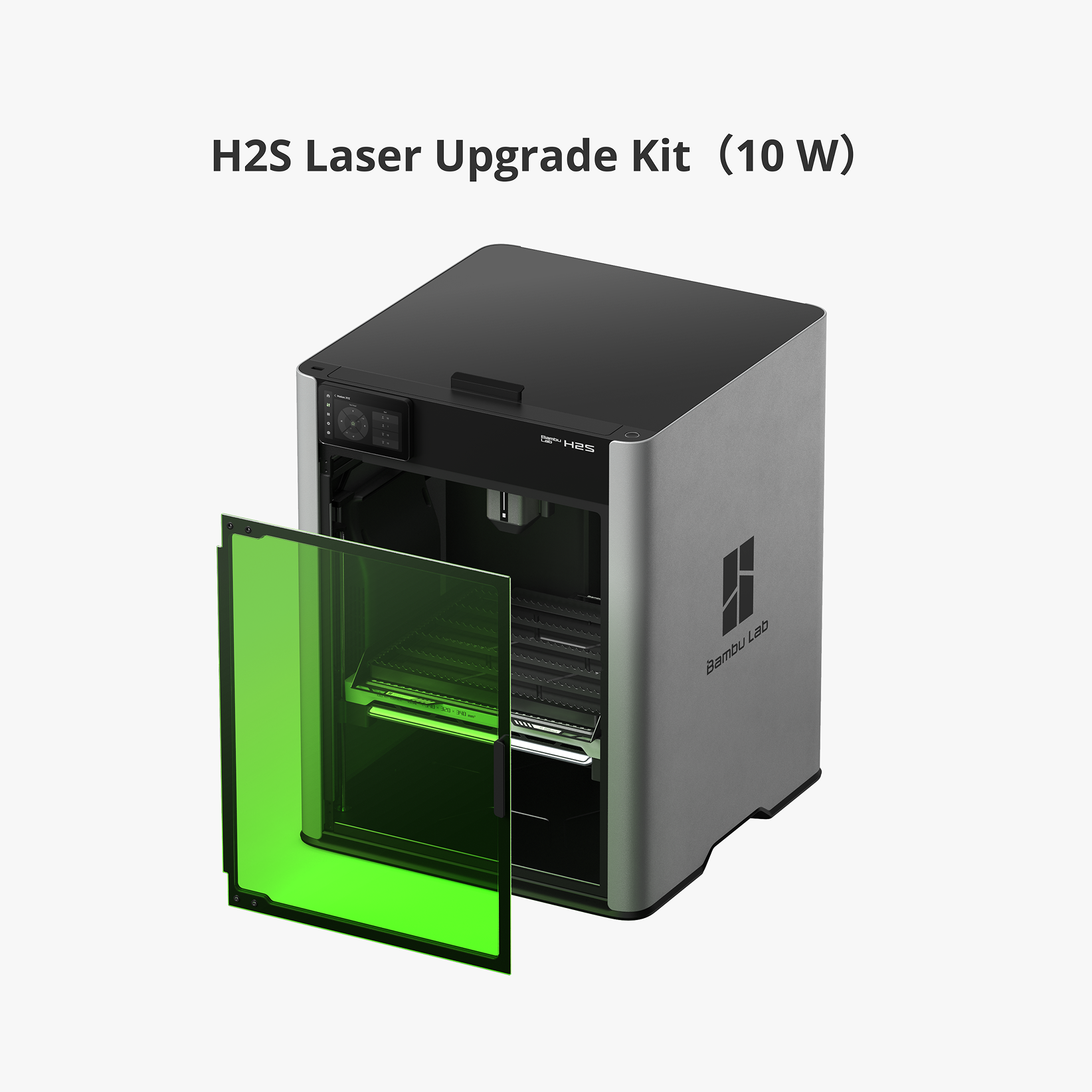

H2D/H2C Laser Upgrade Kit — 10W	H2D/H2C Laser Upgrade Kit — 40W	H2S Laser Upgrade Kit — 10W
1. Laser Safety Window (Right) – 1 pc 2. Top Laser Protection Plate – 1 pc 3. Laser Safety Window (Left) – 1 pc 4. Laser Safety Window (Front) – 1 pc 5. Sealing Sticker – 1 pc 6. Smoke Ventilation Pipe Adapter – 1 pc 7. Material Pin – 1 pc 8. Sealing Sticker – 1 pc 9. Air Assist Tube – 1 pc 10. Laser Platform – 1 pc 11. Air Pump – 1 pc 12. Allen Key H2.5 – 1 pc 13. Birdseye Camera – 1 pc 14. Smoke Ventilation Pipe – 1 pc 15. External Air Pump Cable – 1 pc 16. Slats – 6 pcs 17. Pipe Clamp – 1 pc 18. Cable Organizer – 1 pc 19. Brush – 1 pc 20. Emergency Stop Button – 1 pc 21. 10W Laser Module – 1 pc	1. Laser Safety Window (Right) – 1 pc 2. Top Laser Protection Plate – 1 pc 3. Laser Safety Window (Left) – 1 pc 4. Laser Safety Window (Front) – 1 pc 5. Sealing Sticker – 1 pc 6. Smoke Ventilation Pipe Adapter – 1 pc 7. Material Pin – 1 pc 8. Sealing Sticker – 1 pc 9. Air Assist Tube – 1 pc 10. Laser Platform – 1 pc 11. Air Pump – 1 pc 12. Allen Key H2.5 – 1 pc 13. Birdseye Camera – 1 pc 14. Smoke Ventilation Pipe – 1 pc 15. External Air Pump Cable – 1 pc 16. Slats – 6 pcs 17. Pipe Clamp – 1 pc 18. Cable Organizer – 1 pc 19. Brush – 1 pc 20. Emergency Stop Button – 1 pc 21. 40W Laser Module – 1 pc	1. Laser Platform – 1 pc 2. Top Laser Protection Plate – 1 pc 3. Laser Safety Window (Front) – 1 pc 4. Slats – 6 pcs 5. Birdseye Camera – 1 pc 6. Allen Key H2.5 – 1 pc 7. Smoke Ventilation Pipe – 1 pc 8. Air Assist Tube – 1 pc 9. External Air Pump Cable – 1 pc 10. 10W Laser Module – 1 pc 11. Pipe Clamp – 1 pc 12. Emergency Stop Button – 1 pc 13. Brush – 1 pc 14. Air Pump – 1 pc 15. Smoke Ventilation Pipe Adapter – 1 pc 16. Material Pin – 1 pc

Laser Module Only

Only Laser Module — 10W	Only Laser Module — 40W
1. 10W Laser Module – 1 pc 2. Laser Lens – 1 pc 3. User Manual – 1 pc	1. 40W Laser Module – 1 pc 2. Laser Lens – 1 pc 3. User Manual – 1 pc

Important Notice Before Purchase

The 10W and 40W laser modules are compatible only with supported laser configurations.
H2D and H2C support both 10W and 40W laser configurations.
H2S supports the 10W laser configuration and does not support the 40W laser module.
Upgrading a standard compatible machine to laser functionality requires the complete Laser Upgrade Kit, not only the laser module.
Laser processing involves high-energy laser operation. Do not leave the machine unattended during a laser task and always follow the official safety and installation requirements.

Frequently Asked Questions

What is the difference between the 10W and 40W laser modules?

Both configurations are designed for laser cutting and engraving, but the 40W module provides significantly higher cutting performance and faster processing. The 10W configuration supports engraving speeds up to 400 mm/s, while the 40W version reaches up to 1000 mm/s.

Which machines support the 40W laser module?

The 40W laser configuration is supported by compatible H2D and H2C laser upgrade configurations. H2S supports the 10W laser configuration only.

Can I purchase only the laser module?

Yes, laser modules are available separately. However, a standard machine that has not already been configured for laser operation requires the complete compatible Laser Upgrade Kit.

What materials can be processed?

Supported materials include wood, rubber, metal sheet, leather, dark acrylic, stone, and other compatible laser-processing materials. Cutting capability depends on material type, thickness, and selected laser power.

Does the kit include Air Assist and ventilation components?

Yes. The complete upgrade kits include the required Air Assist and ventilation-related components according to the selected machine configuration.
