Bambu Lab R1 Long Material & Rotary Bundle
Long Material Processing & Rotary Engraving in One Bundle
Bambu Lab R1 Long Material & Rotary Bundle expands the 55W CO₂ laser platform for both large-format work and rotary engraving. The configuration combines the R1 with the Riser Base, Automatic Conveyor Feeder, Rotary Attachment and Rotary Attachment Bracket, giving you a flexible setup for flat sheets, long panels and compatible cylindrical or round objects.
55W
CO₂ Laser Power
600 × 300 mm
Standard Working Area
Up to 3,000 mm
Long Material Processing
1000 mm/s
Maximum Processing Speed

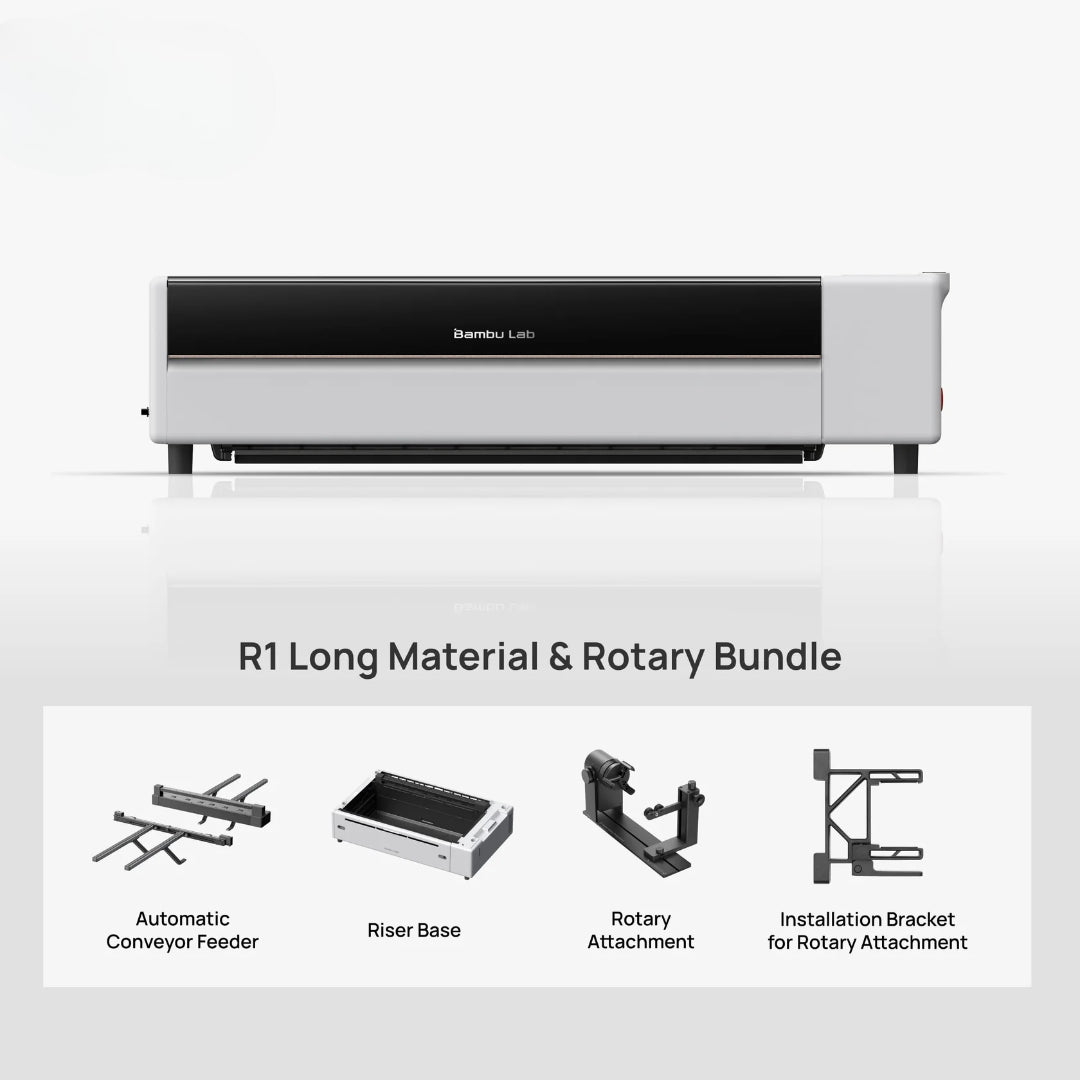

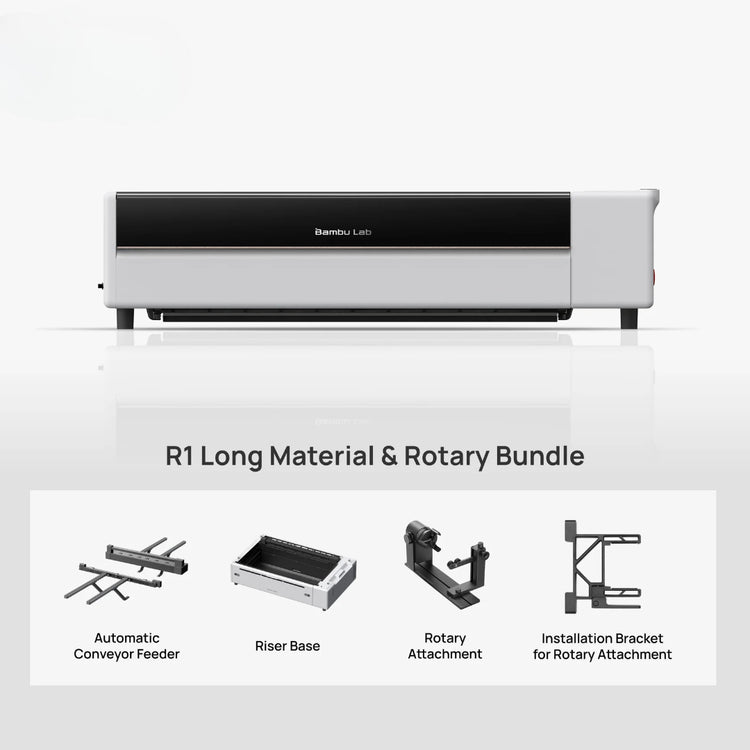

Complete Extended R1 Configuration
This bundle combines the R1 laser platform with accessories for pass-through material processing and rotary engraving.
R1
55W CO₂ Laser Cutter & Engraver
Riser Base
Expands the machine setup for extended workflows
Conveyor
Automatic Conveyor Feeder for long materials
Rotary
Rotary Attachment with dedicated mounting bracket
Go Beyond the Standard Work Area
The R1 has a standard working area of 600 × 300 mm. With the Automatic Conveyor Feeder, the system can process materials up to 3,000 mm long, extending the workflow to full-length panels and large-format projects such as signage, shelving, decorative panels and furniture components.
Rotary Attachment
Expand Engraving Beyond Flat Surfaces
The included Rotary Attachment expands the R1 workflow to compatible cylindrical and round objects. Instead of limiting artwork to a flat workpiece, the rotary system turns the object during laser processing, making it possible to create designs around items such as bottles, cups, tumblers, bowls and other suitable rotary workpieces.
Cylindrical Objects
Process compatible bottles, cups, tumblers and other cylindrical workpieces using controlled rotary movement.
Round Workpieces
Expand engraving possibilities beyond flat sheets to suitable curved and round objects.
Dedicated Bracket
The bundle includes the Rotary Attachment Bracket required for the rotary configuration.
One System. More Project Formats.
The combination of a standard work area, long-material feeding and rotary processing makes this R1 configuration suitable for projects ranging from small personalized items to furniture-scale components.
Large & Long Projects
Use pass-through feeding for long panels, signs, shelving, furniture components and other extended workpieces.
Personalized Rotary Projects
Add laser-engraved graphics, text and decorative patterns to compatible cylindrical and round objects.
One CO₂ Laser. Many Materials.
The R1 55W CO₂ laser supports cutting and engraving across a broad range of compatible materials.
Cut & Engrave
Wood, acrylic, leather, paper, fabric and other compatible materials.
Engrave
Glass, stone and coated metals expand the range of personalization and decorative applications.
Powerful 55W CO₂ Laser Cutting
R1 combines high laser output with precise motion control for demanding cutting applications and detailed engraving.
Up to 18 mm
Black Walnut Plywood
Up to 20 mm
Acrylic
Maximum cutting thickness depends on material properties, focusing lens, processing parameters and operating conditions.
Automatic Laser Alignment
R1 automates optical-path alignment that traditionally requires repeated test pulses and manual mirror adjustment. The Laser Alignment Sensor measures beam position and detects optical-path deviation while motorized mirror actuators automatically correct the alignment. The alignment process takes approximately one minute.
TriSense Positioning System
Cameras, lasers and encoders work together to determine the position of the material and design, measure surface height and track toolhead movement throughout the processing workflow.
Localization
Cameras and the Pinpoint laser help position designs accurately relative to the workpiece.
Surface Measurement
Laser distance measurement determines surface height and supports automatic focusing on flat or curved surfaces.
Motion Tracking
XY-axis encoders monitor toolhead movement in real time for controlled laser processing.
Fast, Controlled Laser Processing
Motion-control technologies adapted from Bambu Lab 3D printers help R1 maintain sharp details and consistent engraving during rapid toolhead movement.
Up to 1000 mm/s
High processing speed supports efficient cutting and engraving workflows.
Speed-Synced Laser Power
Laser power is adjusted according to movement speed to help maintain a consistent engraving appearance.
Important Safety Information
In its standard fully enclosed configuration, R1 is classified as a Class 1 laser system under IEC 60825-1. When the Riser Base or Conveyor is installed, the enclosure is no longer complete and the R1 operates as a Class 4 laser system. Appropriate CO₂ laser safety eyewear and the safety procedures specified by Bambu Lab are required for this configuration.
Bundle Configuration
| Product | Bambu Lab R1 Long Material & Rotary Bundle |
| Laser Type | CO₂ Laser |
| Laser Power | 55 W |
| Standard Working Area | 600 × 300 mm |
| Long Material Processing | Up to 3,000 mm with Automatic Conveyor Feeder |
| Maximum Processing Speed | Up to 1,000 mm/s |
| Long Material Accessories | Riser Base + Automatic Conveyor Feeder |
| Rotary Accessories | Rotary Attachment + Rotary Attachment Bracket |
| Positioning System | TriSense — cameras, lasers and encoders |
| Optical Alignment | Automatic Laser Alignment |
| Software | Bambu Suite — Windows / macOS |
Bambu Lab R1 Long Material & Rotary Bundle
Designed for a broader range of laser projects, this R1 configuration combines 55W CO₂ laser performance with automatic long-material feeding and rotary engraving capability. From long signs, panels and furniture components to personalized bottles, cups and other compatible round objects, the bundle expands the R1 platform for versatile cutting and engraving workflows.
