About
Description

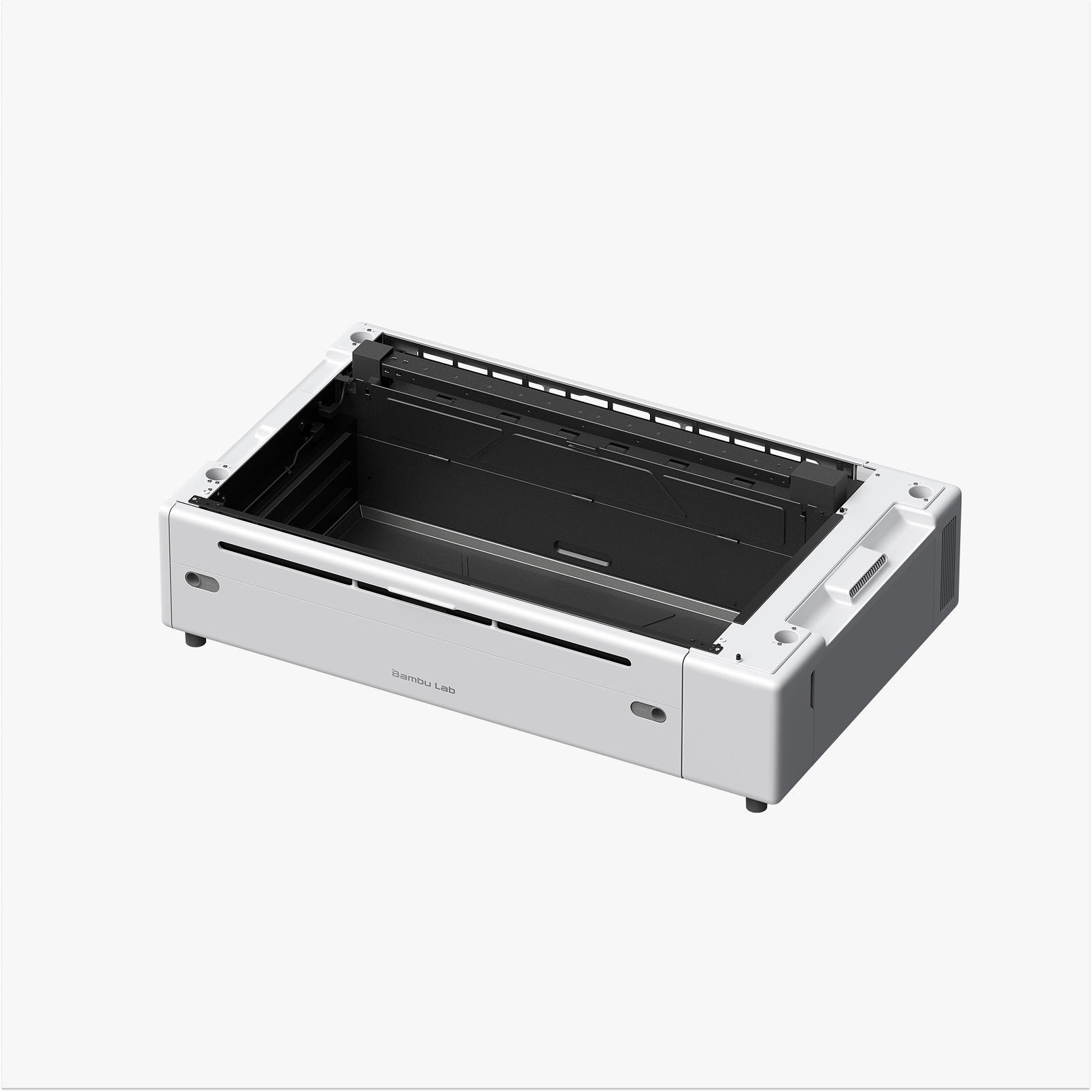

Bambu Lab R1 Accessory
Riser Base
The Bambu Lab Riser Base expands the working possibilities of the R1 by raising the machine and creating additional clearance beneath the processing area. It enables long-material pass-through projects, provides the space required for Rotary projects, and makes it possible to work with taller and thicker objects that would not normally fit inside the R1.
Bambu Lab R1
Compatible Machine
248 mm
Max. Workpiece Height
Rotary Ready
Expanded Project Options
Up to 3 m
With Conveyor

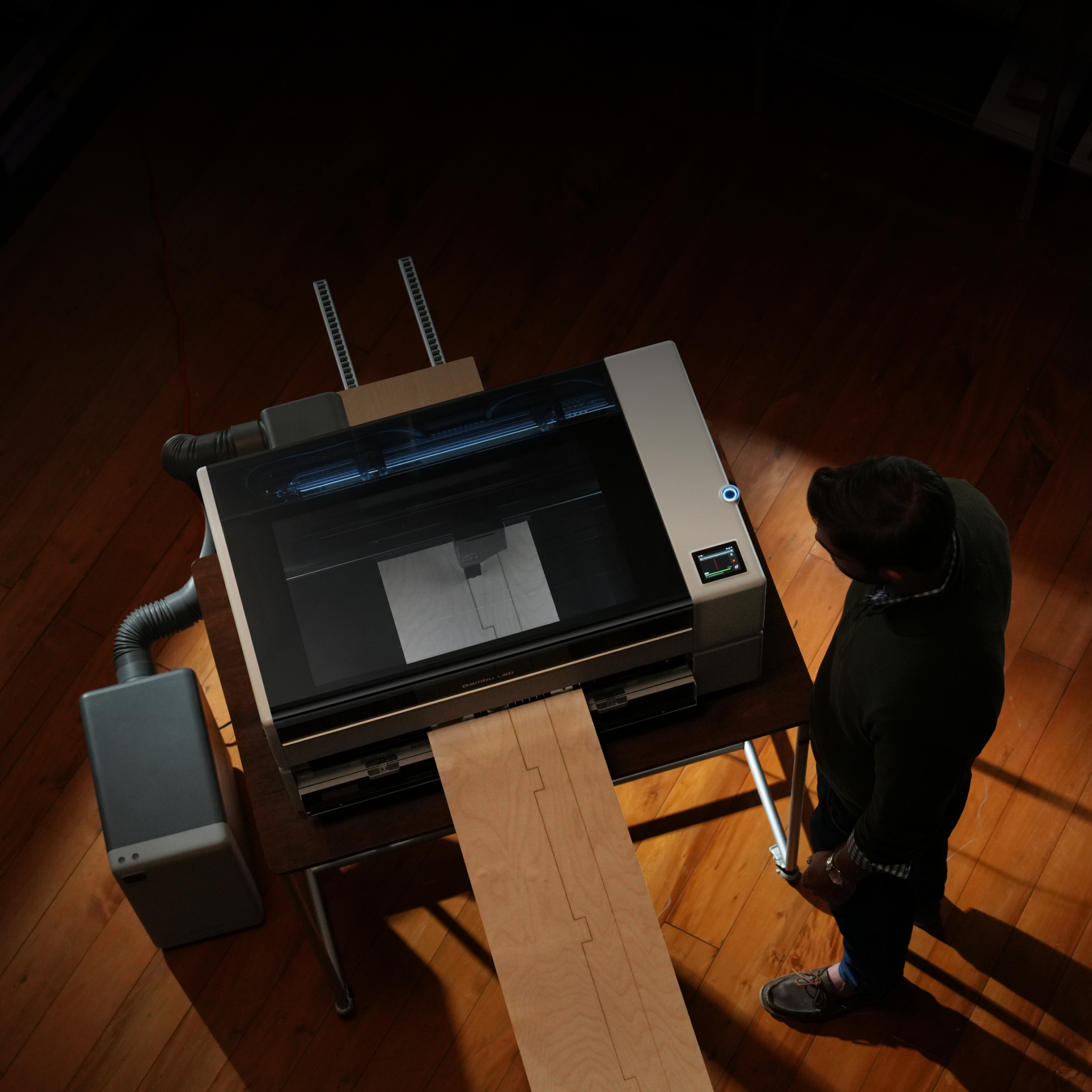

Make room for long materials
Raise the R1 to create the pass-through clearance required for the Automatic Conveyor Feeder. With the Riser Base installed, long workpieces can pass through the machine, enabling automatic processing of extended panels, signs, furniture parts and other large-format projects.
Ready for Rotary projects
The added clearance beneath the R1 creates the space required for the Rotary Attachment, allowing you to engrave cylindrical and round objects such as bowls, cups, bottles and other curved workpieces.

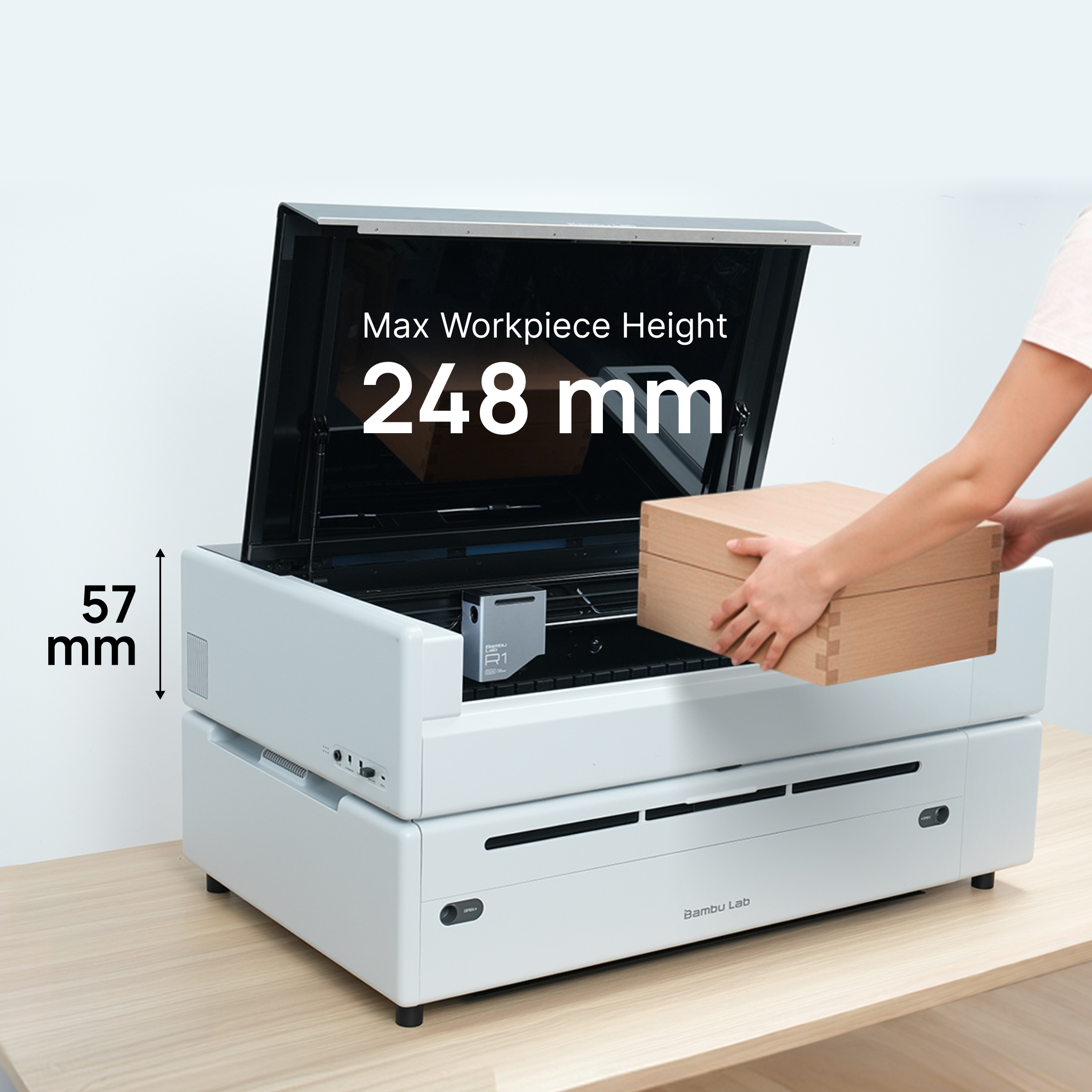

More room for thicker objects
Expand the available engraving height for thicker and bulkier workpieces. With the Riser Base installed, R1 can accommodate objects up to 248 mm high, making it easier to work with wooden boxes and other projects that would not normally fit inside the machine./p>
Parameter
| Parameter | Specification |
|---|---|
| Applicable to | Specification Bambu Lab R1 |
| Max. Workpiece Height | Specification 248 mm |
| Riser Interlock |
Specification Front door open detection: Supported Upper front door open detection: Supported Rear door open detection: Supported |
| Flame Detection Sensor | Specification 4 integrated flame sensors |
| Dimensions | Specification 940 × 560 × 234 mm |
| Product Weight | Specification 12.6 kg |
| Power Supply | Specification Powered via 8-pin cable connected to the R1 |
| Working Area |
Specification R1: 600 × 300 mm With Conveyor: 600 × 3000 mm |
In the Box
| Item | Quantity |
|---|---|
| Left Assembly | Quantity 1 |
| Right Assembly | Quantity 1 |
| Rear Assembly | Quantity 1 |
| Front Assembly | Quantity 1 |
| Bambu Bus Cable 8-pin | Quantity 1 |
| Screws | Quantity 5 |
| Allen Key | Quantity 1 |
Description
Bambu Lab R1 Accessory
Riser Base
The Bambu Lab Riser Base expands the working possibilities of the R1 by raising the machine and creating additional clearance beneath the processing area. It enables long-material pass-through projects, provides the space required for Rotary projects, and makes it possible to work with taller and thicker objects that would not normally fit inside the R1.
Bambu Lab R1
Compatible Machine
248 mm
Max. Workpiece Height
Rotary Ready
Expanded Project Options
Up to 3 m
With Conveyor
Make room for long materials
Raise the R1 to create the pass-through clearance required for the Automatic Conveyor Feeder. With the Riser Base installed, long workpieces can pass through the machine, enabling automatic processing of extended panels, signs, furniture parts and other large-format projects.
Ready for Rotary projects
The added clearance beneath the R1 creates the space required for the Rotary Attachment, allowing you to engrave cylindrical and round objects such as bowls, cups, bottles and other curved workpieces.
More room for thicker objects
Expand the available engraving height for thicker and bulkier workpieces. With the Riser Base installed, R1 can accommodate objects up to 248 mm high, making it easier to work with wooden boxes and other projects that would not normally fit inside the machine./p>
Parameter
| Parameter | Specification |
|---|---|
| Applicable to | Specification Bambu Lab R1 |
| Max. Workpiece Height | Specification 248 mm |
| Riser Interlock |
Specification Front door open detection: Supported Upper front door open detection: Supported Rear door open detection: Supported |
| Flame Detection Sensor | Specification 4 integrated flame sensors |
| Dimensions | Specification 940 × 560 × 234 mm |
| Product Weight | Specification 12.6 kg |
| Power Supply | Specification Powered via 8-pin cable connected to the R1 |
| Working Area |
Specification R1: 600 × 300 mm With Conveyor: 600 × 3000 mm |
In the Box
| Item | Quantity |
|---|---|
| Left Assembly | Quantity 1 |
| Right Assembly | Quantity 1 |
| Rear Assembly | Quantity 1 |
| Front Assembly | Quantity 1 |
| Bambu Bus Cable 8-pin | Quantity 1 |
| Screws | Quantity 5 |
| Allen Key | Quantity 1 |
Bambu Lab
by
Bambu Lab
Bambu Lab Riser Base for R1 Laser
SKU:
R1-RiserBase-Black
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Shipping calculated at checkout.
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Packaging note:
Equipment is being supplied in a manufacturer packaging
