Description
Wide voltage input range, perfect protection function, safe and reliable performance, high efficiency and energy saving, full-load conversion efficiency > 93%, precise control of charging current. This product is mainly used in the field of service robots.
| rated power: | 240W |
| input voltage: | 90-264Vac |
| input current: | ≤4A |
| operating frequency range: | 47-63Hz |
| output voltage: | 17.5-29.4Vdc |
| output current: | 8A |
| voltage regulation accuracy: | ≤±1% |
| ripple and noise: | ≤300mVp-p |
| efficiency: | ≥93% |
| protection: | input undervoltage, input overvoltage, input current limit, output overvoltage, output overcurrent, output short circuit, over temperature protection |
| operating temperature: | air temperature: -20-45℃ |
| storage temperature: | air temperature: -40-70℃ |
| EMI: | EN55022 Class B |
| IP rating: | IPX3 |
| cooling method: | natural cooling |
| dimension: | 207*92.5*40.5mm |
| certification: | CE, CB, CQC, C-tick, ETL, FCC, ICES, GS, KC, KCC, PSE, RCM, SAA SII |
| application field: | service robot |
Description
Wide voltage input range, perfect protection function, safe and reliable performance, high efficiency and energy saving, full-load conversion efficiency > 93%, precise control of charging current. This product is mainly used in the field of service robots.
| rated power: | 240W |
| input voltage: | 90-264Vac |
| input current: | ≤4A |
| operating frequency range: | 47-63Hz |
| output voltage: | 17.5-29.4Vdc |
| output current: | 8A |
| voltage regulation accuracy: | ≤±1% |
| ripple and noise: | ≤300mVp-p |
| efficiency: | ≥93% |
| protection: | input undervoltage, input overvoltage, input current limit, output overvoltage, output overcurrent, output short circuit, over temperature protection |
| operating temperature: | air temperature: -20-45℃ |
| storage temperature: | air temperature: -40-70℃ |
| EMI: | EN55022 Class B |
| IP rating: | IPX3 |
| cooling method: | natural cooling |
| dimension: | 207*92.5*40.5mm |
| certification: | CE, CB, CQC, C-tick, ETL, FCC, ICES, GS, KC, KCC, PSE, RCM, SAA SII |
| application field: | service robot |
PUDU
by
PUDU

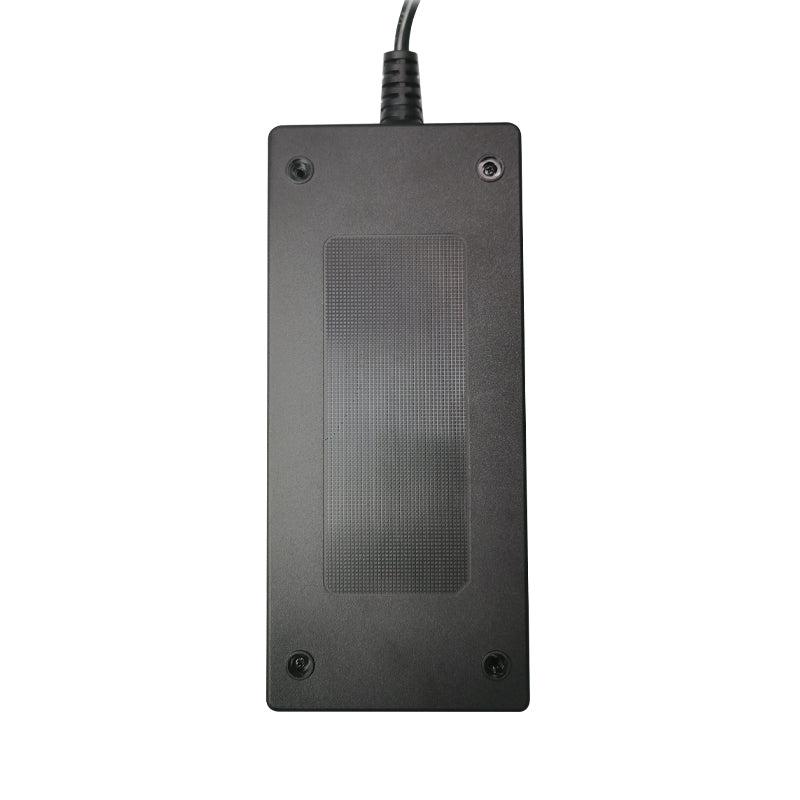

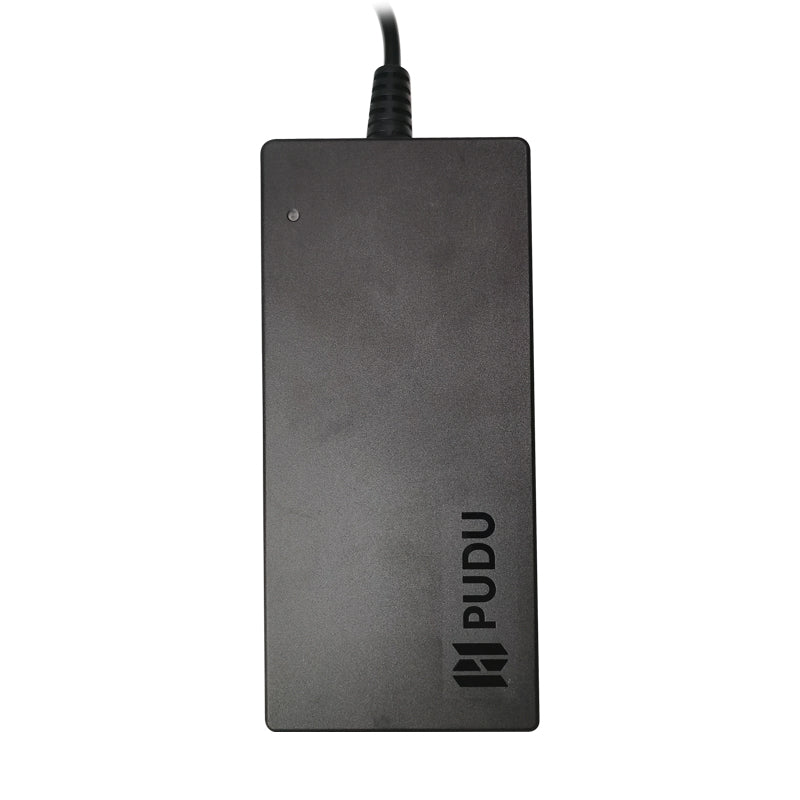

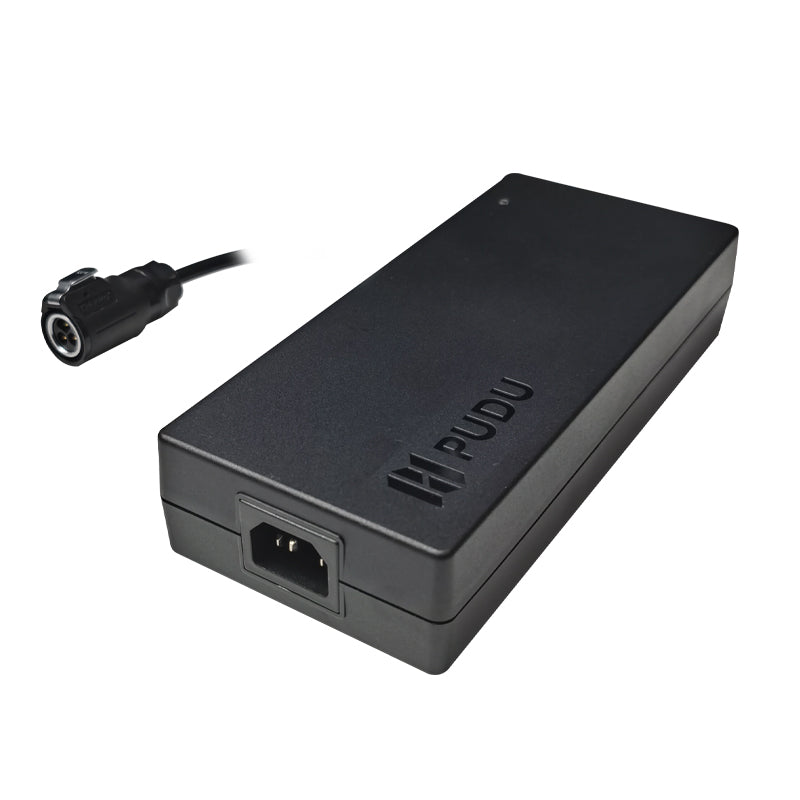

Battery Charger HK240A-CF
