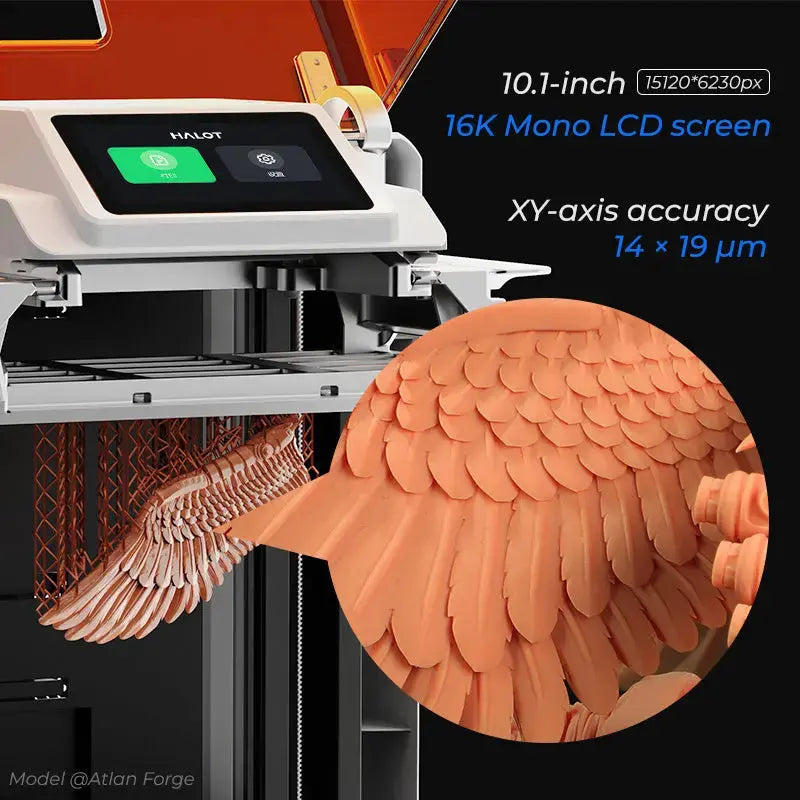

10.1-inch 16K Mono LCD
The 15120 × 6230 display and 14 × 19 μm pixel size reproduce small details, sharp edges and fine surface textures.
About
Description

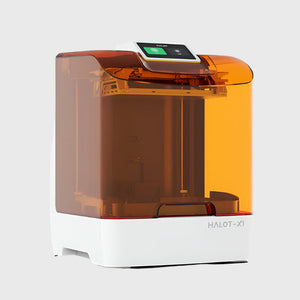

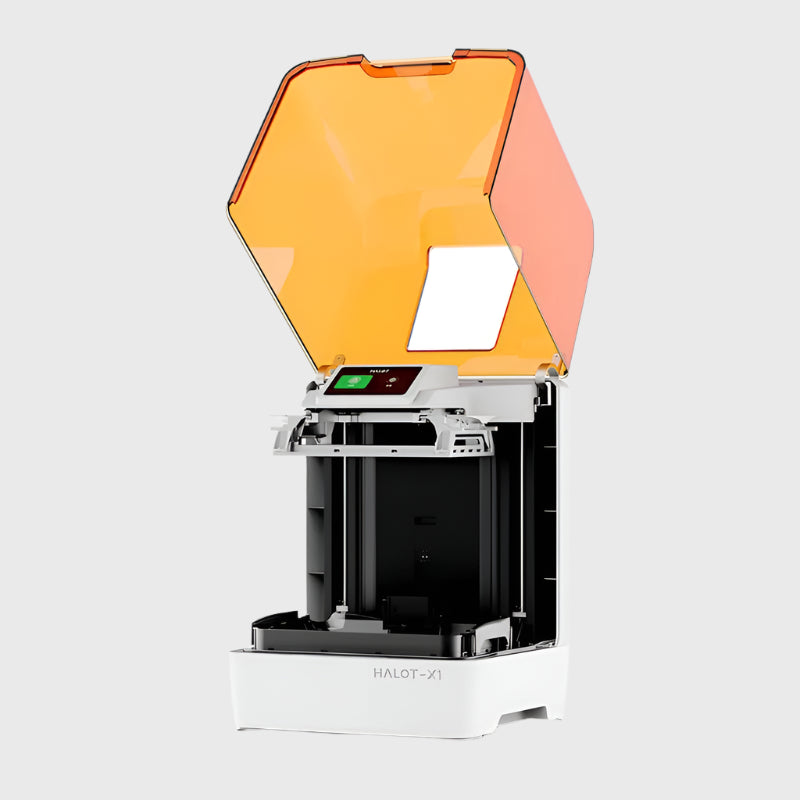

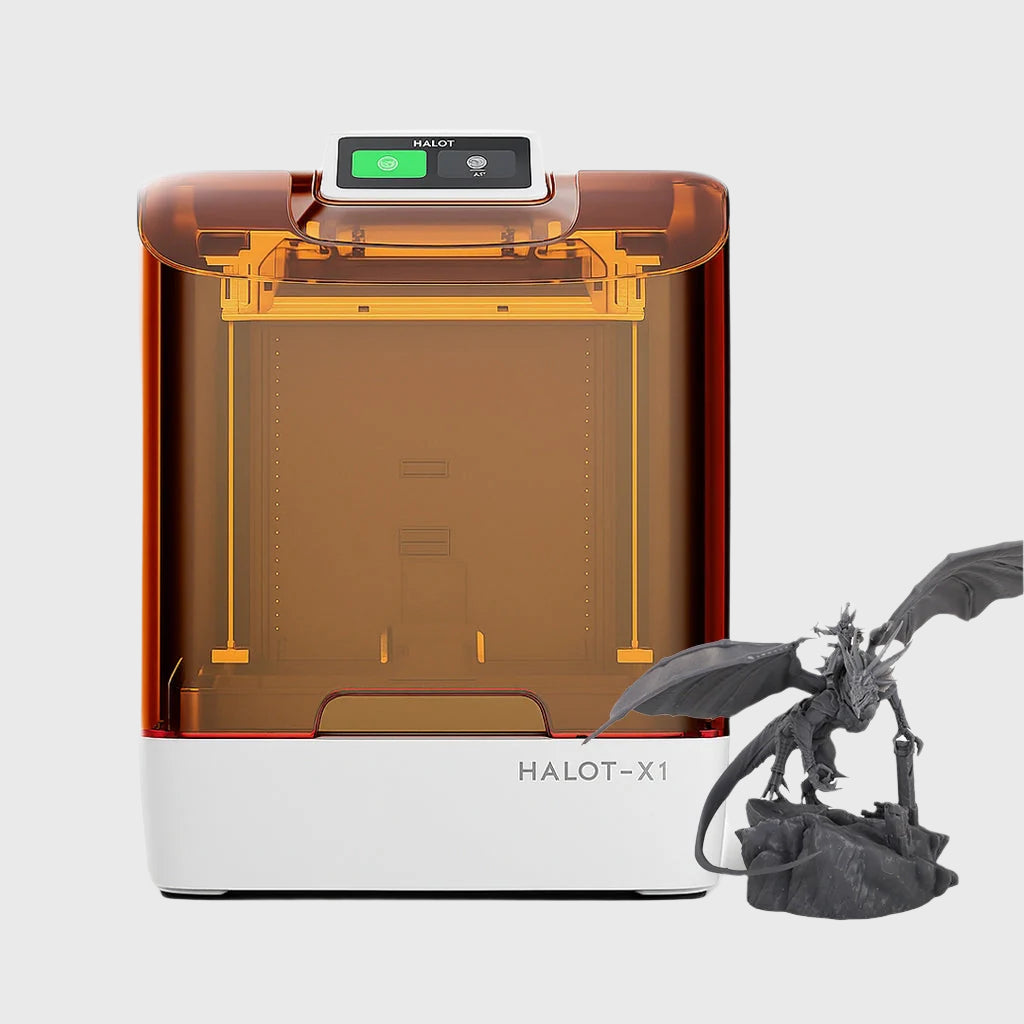

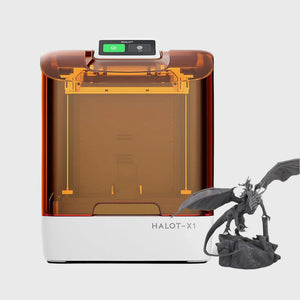

16K Resin 3D Printing System

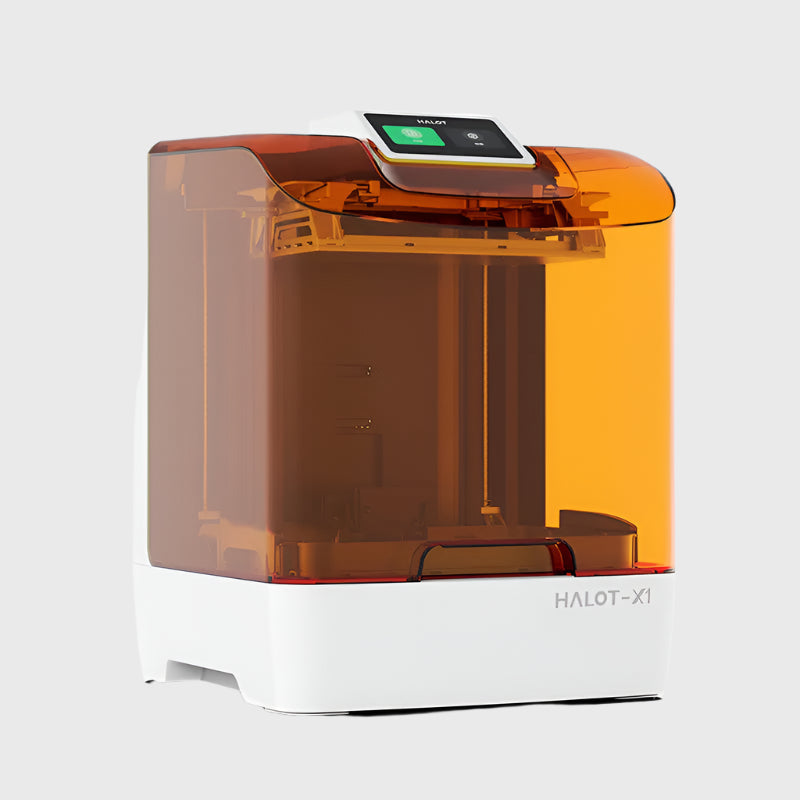

Creality HALOT-X1 Combo
A leveling-free resin 3D printer with a 10.1-inch 16K monochrome LCD, a new top-down motion structure, intelligent zoned exposure and the AFU automatic resin management system included in the Combo configuration.
16K
15120 × 6230 resolution
14 × 19 μm
Pixel size
170 mm/h
Maximum print speed

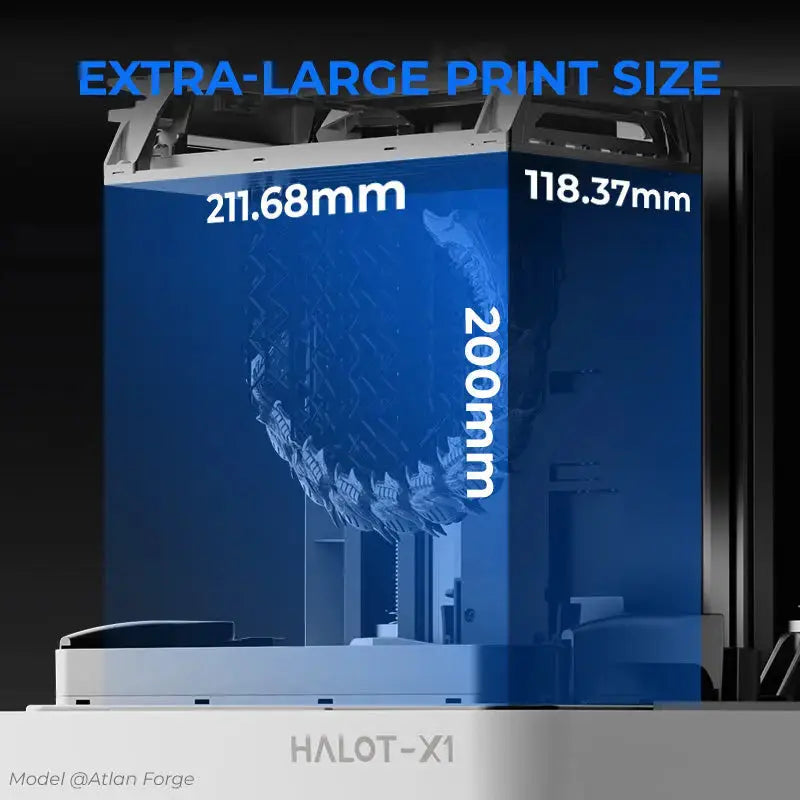

211.68 × 118.37 × 200 mm
Build volume
Key Features
High Detail Without Complicated Setup
HALOT-X1 combines fine 16K resolution with factory-prepared, leveling-free operation and a redesigned motion structure intended to improve stability and reduce visible layer lines.
True Leveling-Free Operation
The printer is prepared for use without the routine manual leveling process required by many conventional resin printers.

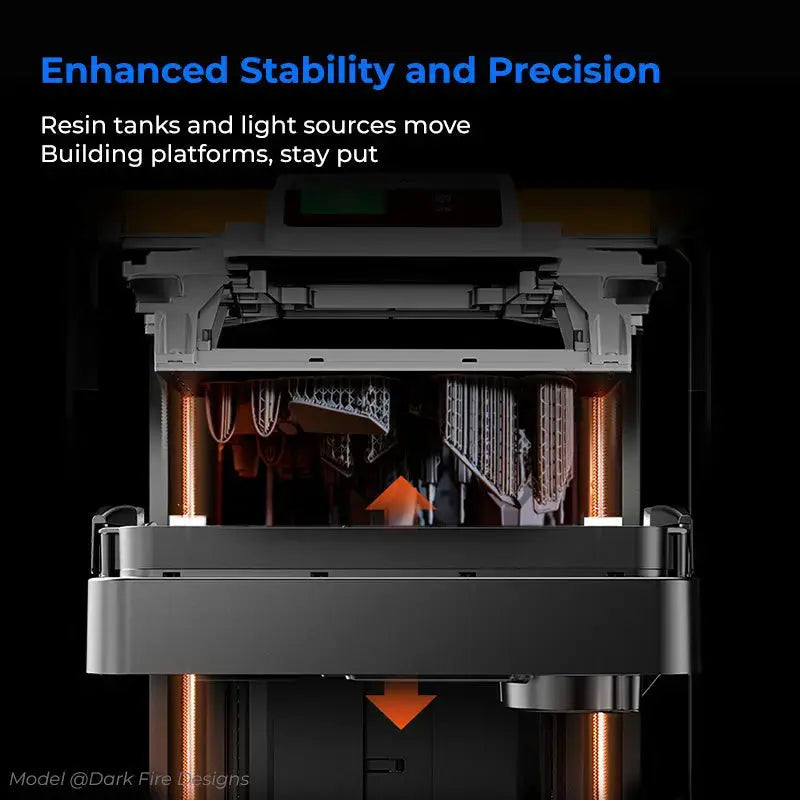

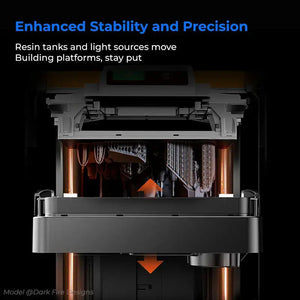

New Motion Structure
The build plate remains stationary while the optical module and resin vat move vertically, supporting stable layer formation.

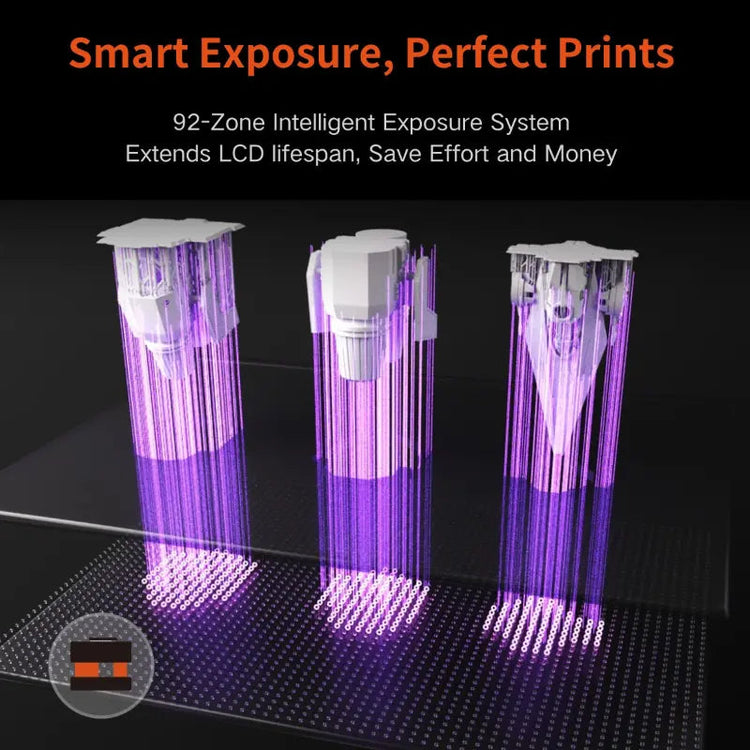

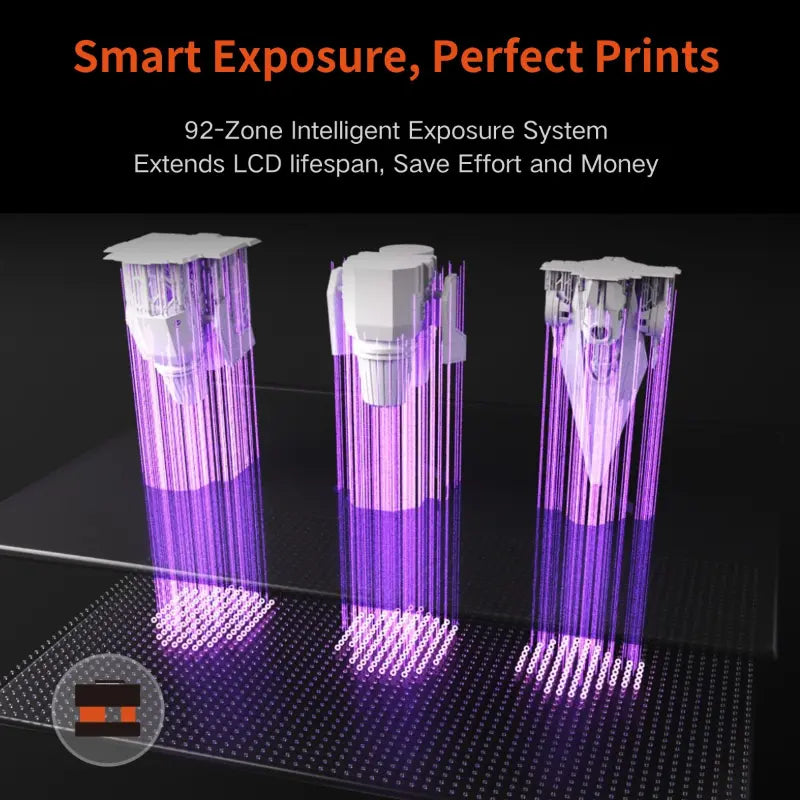

92-Zone Intelligent Exposure
The light source is divided into 92 controlled zones and activates only where exposure is required.

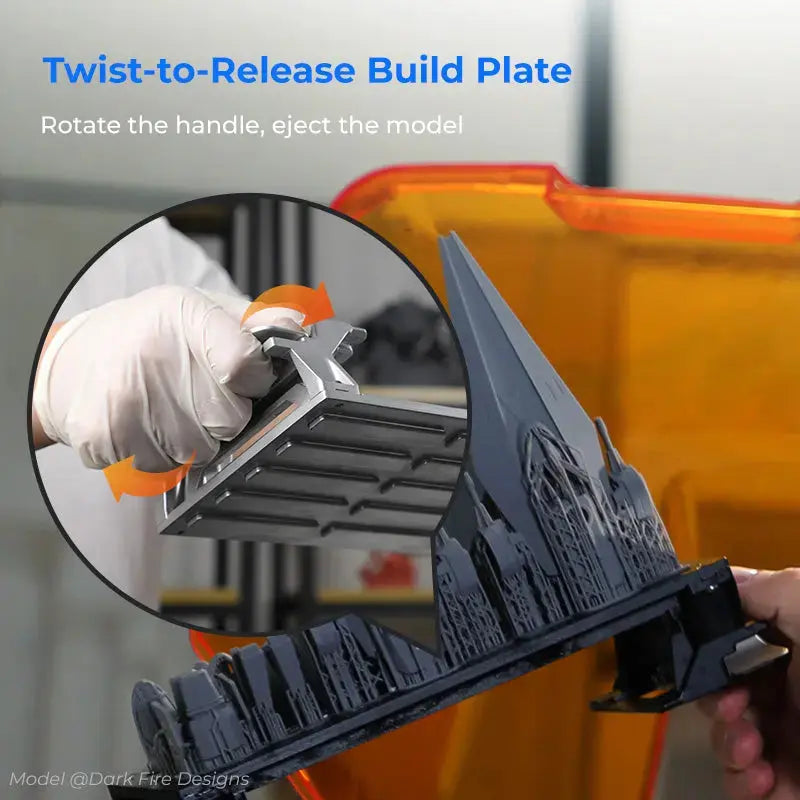

Quick-Release Build Plate
The twist-to-release mechanism helps remove the build plate and models with less manual scraping.

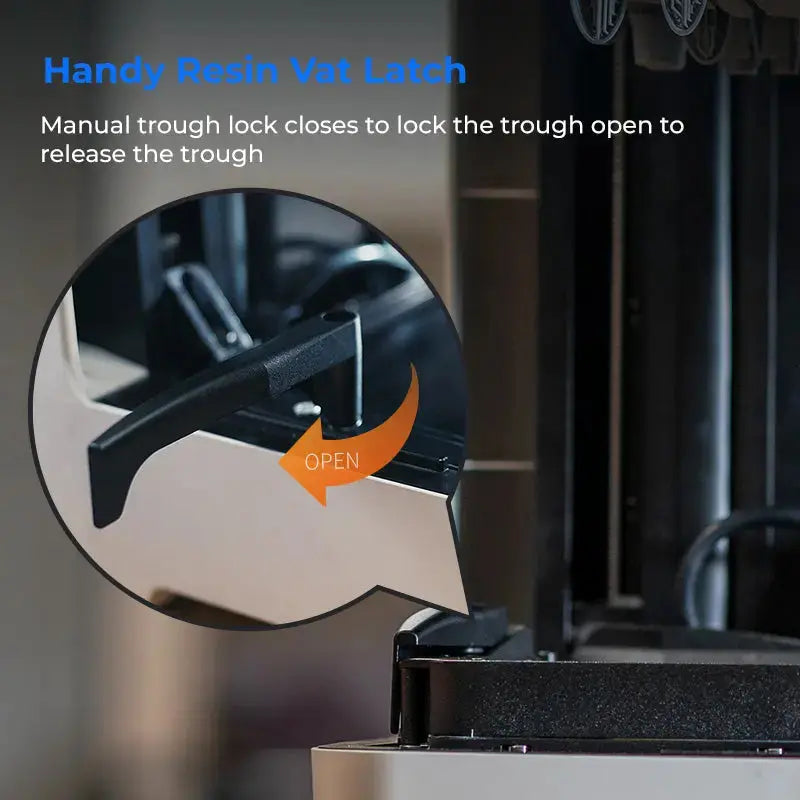

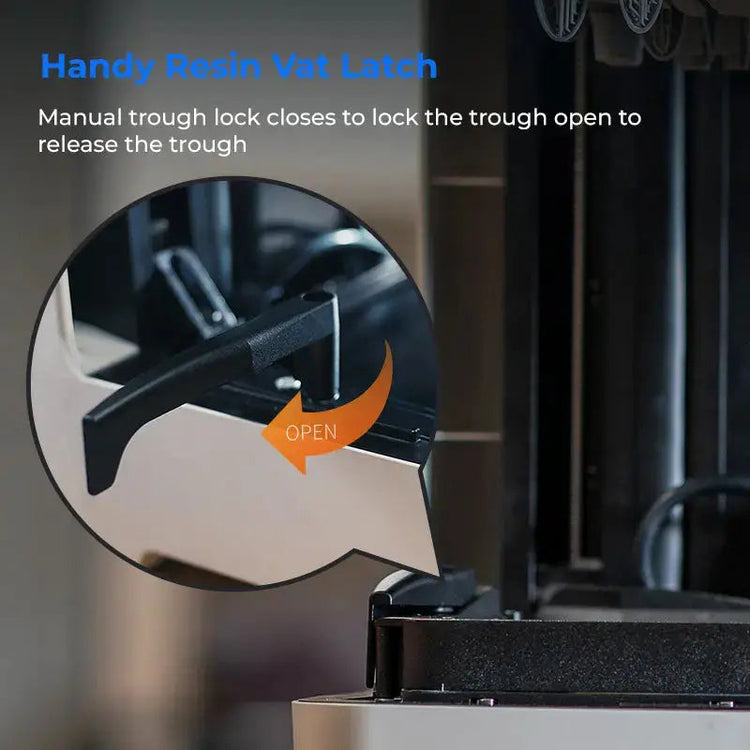

Quick-Release Resin Vat
A latch mechanism simplifies resin-vat removal for maintenance, resin changes and cleaning.

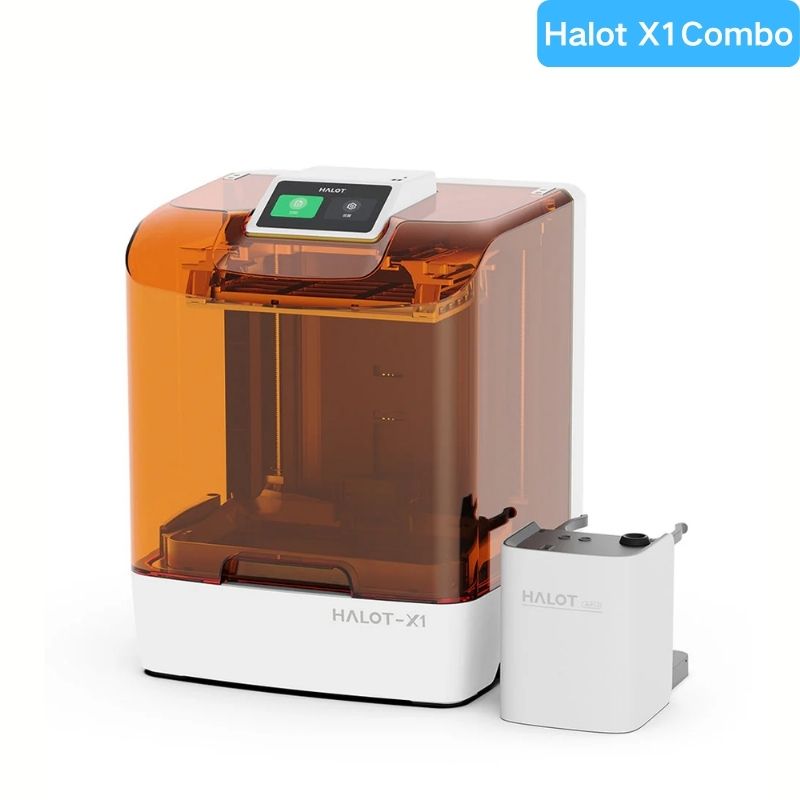

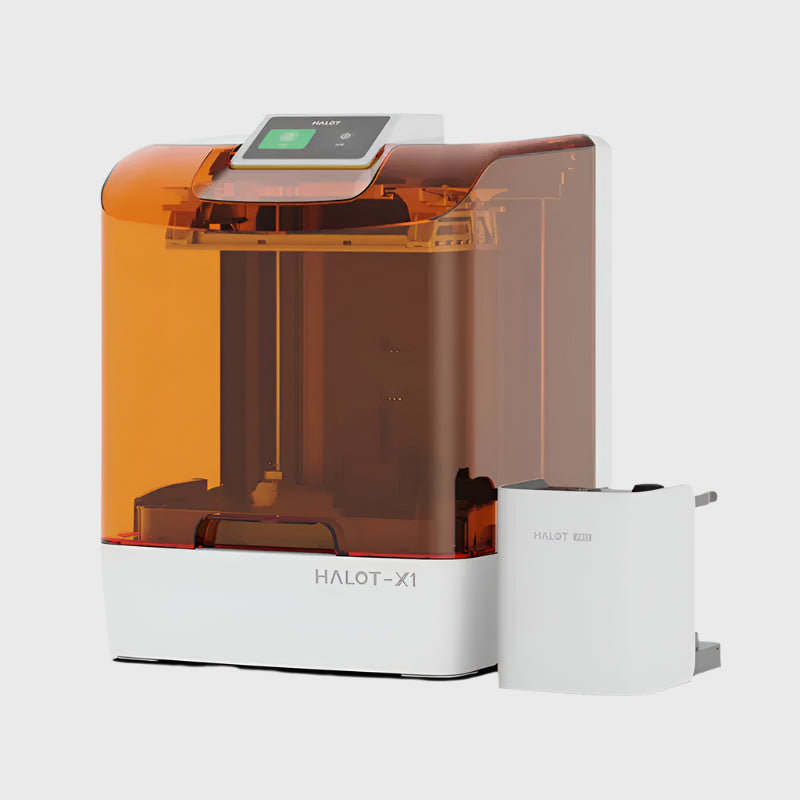

Combo Configuration
AFU Automatic Resin Management
The Combo version includes the Auto Feed Unit. It supports automatic resin feeding, resin-level monitoring and RFID identification for compatible official Creality resin bottles. Preset parameters can be retrieved for a more streamlined workflow.
Resin handling
Automatic feed support
Material identification
RFID support
Workflow
Cloud parameter retrieval
Technical Specifications
HALOT-X1 Combo
Printing System
- Printing Technology
- LCD resin printing
- LCD
- 10.1-inch 16K monochrome LCD
- Resolution
- 15120 × 6230
- Pixel Size
- 14 × 19 μm
- Build Volume
- 211.68 × 118.37 × 200 mm
- Maximum Print Speed
- 170 mm/h
Accuracy & Exposure
- Z-Axis Accuracy
- 0.01 mm
- Layer Thickness
- 0.01–0.20 mm
- Exposure System
- 92-zone intelligent exposure
- Light Source
- Honeycomb matrix light source
- Exposure Intensity
- 6500 ±10% μW/cm²
- Supported Resin
- 405 nm UV-curing resin
Dimensions & Interface
- Machine Size
- 344 × 331 × 434 mm
- Package Size
- 430 × 420 × 535 mm
- Net Weight
- 12.93 kg
- Gross Weight
- 16.19 kg
- Touchscreen
- 3.98-inch capacitive touchscreen
Software & Connectivity
- Slicing Software
- HALOT BOX and CHITUBOX
- Connectivity
- USB and Wi-Fi
- AFU
- Included with Combo configuration
- RFID Identification
- Supported with compatible official resin
Package Contents
What's Included
HALOT-X1 Printer
16K resin 3D printer
AFU
Auto Feed Unit for the Combo configuration
Build Plate
Quick-release platform
Resin Vat
Quick-release resin tank
Scrapers & Filters
Basic resin-printing accessories
USB Drive & Documentation
Files and user materials
Official Creality Product Overview
The following official product image is intentionally displayed in its original proportions. No fixed height, cover mode or clipping is applied.
Because the official image is a very tall product overview graphic,
the page will scroll through the full image instead of cropping it.
