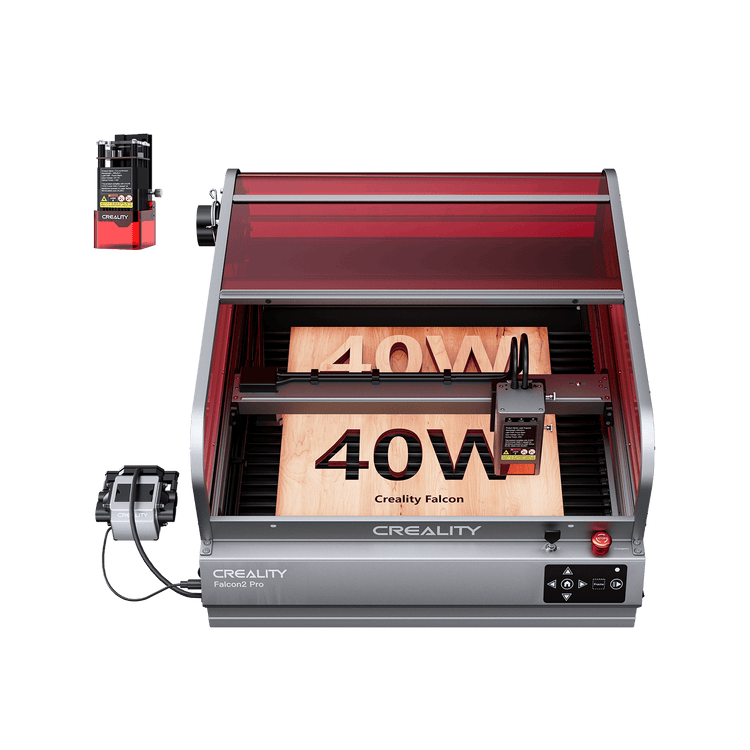

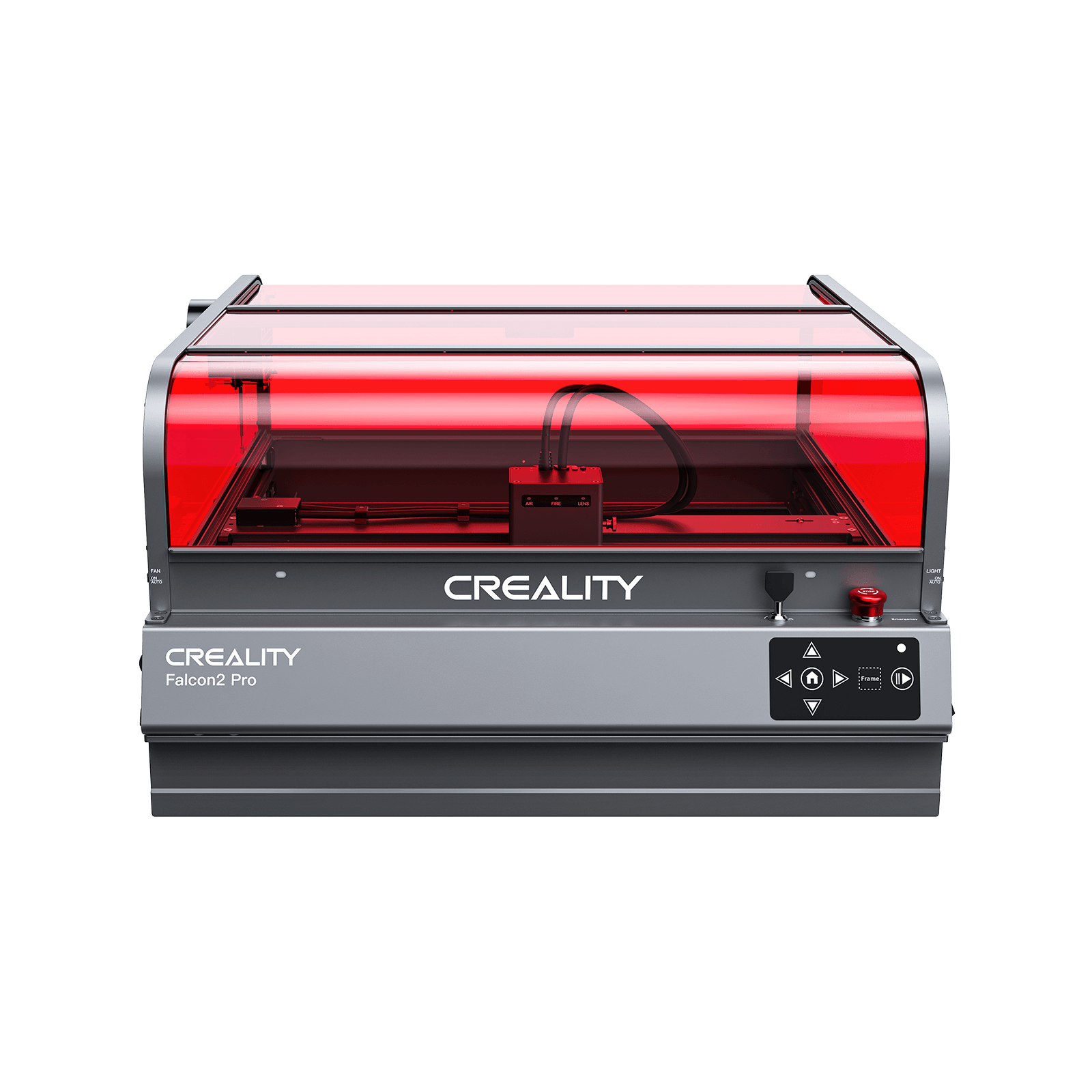

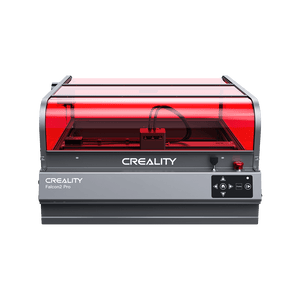

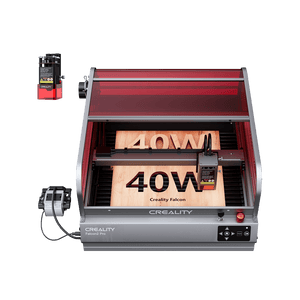

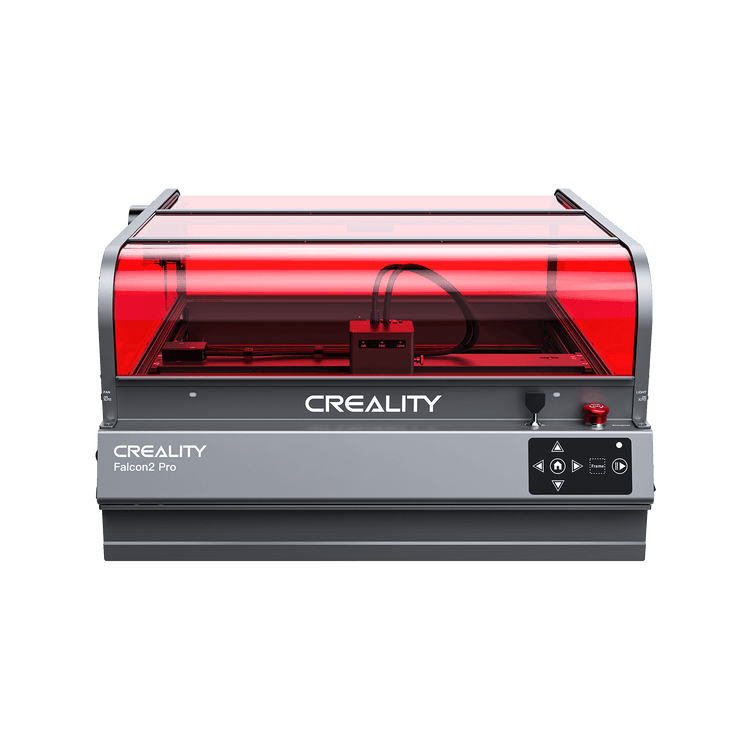

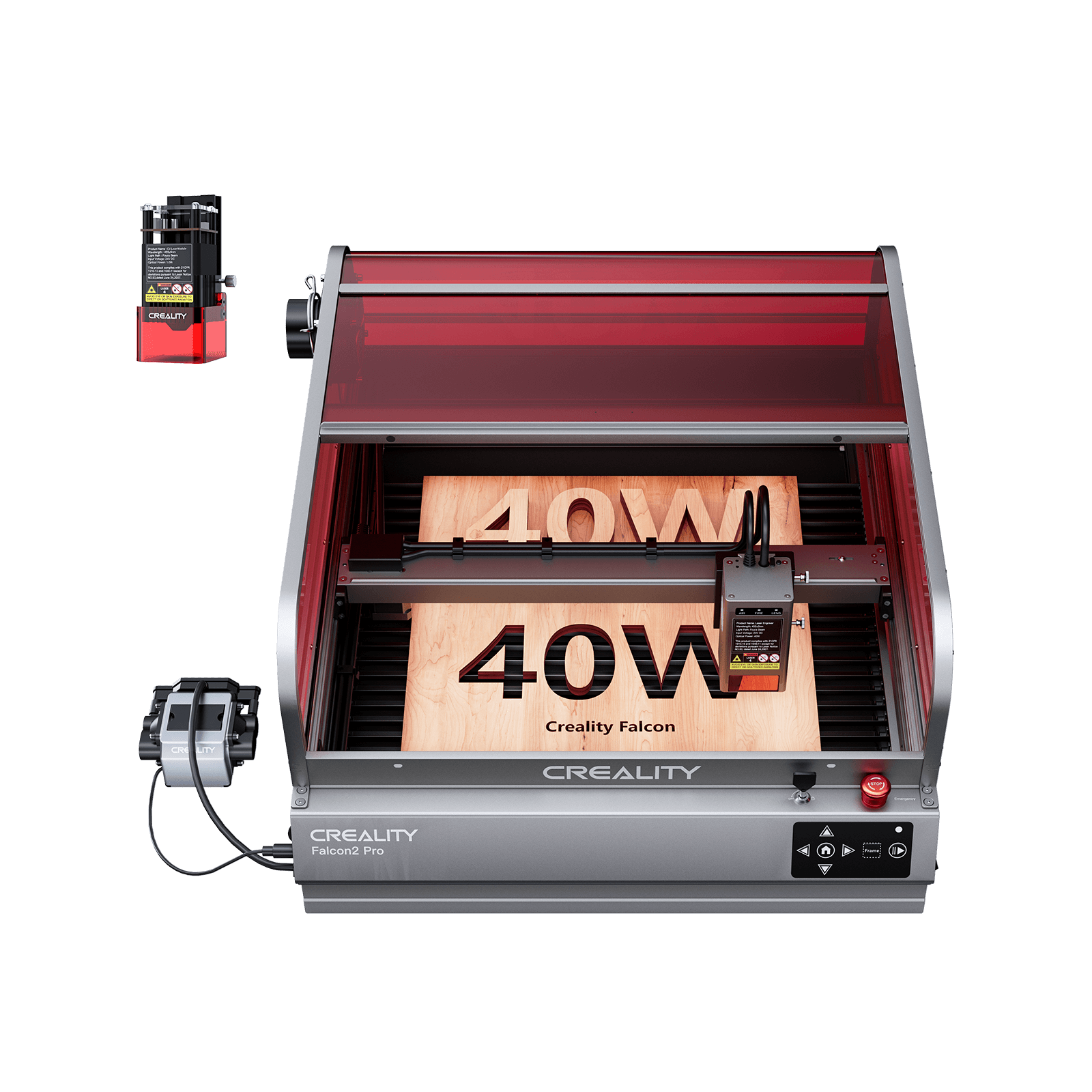

Creality Falcon2 Pro S 40W Enclosed Laser Engraver & Cutter
Key Features

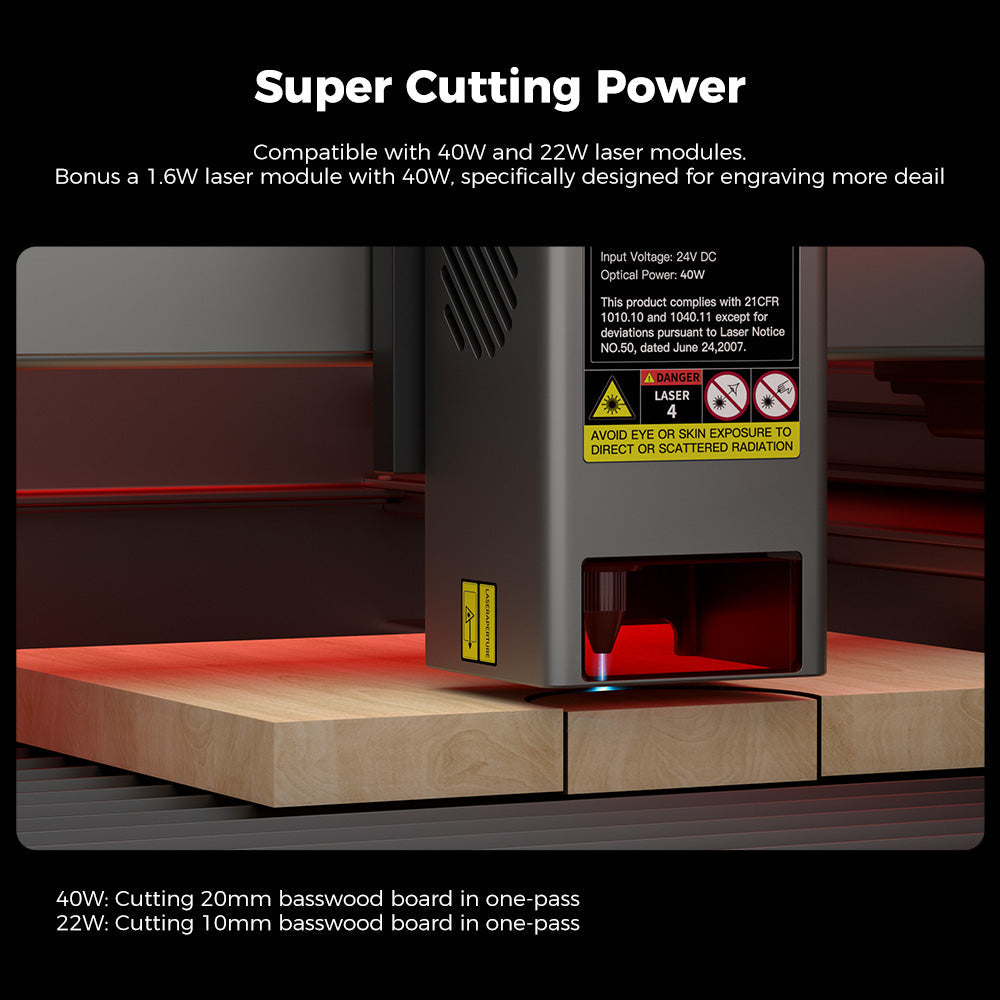

- 40W & 60W Bonus with 1.6W Laser Module - High power output for efficient cutting
- Cutting Power up to 60W - Cuts through 22mm wood, 30mm black acrylic, 0.2mm stainless steel in one pass
- Adjustable Beam - Versatility and precision for different materials
- FDA Class 1 Safety Certification - Safe for home use with enclosed design

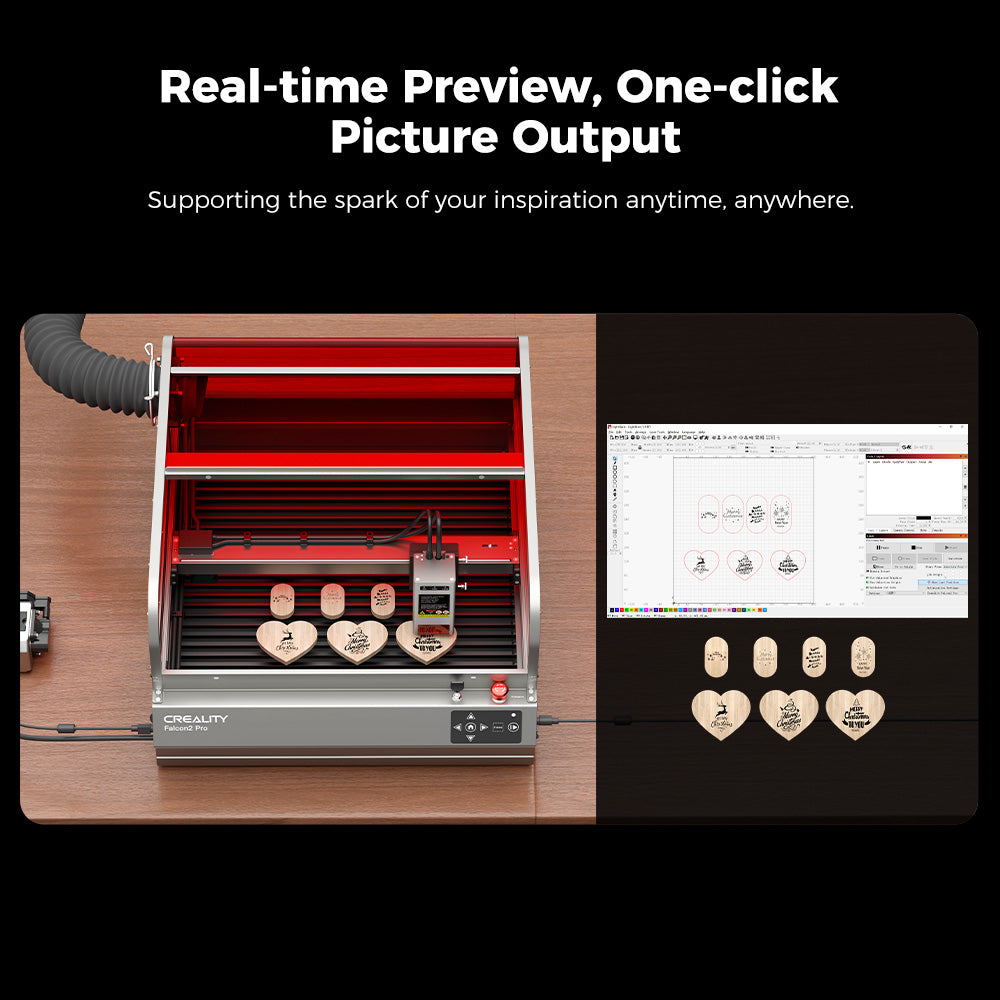

- Built-in Camera for Auto-positioning - Real-time preview and batch processing

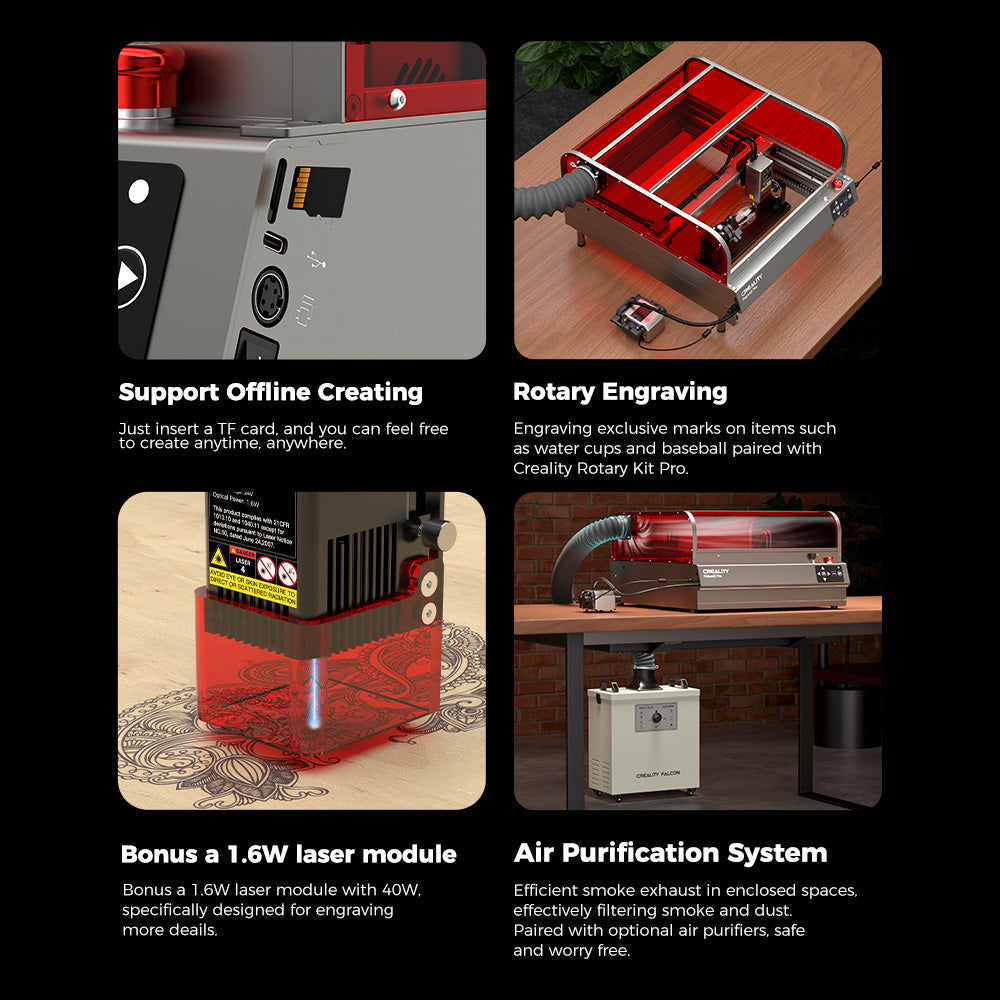

- Integrated Air Assist - Cleaner cuts with adjustable airflow
- Unleash Creative Potential - Works with diverse materials including wood, acrylic, metal, leather, glass
Product Specifications
Product Name |
Creality Falcon2 Pro 22W / 40W / 60W |
Machine Power (MAX) |
120W / 240W / 360W |
Optical Power |
22W / 40W+1.6W / 60W+1.6W |
Product Size |
664 × 570 × 328.4 mm |
Equipment Weight |
18.04 kg / 18.56 kg / 19.51 kg |
Engraving Area |
400 × 415 mm (22W/40W) / 400 × 400 mm (60W) |
Laser Source |
Diode Laser |
Laser Spot |
0.08×0.1mm / 0.08×0.12mm / 0.08×0.15mm |
Laser Wavelength |
455 ± 5 nm |
Laser Class |
Class 1 (FDA) |
Input Voltage |
100-240V ~ 50-60Hz |
Operating Temperature |
5°C - 35°C |
Laser Engraving Software |
LightBurn, LaserGRBL, Falcon Design Space |
Operating System |
Windows / MacOS |
Supported File Formats |
JPG, PNG, BMP, SVG, DXF, etc. |
Supported Materials |
Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, metal |
Certifications |
IEC60825, FDA, CE, ROHS, FCC, UKCA, UL Report, PSE |
Comparison: Falcon2 Pro Series
Product |
22W |
40W |
60W |
|---|---|---|---|
Laser Source |
Diode Laser |
Diode Laser |
Diode Laser |
Machine Power (MAX) |
120W |
240W |
360W |
Laser Spot |
0.08×0.1mm |
0.08×0.12mm |
0.08×0.15mm |
Working Area |
400×415mm |
400×415mm |
400×400mm |
Cutting Ability (one pass) |
10mm basswood 10mm acrylic |
20mm basswood 30mm acrylic 0.15mm metal sheet |
22mm basswood 30mm acrylic 0.2mm metal sheet |
Description
Creality Falcon2 Pro S 40W Enclosed Laser Engraver & Cutter
Key Features
- 40W & 60W Bonus with 1.6W Laser Module - High power output for efficient cutting
- Cutting Power up to 60W - Cuts through 22mm wood, 30mm black acrylic, 0.2mm stainless steel in one pass
- Adjustable Beam - Versatility and precision for different materials
- FDA Class 1 Safety Certification - Safe for home use with enclosed design
- Built-in Camera for Auto-positioning - Real-time preview and batch processing
- Integrated Air Assist - Cleaner cuts with adjustable airflow
- Unleash Creative Potential - Works with diverse materials including wood, acrylic, metal, leather, glass
Product Specifications
Product Name |
Creality Falcon2 Pro 22W / 40W / 60W |
Machine Power (MAX) |
120W / 240W / 360W |
Optical Power |
22W / 40W+1.6W / 60W+1.6W |
Product Size |
664 × 570 × 328.4 mm |
Equipment Weight |
18.04 kg / 18.56 kg / 19.51 kg |
Engraving Area |
400 × 415 mm (22W/40W) / 400 × 400 mm (60W) |
Laser Source |
Diode Laser |
Laser Spot |
0.08×0.1mm / 0.08×0.12mm / 0.08×0.15mm |
Laser Wavelength |
455 ± 5 nm |
Laser Class |
Class 1 (FDA) |
Input Voltage |
100-240V ~ 50-60Hz |
Operating Temperature |
5°C - 35°C |
Laser Engraving Software |
LightBurn, LaserGRBL, Falcon Design Space |
Operating System |
Windows / MacOS |
Supported File Formats |
JPG, PNG, BMP, SVG, DXF, etc. |
Supported Materials |
Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, metal |
Certifications |
IEC60825, FDA, CE, ROHS, FCC, UKCA, UL Report, PSE |
Comparison: Falcon2 Pro Series
Product |
22W |
40W |
60W |
|---|---|---|---|
Laser Source |
Diode Laser |
Diode Laser |
Diode Laser |
Machine Power (MAX) |
120W |
240W |
360W |
Laser Spot |
0.08×0.1mm |
0.08×0.12mm |
0.08×0.15mm |
Working Area |
400×415mm |
400×415mm |
400×400mm |
Cutting Ability (one pass) |
10mm basswood 10mm acrylic |
20mm basswood 30mm acrylic 0.15mm metal sheet |
22mm basswood 30mm acrylic 0.2mm metal sheet |
Creality
by
Creality
Creality Falcon2 Pro S 40W Enclosed Laser Engraver & Cutter
- Regular price
- $1,349.00
- Sale price
- $1,349.00
- Regular price
-
Shipping calculated at checkout.
