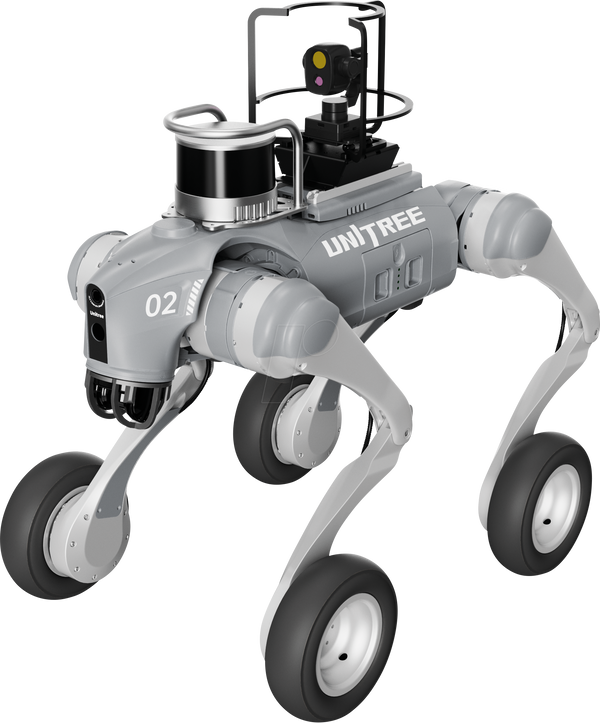

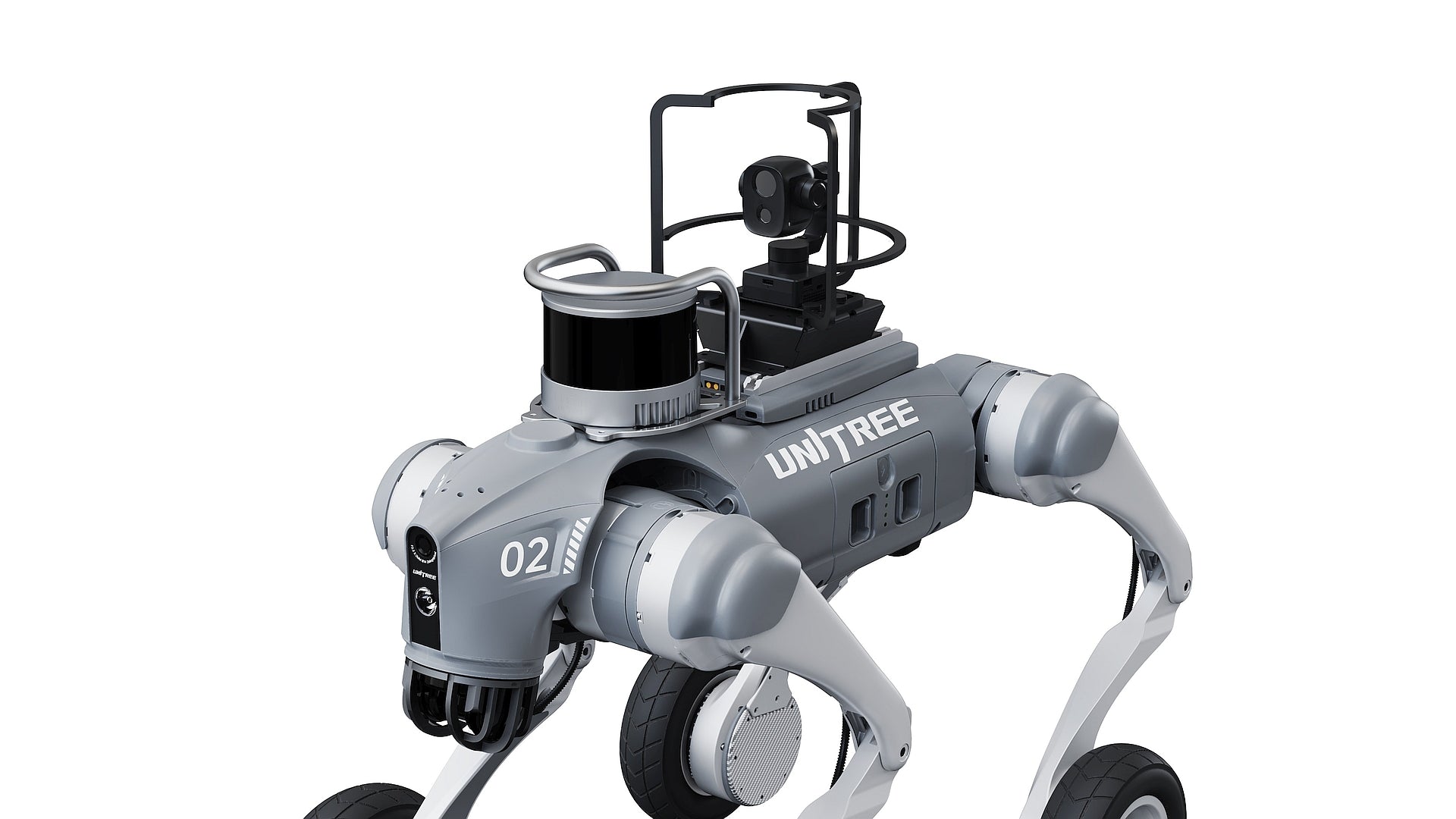

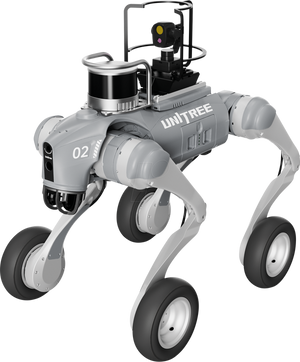

Unitree Go2-W Inspection Package
Standard Ultra-wide 4D LIDAR upgrades Recognition system by 200%.
Go2 features with Unitree's self-developed 4D LIDAR L1 with 360°x90°hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, which makes Go2 realise all-terrain recognizing.
Hangzhou Asian Games "robot dog superstar"
At the 19th Asian Games in Hangzhou, a robot dog transported discus and javelin on the field and became a superstar by the audience.
Various Actions and poses.
Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
Battery capacity and endurance upgraded by 150%.
Go2 is equipped with a battery capacity increased to 8,000mAh, as a 15,000mAh ultra-long life battery is optional, and a voltage increased to 28.8V to improve motor efficiency, power and stability.
Motor performance enhanced by 30%.
Go2 boasts a peak joint torque of 45N.m[1], a new internal trace connecting technique, and heat pipe coolers to decrease temperature effectively.
ISS2.0
Intelligent Side-follow System
By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m[2], and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain
OTA Upgrades
Keep improving and evolving to be smarter.
With user authorisation, the robot automatically connects to a cloud-based OTA service to upgrade its own programs to continuously improve the user experience.
Intelligent Interaction
Have great fun with the APP
Intelligent obstacle avoidance, precise and sensitive
Keen detection, equipped with 4D LiDAR L1, for the owner to explore forward, intelligent obstacle avoidance, accurately capture and draw the 3D real world
Pushing boundaries with technology
Equipped with more high-tech devices
The New Generation—Unitree Go2
returning with glory
leads the bionic robotics world.
Inspection Package
Go2-W Inspection
Base Configuration
Base Version |
With all the parameters of Go2-W Utimate version |
Dual-Light Head |
High-precision three-axis stabilization |
Gimbal Parameters
Angular Jitter |
±0.01° |
Controllable Pitch Rotation |
-90°~+25 |
Controllable Horizontal Rotation |
-270°~+270° |
Horizontal Roll Rotation |
-45°~+45° |
Thermal Imaging Sensor
Resolution |
640x512 |
Waveband Range |
8-14um |
Temperature Measurement
High Gain Range |
-20~+150°C |
Low Gain Range |
50~+550℃ |
Accuracy: -20~+150℃ |
±2℃ |
Accuracy: 50~+550℃ |
±5℃ |
Important Information
D1 Robotic Arm |
Not optional servo robotic arm D1 |
Platform Scope |
Go2-W inspection package is only hardware platform, support customers to do secondary development by themself. This platform is a standard platform: does not include customization services, does not include the project site navigation map building services, does not include the software management platform, does not include the project site survey and implementation services, etc. |
Description
Unitree Go2-W Inspection Package
Standard Ultra-wide 4D LIDAR upgrades Recognition system by 200%.
Go2 features with Unitree's self-developed 4D LIDAR L1 with 360°x90°hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, which makes Go2 realise all-terrain recognizing.
Hangzhou Asian Games "robot dog superstar"
At the 19th Asian Games in Hangzhou, a robot dog transported discus and javelin on the field and became a superstar by the audience.
Various Actions and poses.
Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
Battery capacity and endurance upgraded by 150%.
Go2 is equipped with a battery capacity increased to 8,000mAh, as a 15,000mAh ultra-long life battery is optional, and a voltage increased to 28.8V to improve motor efficiency, power and stability.
Motor performance enhanced by 30%.
Go2 boasts a peak joint torque of 45N.m[1], a new internal trace connecting technique, and heat pipe coolers to decrease temperature effectively.
ISS2.0
Intelligent Side-follow System
By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m[2], and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain
OTA Upgrades
Keep improving and evolving to be smarter.
With user authorisation, the robot automatically connects to a cloud-based OTA service to upgrade its own programs to continuously improve the user experience.
Intelligent Interaction
Have great fun with the APP
Intelligent obstacle avoidance, precise and sensitive
Keen detection, equipped with 4D LiDAR L1, for the owner to explore forward, intelligent obstacle avoidance, accurately capture and draw the 3D real world
Pushing boundaries with technology
Equipped with more high-tech devices
The New Generation—Unitree Go2
returning with glory
leads the bionic robotics world.
Inspection Package
Go2-W Inspection
Base Configuration
Base Version |
With all the parameters of Go2-W Utimate version |
Dual-Light Head |
High-precision three-axis stabilization |
Gimbal Parameters
Angular Jitter |
±0.01° |
Controllable Pitch Rotation |
-90°~+25 |
Controllable Horizontal Rotation |
-270°~+270° |
Horizontal Roll Rotation |
-45°~+45° |
Thermal Imaging Sensor
Resolution |
640x512 |
Waveband Range |
8-14um |
Temperature Measurement
High Gain Range |
-20~+150°C |
Low Gain Range |
50~+550℃ |
Accuracy: -20~+150℃ |
±2℃ |
Accuracy: 50~+550℃ |
±5℃ |
Important Information
D1 Robotic Arm |
Not optional servo robotic arm D1 |
Platform Scope |
Go2-W inspection package is only hardware platform, support customers to do secondary development by themself. This platform is a standard platform: does not include customization services, does not include the project site navigation map building services, does not include the software management platform, does not include the project site survey and implementation services, etc. |
Unitree
by
Unitree
Unitree Go2-W inspection package
SKU:
Go2-W-U5
FREE SHIPPING
- Regular price
- $32,299.00
- Sale price
- $32,299.00
- Regular price
-
Shipping calculated at checkout.
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Packaging note:
Equipment is being supplied in a manufacturer packaging
