Description
Multi-Material Printing with Expanded Hotend Flexibility
Bambu Lab H2C Full Nozzle Bundle
An expanded H2C multi-material printing configuration combining the Vortek Hotend Change System, AMS 2 Pro and an extended selection of left-side and induction hotends. The Full Nozzle Bundle provides greater flexibility for precision, general-purpose and high-throughput printing while retaining the purge-saving advantages of the H2C platform.
330 × 320 × 325 mm
Maximum two-nozzle workspace
350°C
Maximum nozzle temperature
65°C
Active chamber heating
1 × AMS 2 Pro
Four automatic filament slots included
Why Choose the Full Nozzle Bundle
Greater Nozzle Flexibility from the Start
The Full Nozzle Bundle expands the standard H2C AMS configuration with additional left-side and Vortek induction hotends. This provides a broader selection of nozzle setups for detailed models, everyday printing, multi-color jobs and larger functional parts.
Vortek Hotend Change System
Up to six interchangeable induction hotends can be stored inside the printer and automatically swapped during compatible multi-material printing workflows.

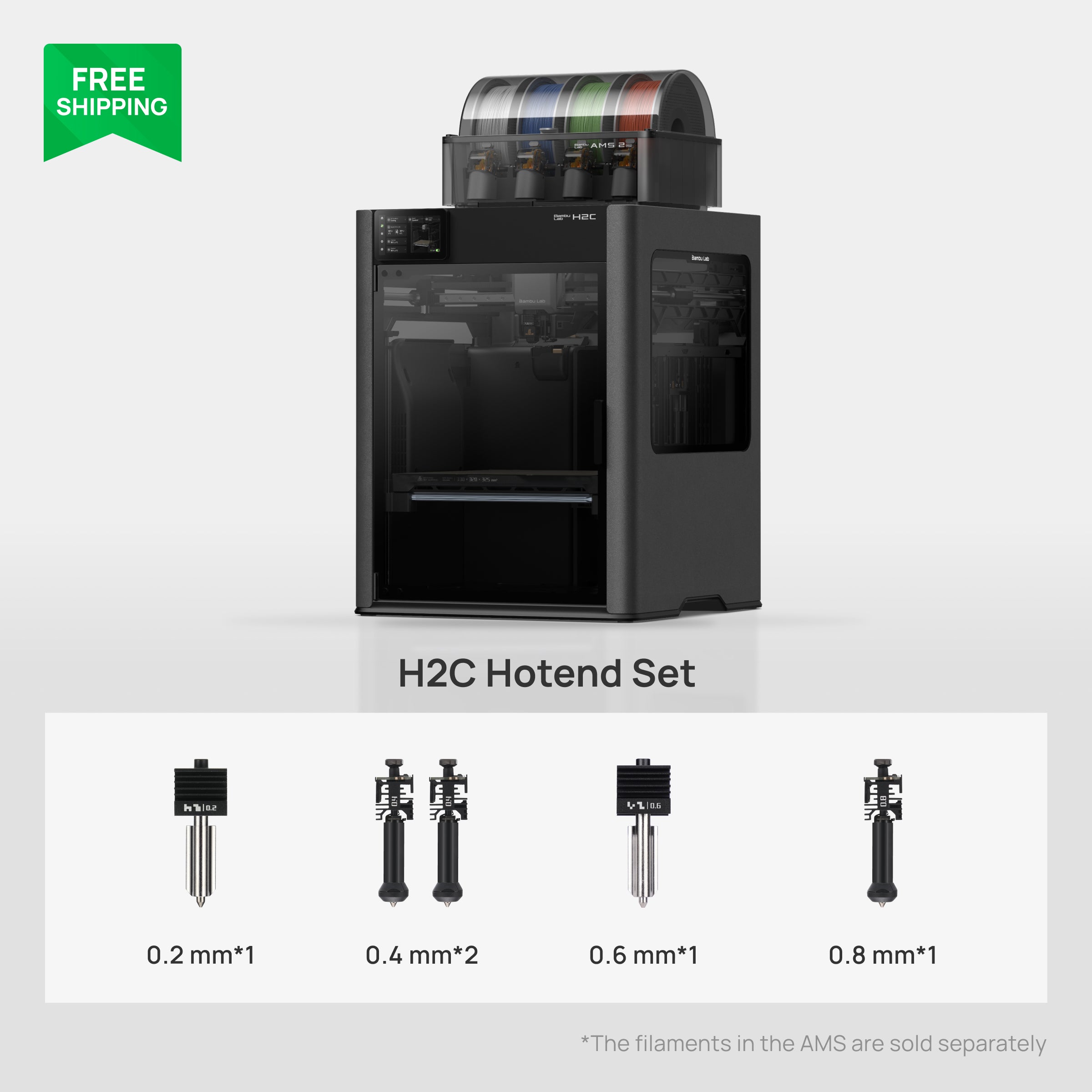

Expanded Hotend Set
Additional 0.2 mm and 0.6 mm left-side hotends plus two extra 0.4 mm induction hotends expand the standard H2C configuration.
Full 0.4 mm Vortek Rack
The additional 0.4 mm induction hotends allow all six Vortek positions to be equipped with 0.4 mm hotends when maximum multi-color flexibility is required.
AMS 2 Pro Included
Four filament slots provide automatic filament loading, unloading and material switching for multi-color and multi-material printing.
Minimal Purge Waste
Vortek swaps the complete induction hotend instead of repeatedly flushing one nozzle, significantly reducing unnecessary purge material in compatible workflows.
Engineering Material Ready
Nozzle temperatures up to 350°C, a 120°C build plate and active chamber heating up to 65°C support demanding engineering-material applications.
Vortek Hotend Change System
Automatic Induction Hotend Swapping
Instead of relying on a single nozzle for every filament, the H2C can automatically switch between induction hotends. Materials can remain associated with dedicated hotends, helping minimize purge cycles and shorten multi-material changeovers.
Expanded Hotend Selection
Precision, General Purpose and Faster Printing
The expanded nozzle selection makes it easier to configure the H2C for different printing priorities. A 0.2 mm nozzle is suited to fine details, 0.4 mm provides the standard balance between detail and speed, while 0.6 mm is useful for larger models and functional parts requiring higher material throughput.
0.2 mm Nozzles
Designed for fine details, miniature models, small text and high-resolution surface features.
0.4 mm Nozzles
The standard all-purpose configuration for general printing, multi-color models and engineering applications.
0.6 mm Nozzles
Suitable for larger components, stronger extrusion lines and workflows where printing speed is prioritized.
0.8 mm Supported
H2C also supports optional 0.8 mm hotends for high-throughput applications. A 0.8 mm hotend is not part of this bundle.
Intelligent Hotend Management
Dedicated Hotends for Specific Materials
Vortek induction hotends can store filament information, allowing the printer to remember previously assigned filament-to-hotend combinations and reuse them in future jobs.
AMS 2 Pro
Automatic Four-Spool Material Management
The included AMS 2 Pro manages four filament spools and automatically feeds the required material to the H2C. The system combines filament switching, active drying and protected filament storage.
4 Filament Slots
Four compatible materials or colors can remain loaded and ready for automatic printing.
65°C Filament Drying
Active heated airflow provides drying temperatures up to 65°C for compatible filaments.
Automatic Spool Rotation
Spools rotate during drying to help provide more consistent moisture removal.
RFID Filament Recognition
Compatible Bambu Lab filament can be automatically identified and synchronized with the printing system.
High-Speed Performance
Up to 1000 mm/s Toolhead Speed
H2C combines high-speed CoreXY motion with closed-loop servo extrusion. The system monitors extrusion resistance and filament movement to help detect grinding, clogs and other abnormalities during demanding print jobs.
High-Performance Materials
350°C Nozzles and 65°C Active Chamber
The H2C provides nozzle temperatures up to 350°C, build-plate heating up to 120°C and an actively heated enclosed chamber up to 65°C. These controlled conditions expand material compatibility beyond basic PLA and PETG.
Technical Specifications
Bambu Lab H2C Full Nozzle Bundle
Build Area & Printing
| Print Technology | FDM / FFF |
| Single-Nozzle Build Volume — Left | 325 × 320 × 325 mm³ |
| Single-Nozzle Build Volume — Right | 305 × 320 × 325 mm³ |
| Dual-Nozzle Build Volume | 300 × 320 × 325 mm³ |
| Total Two-Nozzle Workspace | 330 × 320 × 325 mm³ |
| Motion System | CoreXY |
| Included Build Plate | Textured PEI Plate |
Toolhead & Temperature
| Vortek Hotend Positions | Up to 6 induction hotends |
| Fixed Left Hotend | 1 |
| Maximum Nozzle Temperature | 350°C |
| Supported Nozzle Diameters | 0.2 mm, 0.4 mm, 0.6 mm and 0.8 mm |
| Maximum Heatbed Temperature | 120°C |
| Maximum Chamber Temperature | 65°C |
| Extruder Gear | Hardened steel |
| Filament Diameter | 1.75 mm |
Full Nozzle Bundle
| 0.4 mm Induction Hotends | 6 total |
| 0.2 mm Induction Hotend | 1 |
| 0.6 mm Induction Hotend | 1 |
| 0.4 mm Left-Side Hotends | 2 total |
| 0.2 mm Left-Side Hotend | 1 |
| 0.6 mm Left-Side Hotend | 1 |
| Total Hotends Supplied | 12 |
| 0.8 mm Hotend | Supported, not included |
Vortek System
| Automatic Hotend Change | Supported |
| Induction Heating | Supported |
| Approximate Heat-Up Time | 8 seconds under specified PLA conditions |
| Contactless Power & Communication | Supported |
| Hotend Filament Memory | Supported |
| Automatic Nozzle Offset Calibration | Supported |
AMS 2 Pro
| Included Units | 1 |
| Filament Slots | 4 |
| Maximum Drying Temperature | 65°C |
| Active Filament Drying | Supported |
| Automatic Spool Rotation | Supported |
| RFID Filament Recognition | Supported |
| Automatic Filament Backup | Supported |
Supported Materials
| Standard Materials | PLA, PETG, TPU, PVA and BVOH |
| Engineering Materials | ABS, ASA, PC, PA, PET and PPS |
| Composite Materials | Compatible carbon- and glass-fiber reinforced materials |
| Filament Diameter | 1.75 mm |
Dimensions & Weight
| Printer Dimensions | 492 × 514 × 626 mm |
| Printer Dimensions | 19.37 × 20.24 × 24.65 in |
| Printer Net Weight | 32.5 kg / 71.65 lb |
| H2C AMS Combo Gross Weight | 44.7 kg / 98.55 lb |
| Additional Hotend Bundle Package Weight | 0.095 kg / 0.21 lb |
| Approximate Combined Shipping Weight | 44.795 kg / 98.76 lb |
Electronics & Control
| Touchscreen | 5-inch color touchscreen |
| Internal Storage | 8 GB eMMC |
| Wireless Connectivity | Wi-Fi |
| Control Software | Bambu Studio |
| Mobile Control | Bambu Handy |
| Automatic Bed Leveling | Supported |
| Power-Loss Recovery | Supported |
Bundle Configuration
| 3D Printer | Bambu Lab H2C |
| Automatic Material System | 1 × AMS 2 Pro |
| Vortek Utility Hotends | Included |
| Additional Left 0.2 mm Hotend | Included |
| Additional Left 0.6 mm Hotend | Included |
| Additional Right 0.4 mm Induction Hotends | 2 included |
| Textured PEI Plate | Included |
| Spool Holder | Included |
| 4-in-1 PTFE Adapter II | Included |
| Laser Module | Not included |
| AMS HT | Not included |
