Product Overview

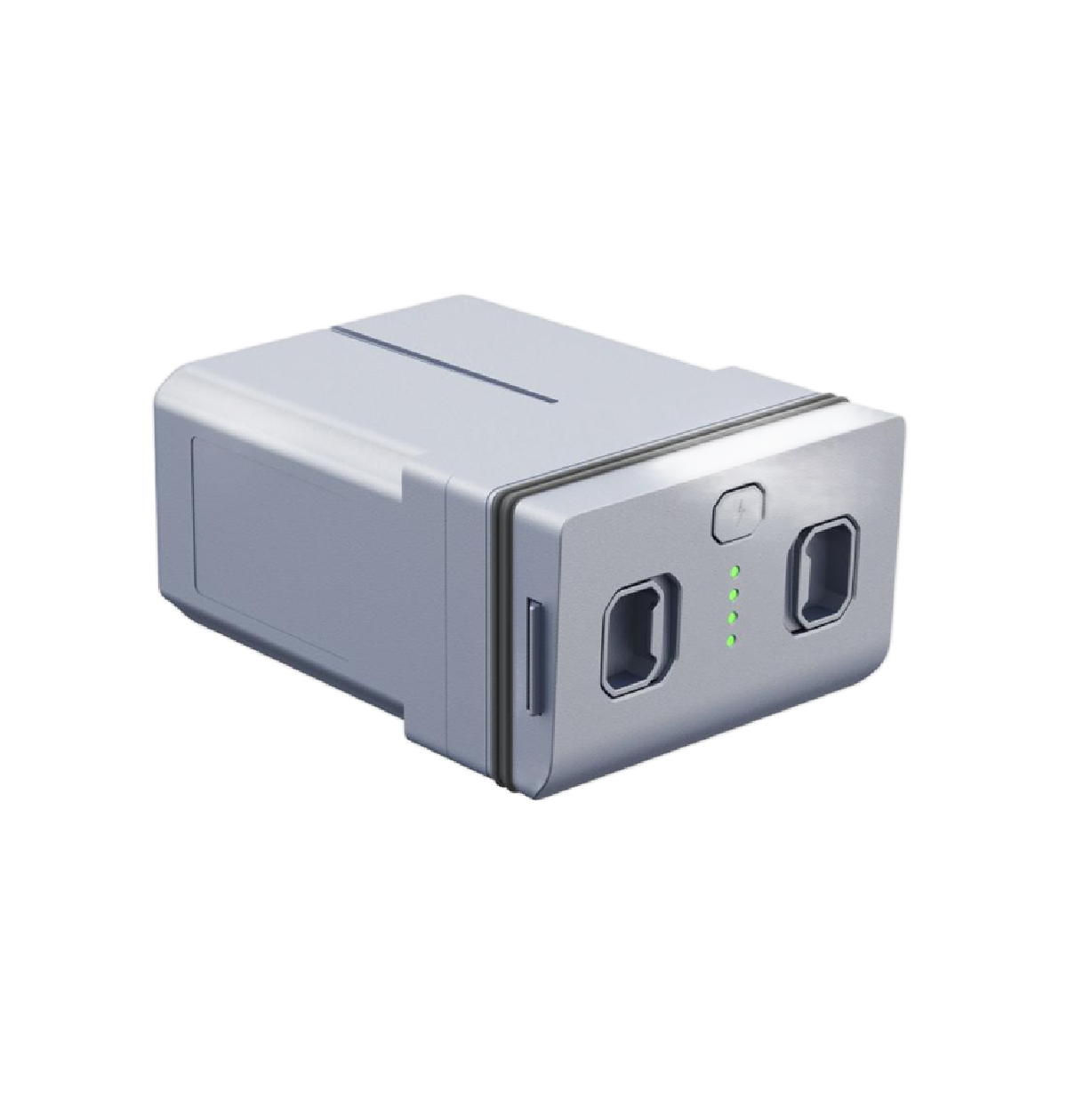

The Unitree As2 Battery (Long Range Version) is the official replacement and spare battery for the Unitree As2 quadruped robot. With a rated capacity of 15,000 mAh, it provides reliable power for extended operation sessions, field deployments, and research missions. The battery is certified to IS 16046 (Part 2) and IEC 62133-2 international safety standards, ensuring compliance with the most stringent lithium-ion battery regulations worldwide. At its core is a proprietary Battery Management System (BMS) that continuously monitors cell voltage, temperature, and current — delivering intelligent protection against all common failure modes. An integrated battery level LED display provides at-a-glance charge status, eliminating guesswork during field operations. Whether you need maximum endurance for long field deployments, a spare for extended missions, or a hot-swap solution for continuous operation, the As2 Long Range Battery delivers Unitree-grade reliability and safety with significantly longer runtime.

Intelligent BMS — Six-Layer Protection

The proprietary Battery Management System in the As2 Long Range Battery provides comprehensive, real-time protection across six critical domains:

International Safety Standards

The As2 Long Range Battery is certified to two of the world's most respected lithium-ion battery safety standards, ensuring safe transport, storage, and operation across all jurisdictions:

• IS 16046 (Part 2) — Indian Standard for Secondary Cells and Batteries Containing Alkaline or Other Non-Acid Electrolytes. Part 2 covers lithium systems, specifying safety requirements for portable sealed secondary cells and batteries made from them.
• IEC 62133-2 — International Electrotechnical Commission standard for secondary cells and batteries containing alkaline or other non-acid electrolytes. Part 2 specifically addresses lithium systems, defining safety requirements for portable sealed secondary lithium cells and batteries for use in portable applications.

These certifications cover rigorous testing for external short circuit, free fall, thermal abuse, crush, over-charge, forced discharge, vibration, and mechanical shock — giving you confidence that the battery has been validated under extreme conditions.

Usage Guidelines & Best Practices

To maximize battery life, safety, and performance, follow these best practices:

• Use Only Official Unitree Chargers — Charge only with the Unitree Standard Charger (50.4 V, 4 A) or the Unitree Fast Charger (50.4 V, 7.4 A). Third-party chargers may damage the BMS or cells.
• Charge in Safe Conditions — Charge in a dry, well-ventilated area between 5°C and 40°C. Never charge in direct sunlight, near heat sources, or in enclosed spaces.
• Cool Before Charging — Allow the battery to cool to near room temperature after heavy use before connecting the charger. Charging a hot battery reduces lifespan.
• Storage Charge Level — For long-term storage (more than 2 weeks), charge or discharge the battery to approximately 50% capacity. The BMS self-discharge protection will maintain this level.
• Storage Temperature — Store in a cool, dry place between −10°C and 30°C. Avoid extreme temperatures that can degrade cell chemistry.
• Regular Cycling — For optimal battery health, fully discharge and recharge the battery at least once every 3 months during storage periods.
• Inspect Before Use — Check the battery housing for cracks, swelling, or damage before each use. Do not use a damaged battery — contact Unitree support for replacement.
• Transport Safely — When shipping or transporting, ensure the battery terminals are protected from short circuits. Follow all applicable lithium-ion battery shipping regulations (IATA, ADR, etc.).

Compatibility

The As2 Standard Battery is designed exclusively for the Unitree As2 quadruped robot platform. It is not interchangeable with A2 or A2-W batteries, which use a different form factor and connector. Always verify you are purchasing the correct battery variant for your robot model. The battery slides into the dedicated battery bay on the As2 chassis and locks securely into place with the integrated retention mechanism.

As2 Battery Comparison

Choose the right battery for your mission profile. Both versions share the same physical form factor, BMS, safety certifications, and connector — making them fully interchangeable within the As2 platform.

* Charge times are approximate and depend on ambient temperature, battery condition, and charger type. Use Unitree Fast Charger for shortest charge times.

Technical Specifications

* Specifications are based on manufacturer data and may vary slightly by production batch.
* This battery is designed exclusively for the Unitree As2 robot. Not compatible with A2 or A2-W models. Same form factor as Standard version — fully interchangeable within the As2 platform.
* Always use official Unitree chargers. Third-party chargers may void warranty and damage the battery or BMS.
* Store in a cool, dry place. Do not expose to temperatures exceeding 60°C or below −20°C.
* Dispose of used batteries in accordance with local regulations for lithium-ion waste.
* Unitree is a registered trademark of Unitree Robotics.
