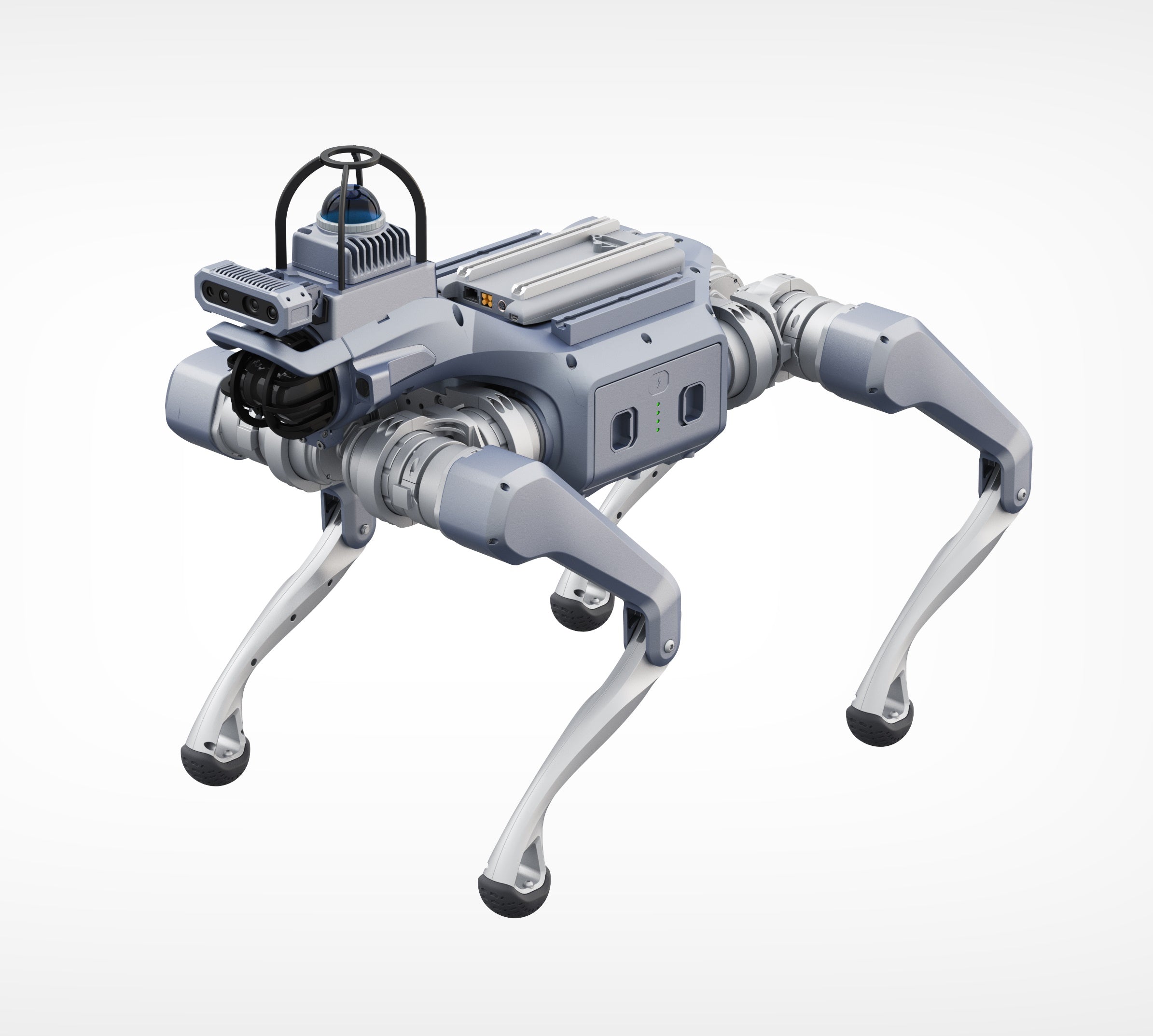

Unitree As2 EDU Smart (EDU-U3) — Full 360° Perception for Autonomous Navigation Research

Powerful Motors, Exceptional Payload

Maximum joint torque: Approx. 90 N·m, torque-to-weight ratio: Approx. 5 N·m/kg (self-weight: 18 kg).

All-Weather Adaptability, Reliable Operation

IP54 rainproof design, stable performance in complex weather and environments.

The Unitree As2 EDU Smart is purpose-built for teams working on autonomous navigation, SLAM, and outdoor path planning. It adds a Livox Mid-360 LiDAR to the Plus configuration's compute and depth camera stack — delivering a complete, out-of-the-box sensor suite for real-world autonomy research, without requiring external sensor sourcing or custom mounting solutions.

What's Upgraded Over Plus

• Livox Mid-360 LiDAR included — Full 360° point cloud coverage; the industry-standard sensor for quadruped SLAM and autonomous navigation
• Navigation Algorithm Technical Support included — Unitree provides dedicated support for teams integrating the Mid-360 into navigation pipelines
• 100 TOPS compute and 1 depth camera retained from Plus

Full Feature Set

• 90 N·m Maximum Joint Torque, 12 DOF, dual encoders per joint
• Industrial 64–128-Line LiDAR + Livox Mid-360 LiDAR — dual LiDAR stack for layered perception
• 1 Depth Camera for close-range 3D sensing
• IP54 Protection for all-weather, all-terrain deployment
• GPS + 4G (user-authorized)
• 4+ Hours / ~20 km unloaded; 2.5 hours / ~13 km with 15 kg load
• 15,000 mAh battery + 51V 9A fast charging + charging pad
• Isaac Sim supports full robot models and simulation interfaces
• Custom development supported
• 1-Year Warranty + exceptional technical support and ecosystem documentation

Technical Specifications
