Open Quadruped AI Development
Unitree As2 EDU Standard
EDU-U1
The entry-level configuration of the As2 EDU platform, combining the full industrial-grade mechanical system with NVIDIA Jetson Orin Nano computing for custom AI, navigation and locomotion development.
40 TOPS
NVIDIA Jetson Orin Nano
90 N·m
Maximum joint torque
IP54
Rain and dust protection
4+ h
Unloaded runtime
Platform Overview
Your Gateway to Open Quadruped AI Development
Unitree As2 EDU Standard provides an immediate foundation for neural networks, perception pipelines, embodied AI models, mapping, obstacle avoidance and locomotion research directly on the robot.
40 TOPS AI Compute
NVIDIA Jetson Orin Nano supports onboard inference and custom AI workloads.

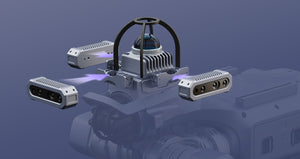

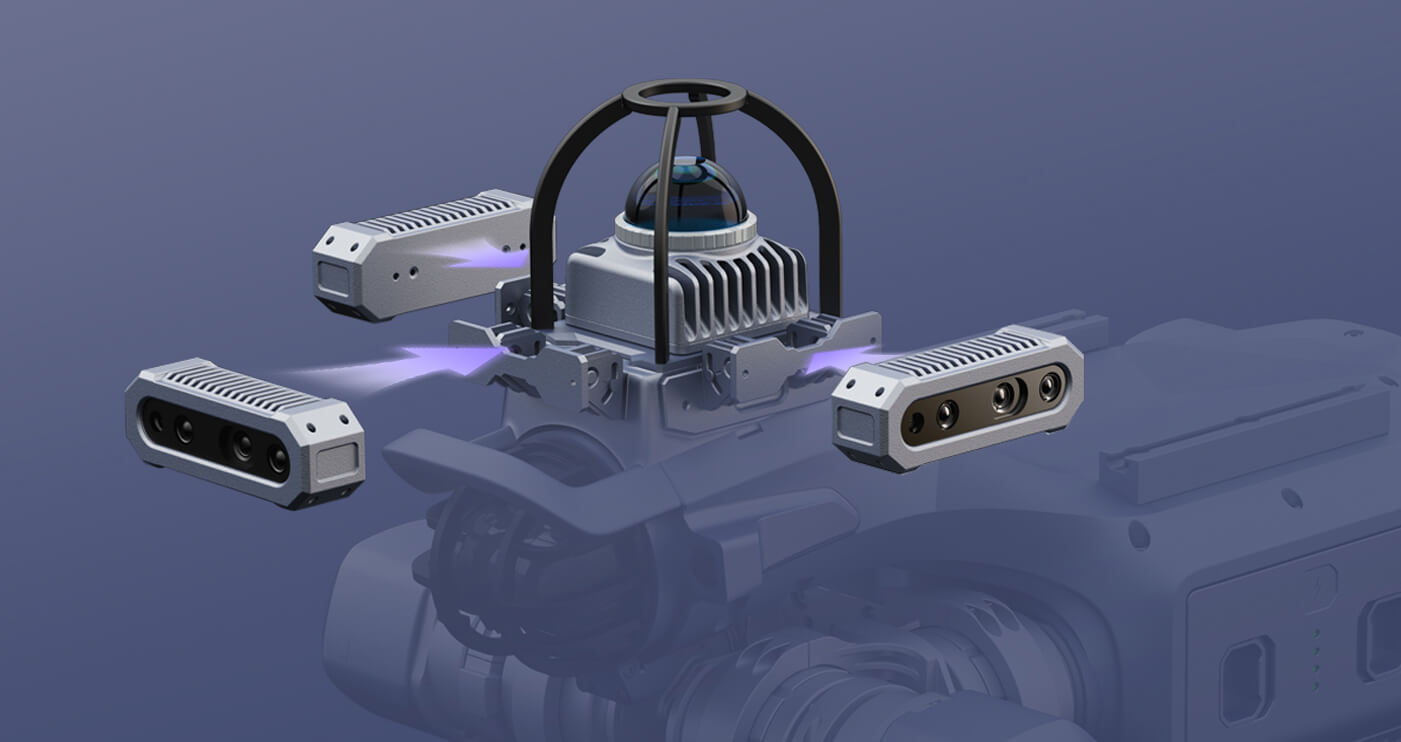

Industrial LiDAR
64–128-line LiDAR provides wide-angle spatial perception for mapping and obstacle avoidance.
Long-Range Mobility
More than 4 hours and approximately 20 km unloaded; around 2.5 hours and 13 km with a 15 kg payload.
Open Development
Supports custom development, robot models, simulation interfaces and Isaac Sim.
Motion Performance
Powerful Motors, Exceptional Payload
Maximum joint torque reaches approximately 90 N·m, with a torque-to-weight ratio of around 5 N·m/kg at a self-weight of 18 kg.
Environmental Adaptability
All-Weather Adaptability
IP54 protection supports stable operation in rain, dust and changing outdoor conditions while remaining suitable for indoor laboratories.
Included Configuration
Research-Ready Standard Package
Jetson Orin Nano
40 TOPS onboard AI computing.
Charging Pad
Included with 51V 9A fast charging.
Depth Camera
Optional add-on.
Technical Specifications
Unitree As2 EDU Standard
Compute & Perception
| Compute | NVIDIA Jetson Orin Nano, 40 TOPS |
| LiDAR | Industrial 64–128-line LiDAR |
| Depth Camera | Optional |
| GPS / 4G | Included; user-authorized activation required |
| Isaac Sim | Supported |
| Custom Development | Supported |
Mobility & Payload
| Maximum Joint Torque | Approximately 90 N·m |
| Travel Speed | 0–3.7 m/s; peak approximately 5 m/s |
| Maximum Standing Load | Approximately 65 kg |
| Walking Load | Approximately 15 kg |
| Stair Climbing | 25 cm |
| Gradeability | Approximately 40° |
Battery & Endurance
| Battery | 15,000 mAh |
| Fast Charger | 51V 9A |
| Charging Pad | Included |
| Runtime, Unloaded | 4+ hours / approximately 20 km |
| Runtime, 15 kg Load | Approximately 2.5 hours / 13 km |
Protection & Support
| Protection Rating | IP54 |
| Development Manuals | Included |
| Ecosystem Support | Included |
| Warranty | 1 year |
Description
Open Quadruped AI Development
Unitree As2 EDU Standard
EDU-U1
The entry-level configuration of the As2 EDU platform, combining the full industrial-grade mechanical system with NVIDIA Jetson Orin Nano computing for custom AI, navigation and locomotion development.
40 TOPS
NVIDIA Jetson Orin Nano
90 N·m
Maximum joint torque
IP54
Rain and dust protection
4+ h
Unloaded runtime
Platform Overview
Your Gateway to Open Quadruped AI Development
Unitree As2 EDU Standard provides an immediate foundation for neural networks, perception pipelines, embodied AI models, mapping, obstacle avoidance and locomotion research directly on the robot.
40 TOPS AI Compute
NVIDIA Jetson Orin Nano supports onboard inference and custom AI workloads.
Industrial LiDAR
64–128-line LiDAR provides wide-angle spatial perception for mapping and obstacle avoidance.
Long-Range Mobility
More than 4 hours and approximately 20 km unloaded; around 2.5 hours and 13 km with a 15 kg payload.
Open Development
Supports custom development, robot models, simulation interfaces and Isaac Sim.
Motion Performance
Powerful Motors, Exceptional Payload
Maximum joint torque reaches approximately 90 N·m, with a torque-to-weight ratio of around 5 N·m/kg at a self-weight of 18 kg.
Environmental Adaptability
All-Weather Adaptability
IP54 protection supports stable operation in rain, dust and changing outdoor conditions while remaining suitable for indoor laboratories.
Included Configuration
Research-Ready Standard Package
Jetson Orin Nano
40 TOPS onboard AI computing.
Charging Pad
Included with 51V 9A fast charging.
Depth Camera
Optional add-on.
Technical Specifications
Unitree As2 EDU Standard
Compute & Perception
| Compute | NVIDIA Jetson Orin Nano, 40 TOPS |
| LiDAR | Industrial 64–128-line LiDAR |
| Depth Camera | Optional |
| GPS / 4G | Included; user-authorized activation required |
| Isaac Sim | Supported |
| Custom Development | Supported |
Mobility & Payload
| Maximum Joint Torque | Approximately 90 N·m |
| Travel Speed | 0–3.7 m/s; peak approximately 5 m/s |
| Maximum Standing Load | Approximately 65 kg |
| Walking Load | Approximately 15 kg |
| Stair Climbing | 25 cm |
| Gradeability | Approximately 40° |
Battery & Endurance
| Battery | 15,000 mAh |
| Fast Charger | 51V 9A |
| Charging Pad | Included |
| Runtime, Unloaded | 4+ hours / approximately 20 km |
| Runtime, 15 kg Load | Approximately 2.5 hours / 13 km |
Protection & Support
| Protection Rating | IP54 |
| Development Manuals | Included |
| Ecosystem Support | Included |
| Warranty | 1 year |
Unitree
by
Unitree

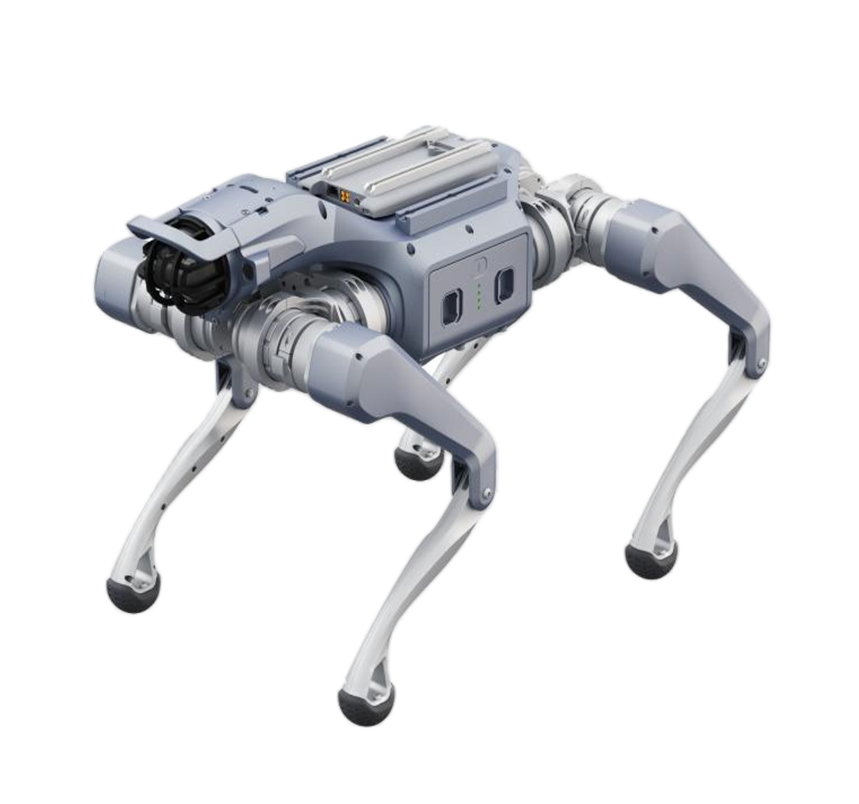

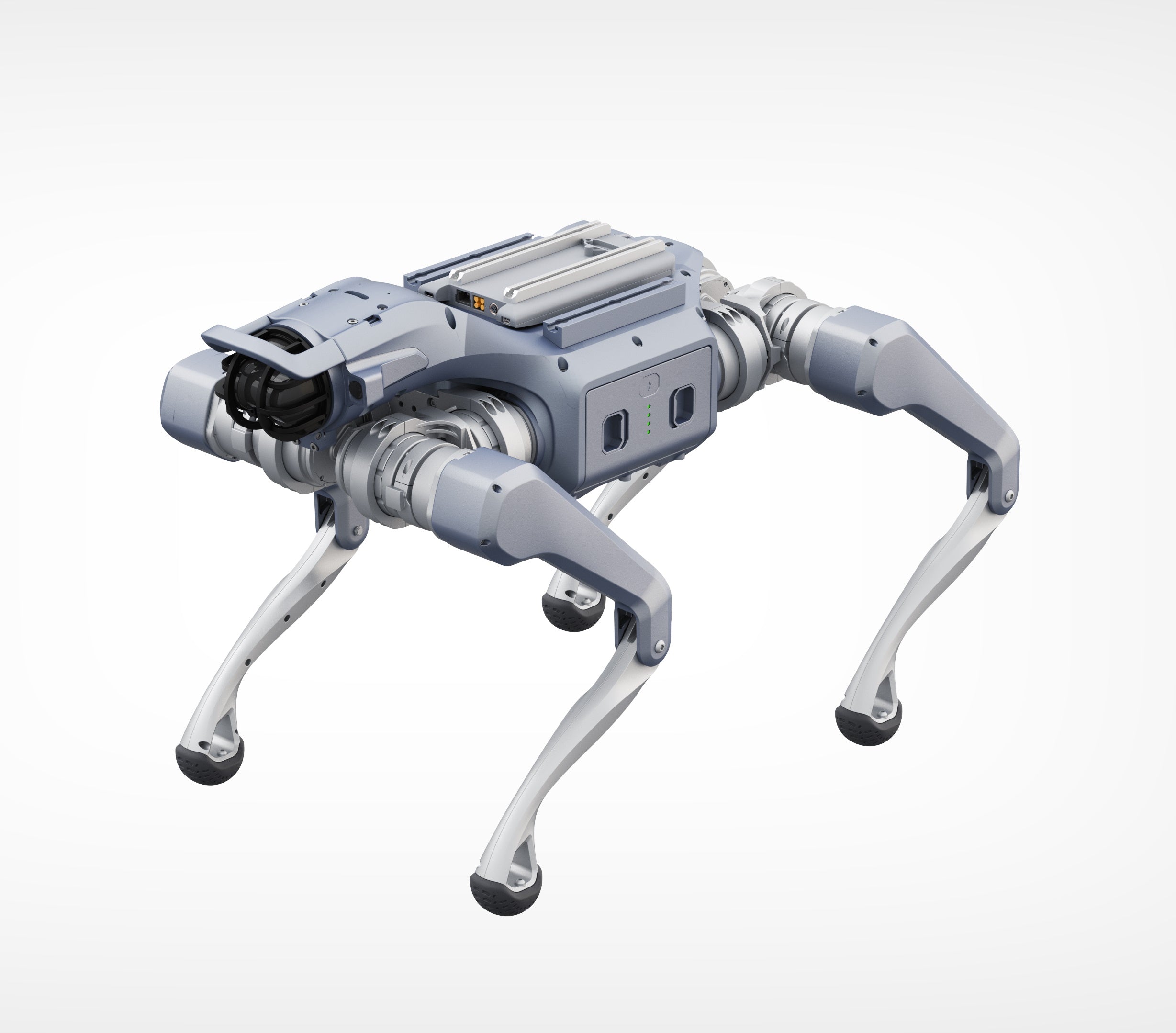

Unitree As2 EDU Standard Robot Dog
FREE SHIPPING
- Regular price
- $11,900.00
- Sale price
- $11,900.00
- Regular price
-
Shipping calculated at checkout.
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Packaging note:
Equipment is being supplied in a manufacturer packaging
