About
Description

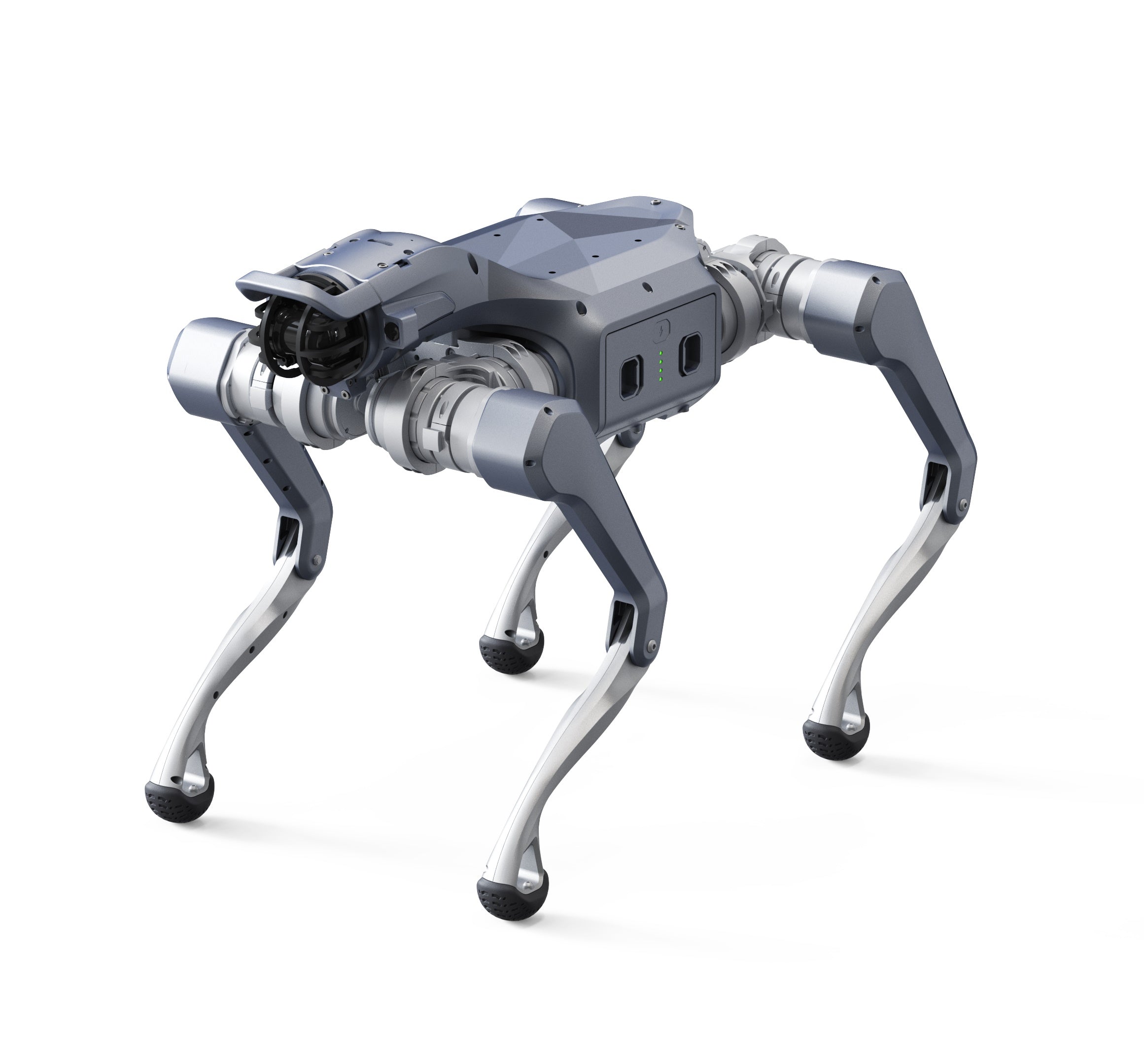

Industrial Quadruped Platform
Unitree As2 X
A modular industrial quadruped built for system integrators, enterprise deployment and engineering teams that need a powerful mechanical platform without a fixed compute or sensor configuration.
90 N·m
Maximum joint torque
18 kg
Weight with battery
IP54
Rain and dust protection
4+ h
Unloaded runtime
Platform Overview
Built for Custom Deployment
The Unitree As2 X combines 90 N·m joint torque, industrial LiDAR, GPS, 4G, IP54 protection and long-range mobility while keeping the compute and sensor stack open. It ships without a pre-installed compute dock or depth camera, allowing integrators to configure the platform around their exact application.
Industrial Perception
Industrial-grade 64–128-line LiDAR provides high-resolution wide-angle spatial sensing.
Field-Ready Protection
IP54 protection supports operation in dust, rain and changing outdoor environments.
Long-Range Mobility
More than 4 hours and approximately 20 km unloaded; about 2.5 hours and 13 km with a 15 kg load.
Open Development
Supports customization, robot models, simulation interfaces, Isaac Sim, UniStore and smart OTA updates.
Motion Performance
Powerful Motors, Exceptional Payload
Maximum joint torque reaches approximately 90 N·m, with a torque-to-weight ratio of around 5 N·m/kg. The platform supports a maximum standing load of approximately 65 kg and a continuous walking load of around 15 kg.
Environmental Adaptability
All-Weather Adaptability
The IP54 rainproof design supports stable operation in complex weather and field environments, with an operating temperature range from −20°C to +50°C.
Optional Expansion
Add Only What You Need
The As2 X is intentionally supplied without a fixed compute dock or depth camera, giving integrators control over payload, power consumption and software architecture.
Computing Expansion Dock
Optional
Depth Camera
Optional
Charging Pad
Optional
Technical Specifications
Unitree As2 X
Dimensions & Mobility
| Unfolded Dimensions | 720 × 378 × 457 mm |
| Folded Dimensions | 776 × 378 × 233 mm |
| Weight | Approximately 18 kg with battery |
| Travel Speed | 0–3.7 m/s; peak approximately 5 m/s |
| Stair Climbing | 25 cm |
| Gradeability | Approximately 40° |
Power & Payload
| Maximum Joint Torque | Approximately 90 N·m |
| Maximum Standing Load | Approximately 65 kg |
| Walking Load | Approximately 15 kg |
| Battery | 15,000 mAh |
| Charger | 51V 9A fast charger |
| Runtime, Unloaded | 4+ hours / approximately 20 km |
| Runtime, 15 kg Load | Approximately 2.5 hours / 13 km |
Perception & Connectivity
| LiDAR | Industrial 64–128-line LiDAR |
| GPS / 4G | Included; user authorization required |
| Base Compute | 8-core CPU |
| Camera | HD camera |
| Audio | Array microphone and speaker |
| Wireless | Wi-Fi 6 and Bluetooth 5.2 |
Protection & Development
| Protection Rating | IP54 |
| Operating Temperature | −20°C to +50°C |
| Customization | Supported |
| Isaac Sim | Supported |
| Remote Control | Handheld controller included |
| Warranty | 1 year |
