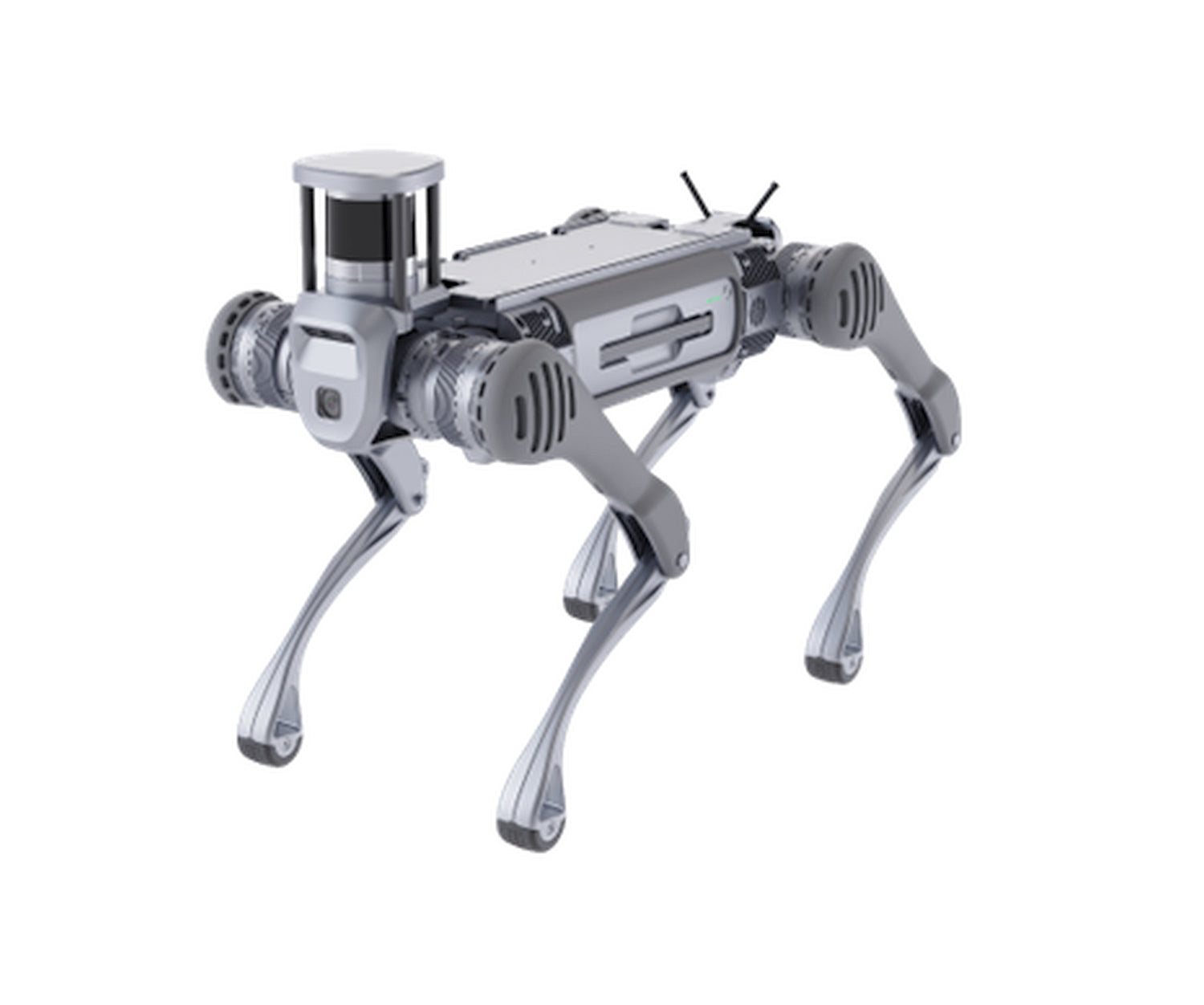

Industrial-Grade Quadruped Robot

Unitree B2

Unitree B2

Fastest running industrial-grade quadruped robot at 6m/s

Unitree B2 running

Climbing stairs as if they were flat.

Excellent sustained stair climbing, effortlessly tackling steps.

Remains extremely stable and balanced when climbing.

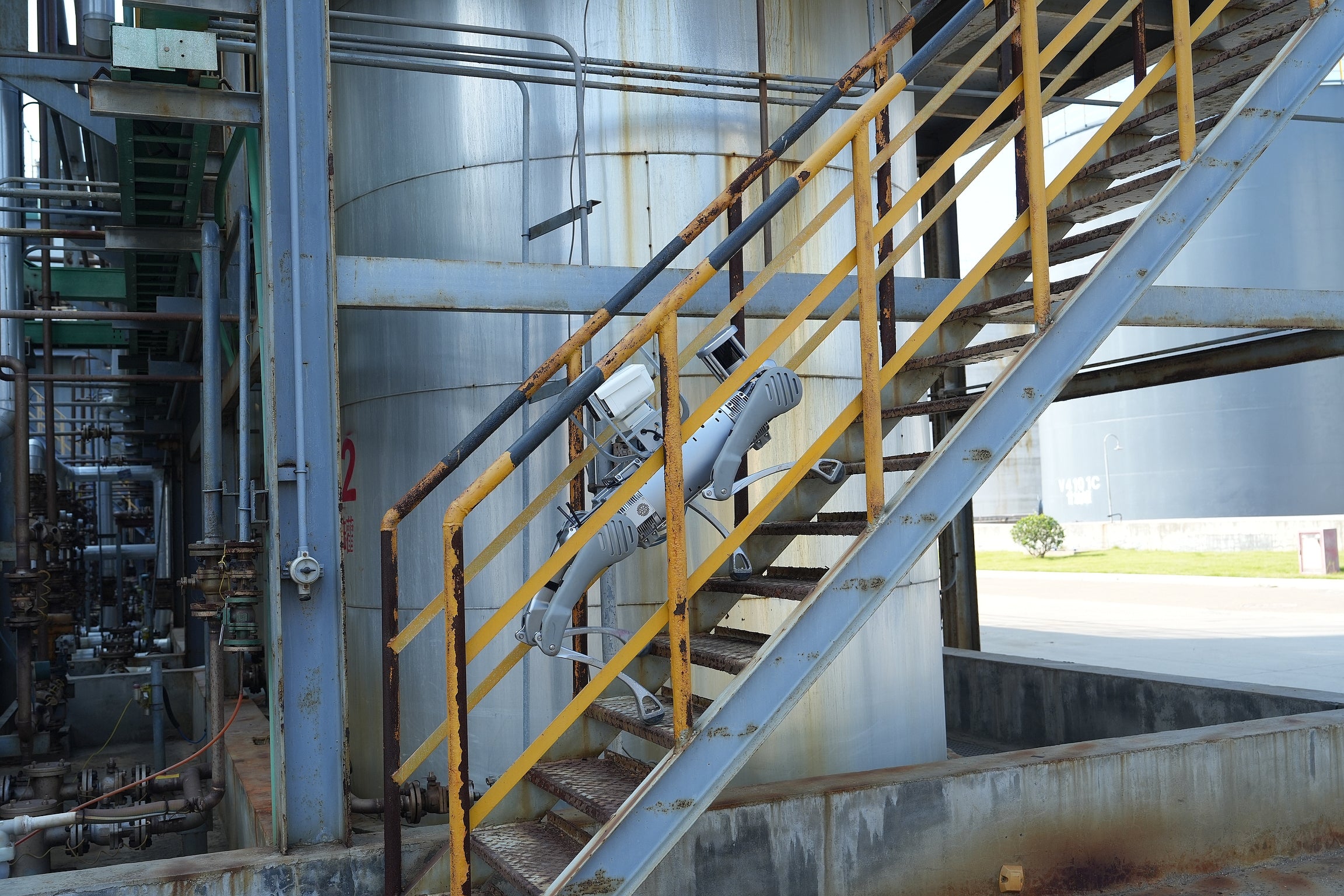

Unitree B2 climbing stairs

170% increase in joint performance with 360 N.m of torque

Extreme performance provids greater flexibility and stability for industrial operations.

Unitree B2 joint performance

Battery System

Plug-in Battery

Stable and Reliable Autonomous Charging

B2 battery supports quick change and also supports autonomous charging solutions(optional)，suitable for a wide range of solutions.

Unitree B2 plug-in battery

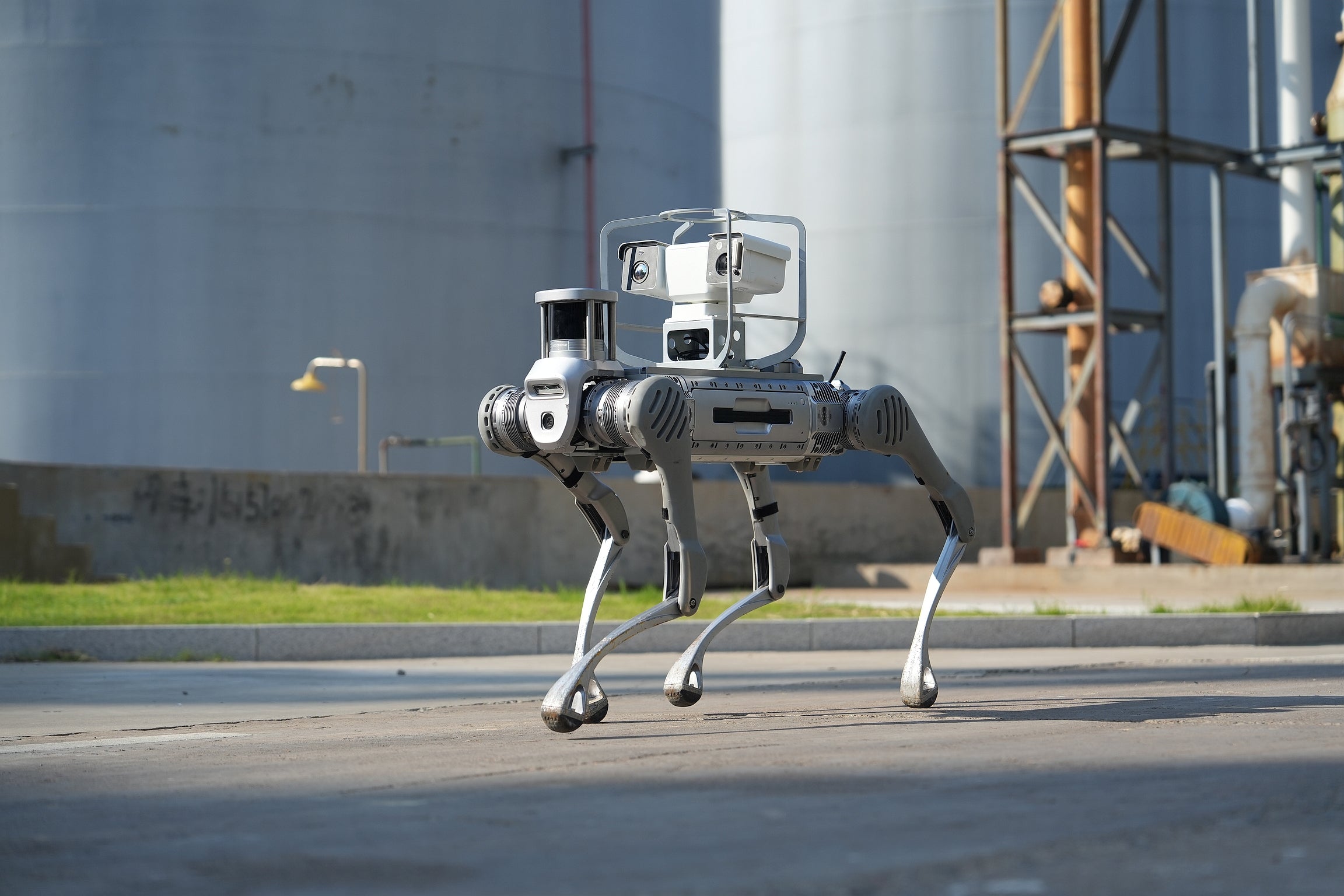

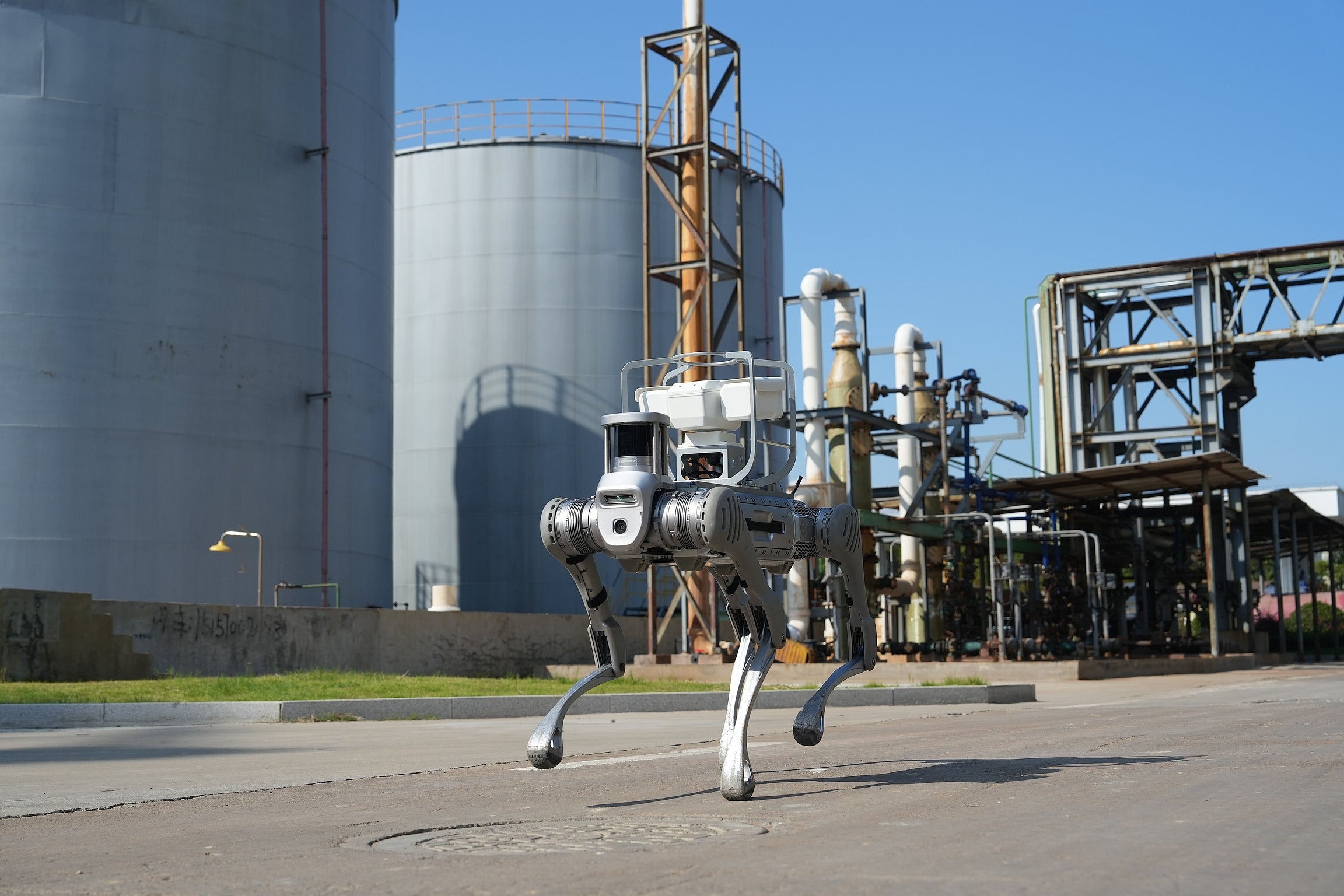

Unitree B2 industrial application
Unitree B2 platform

Technical Configuration

Unitree B2 Specifications

Hardware Platform

Weight About 60kg with battery
Standing Dimensions About 1098mm × 450mm × 645mm
No-Load Endurance Continuous walking with no load, the endurance is more than 20km and the endurance is more than 5 hours
Endurance with 20kg Load Continuous walking with a load of 20kg, the endurance is more than 15km and the endurance is more than 4 hours
Stair Capability Can be up and down stairs of 40cm in the forward direction
Continuous Walking Load ≥ 40kg
Fastest Speed 5m/s
Battery Battery capacity of 45Ah, rated energy 2250Wh, maximum support for 15A charging

Sensing Module

Cameras Built-in multi-group depth camera, multi-group high-definition camera
Terrain Perception Ignore the terrain, combined with the perception of real-time switching gait and landing point
3D Radar Equipped with 32-wire automotive-grade 3D radar with navigation algorithm including SDK
Description

Industrial-Grade Quadruped Robot

Unitree B2

Unitree B2

Fastest running industrial-grade quadruped robot at 6m/s

Unitree B2 running

Climbing stairs as if they were flat.

Excellent sustained stair climbing, effortlessly tackling steps.

Remains extremely stable and balanced when climbing.

Unitree B2 climbing stairs

170% increase in joint performance with 360 N.m of torque

Extreme performance provids greater flexibility and stability for industrial operations.

Unitree B2 joint performance

Battery System

Plug-in Battery

Stable and Reliable Autonomous Charging

B2 battery supports quick change and also supports autonomous charging solutions(optional)，suitable for a wide range of solutions.

Unitree B2 plug-in battery
Unitree B2 industrial application
Unitree B2 platform

Technical Configuration

Unitree B2 Specifications

Hardware Platform

Weight About 60kg with battery
Standing Dimensions About 1098mm × 450mm × 645mm
No-Load Endurance Continuous walking with no load, the endurance is more than 20km and the endurance is more than 5 hours
Endurance with 20kg Load Continuous walking with a load of 20kg, the endurance is more than 15km and the endurance is more than 4 hours
Stair Capability Can be up and down stairs of 40cm in the forward direction
Continuous Walking Load ≥ 40kg
Fastest Speed 5m/s
Battery Battery capacity of 45Ah, rated energy 2250Wh, maximum support for 15A charging

Sensing Module

Cameras Built-in multi-group depth camera, multi-group high-definition camera
Terrain Perception Ignore the terrain, combined with the perception of real-time switching gait and landing point
3D Radar Equipped with 32-wire automotive-grade 3D radar with navigation algorithm including SDK
Unitree by Unitree

Unitree B2 Industry Grade Quadruped Robot Dog Basic B2 Kit with Battery, Navigation Kit

SKU: B2-ROBOT-KIT
FREE SHIPPING
$87,900.00
$87,900.00
Shipping calculated at checkout.
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Packaging note:
Equipment is being supplied in a manufacturer packaging
