Product Overview

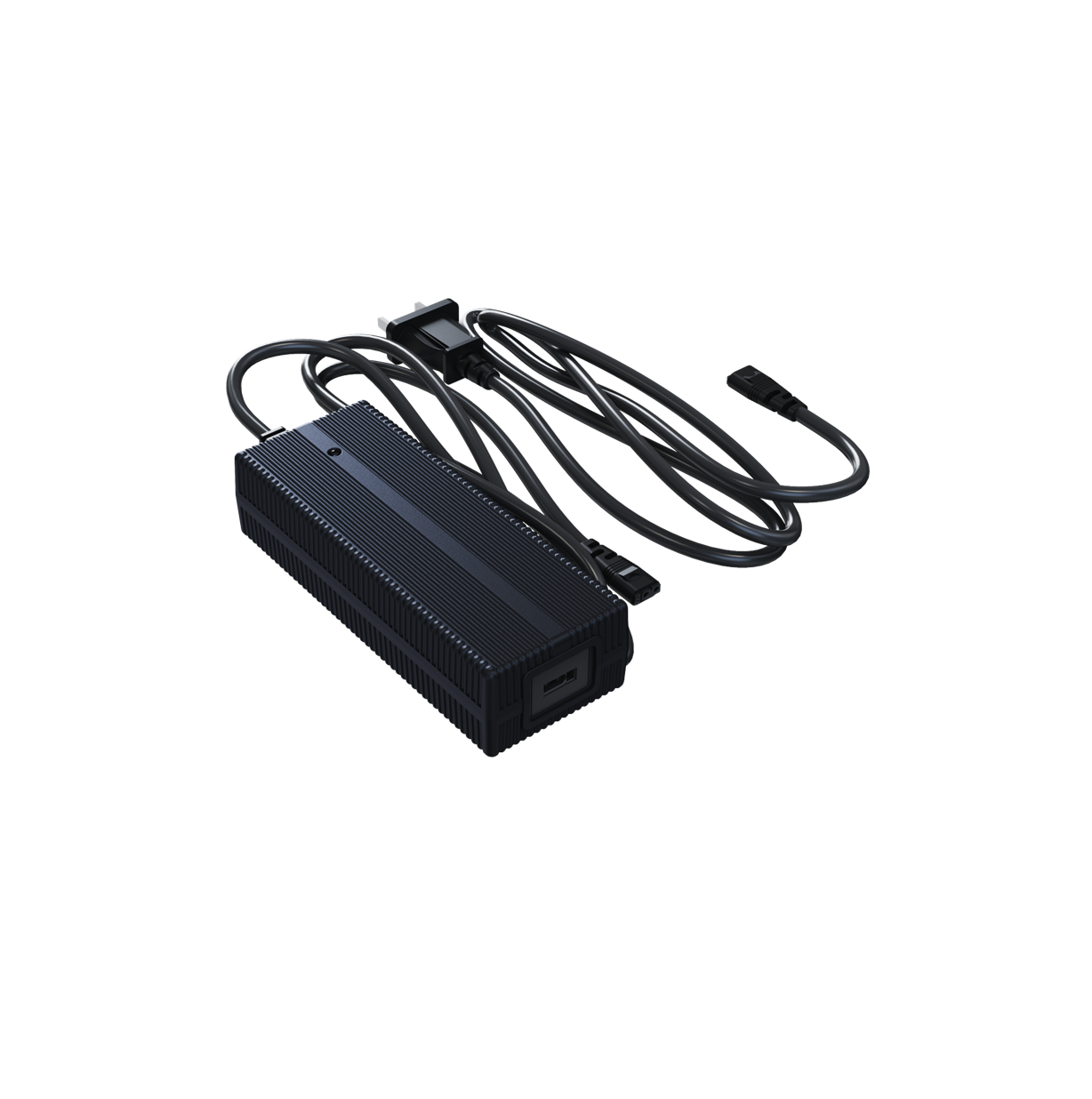

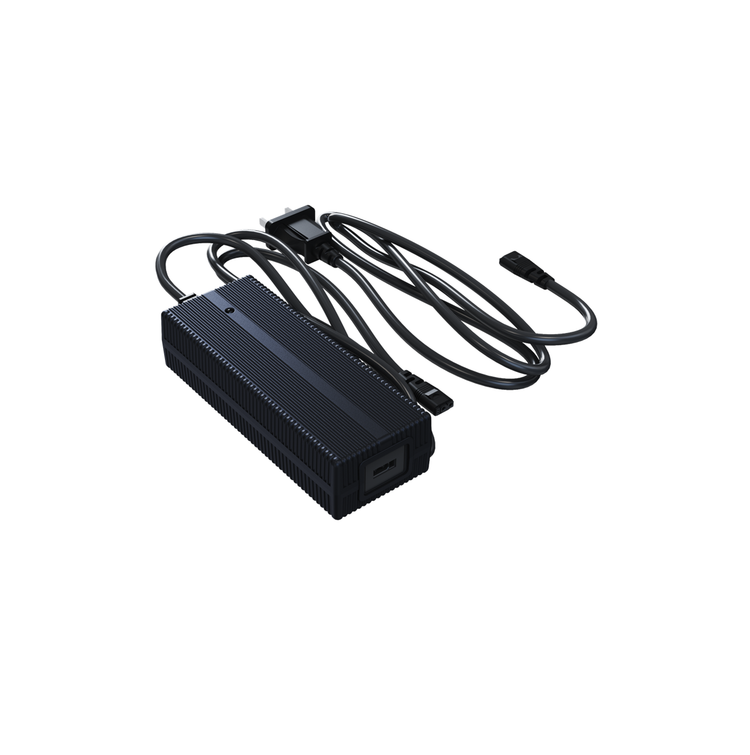

The Unitree Fast Charger is the official high-power power adapter designed specifically for Unitree A2, A2-W, and As2-W quadruped robot batteries. Delivering a stable 50.4 V DC output at 7.4 A (373 W total power), it provides 85% faster charging compared to the Standard Charger — getting your robot back into action in a fraction of the time. The charger accepts a wide 100–240 V AC input at 50/60 Hz, making it suitable for use worldwide with the appropriate regional power cable. Its compact form factor — 190 × 11 × 45.2 mm — makes it easy to transport and store alongside your robot. The Fast Charger fully recharges a standard battery in approximately 1.5 hours and a long-life battery in approximately 2.5 hours — ideal for rapid turnaround between missions, competitive events, and high-intensity deployment schedules. Built with Unitree's multi-layer safety protection system, it safeguards against overcharge, short circuit, over-temperature, and over-current conditions.

Charging Times — Fast vs. Standard Charger

The Unitree Fast Charger delivers 85% more power than the Standard Charger, cutting charge times dramatically. Compare the two configurations:

The Fast Charger is the ideal choice for high-intensity deployment schedules, competitive robotics events, and time-critical field operations where minimizing downtime between missions is essential. For overnight charging or laboratory environments where speed is less critical, the Standard Charger (50.4 V, 4 A) provides a gentler charge profile that may extend overall battery cycle life.

Safety First — Multi-Layer Protection

Despite its higher power output, the Unitree Fast Charger incorporates the same comprehensive safety mechanisms as the Standard Charger to protect both the battery and the charging environment:

• Overcharge Protection — Automatically terminates charging when the battery reaches full capacity, preventing cell damage and thermal runaway.
• Short Circuit Protection — Instant cut-off if a short is detected in the output circuit, protecting both charger and battery.
• Temperature Protection — Monitors internal and battery temperature during charging; reduces current or pauses charging if safe thresholds are exceeded.
• Over-Current Protection — Limits output current to the rated 7.4 A, preventing excessive current draw that could damage battery cells.
• Over-Voltage Protection — Regulates output voltage within the 50.4 V ± tolerance window, ensuring consistent and safe charging voltage.
• Automatic Shutoff — The charger enters a low-power standby state once charging is complete, minimizing energy consumption and heat generation.

Compatibility — A2, A2-W & As2-W Interchangeable

The A2, A2-W and As2-W robot platforms share the same battery architecture, making this charger fully interchangeable across all three models. Whether you operate an A2 for indoor research, an A2-W for outdoor wheeled-leg missions, or an As2-W for next-generation autonomous exploration, a single Fast Charger handles all battery packs. This simplifies logistics for labs, research institutions, and deployment teams running mixed fleets of Unitree quadrupeds.

Usage Guidelines & Best Practices

To maximize battery life and ensure safe operation with the higher-power Fast Charger, follow these best practices:

• Cool Before Charging — Do not charge the battery immediately after heavy use. Wait for the battery to cool to near room temperature before connecting the charger. Charging a hot battery significantly reduces cell lifespan.
• Ideal Temperature Range — Charge in an environment between 5°C and 40°C for optimal battery health and charging efficiency.
• Well-Ventilated Area — The Fast Charger generates more heat than the Standard Charger. Place the charger and battery on a hard, non-flammable surface with generous airflow around the unit. Never charge inside enclosed bags or cases.
• Supervised Charging — It is recommended to charge within sight, especially during the first few charge cycles with a new battery or when using the Fast Charger for the first time.
• Disconnect When Full — Although the charger has automatic shutoff, it is good practice to disconnect the battery from the charger once charging is complete.
• Use Only Official Chargers — Third-party chargers may not provide the correct voltage regulation or safety protections. Unitree does not warrant batteries damaged by non-official chargers.

Technical Specifications

 Charger Comparison

Choose the charger that matches your operational needs:

* Specifications are based on manufacturer data and may vary slightly by production batch.
* The A2, A2-W and As2-W batteries are interchangeable — this charger works with all three platforms.
* Charge times are approximate and depend on ambient temperature, battery condition, and starting charge level.
* Always use official Unitree chargers. Third-party chargers may void warranty and damage the battery.
* Unitree is a registered trademark of Unitree Robotics.
