Product Overview

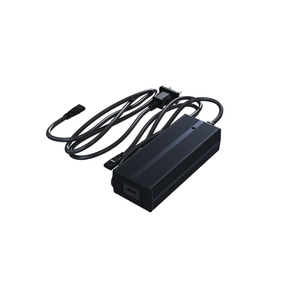

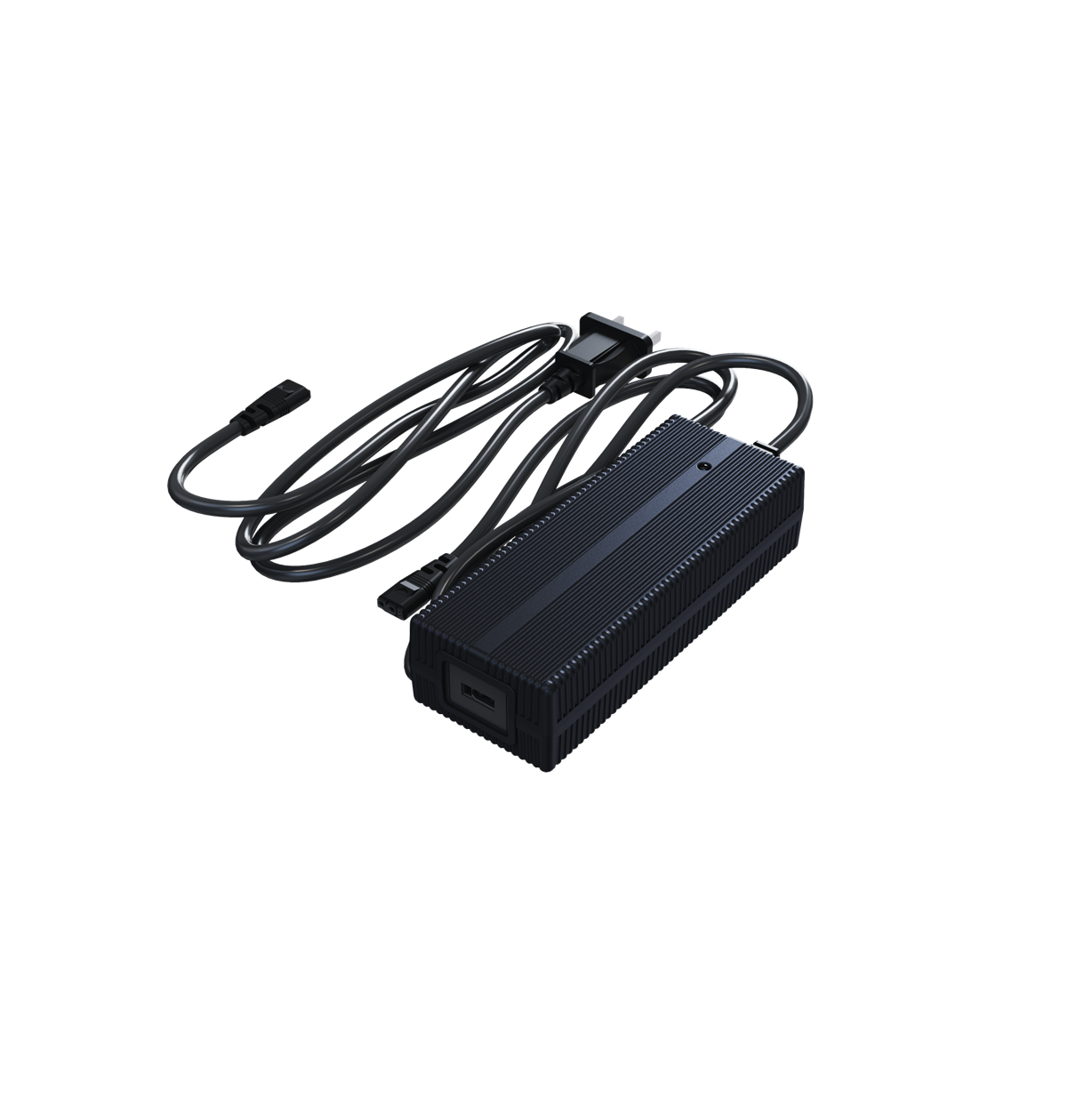

The Unitree Standard Charger is the official power adapter designed specifically for Unitree A2 and A2-W quadruped robot batteries. Delivering a stable 50.4 V DC output at 4 A (201 W total power), it provides reliable, safe charging for both standard and long-life battery packs. The charger accepts a wide 100–240 V AC input at 50/60 Hz, making it suitable for use worldwide with the appropriate regional power cable. Its compact form factor — 190 × 11 × 45.2 mm — makes it easy to transport and store alongside your robot. The Standard Charger fully recharges a standard battery in approximately 2.5 hours and a long-life battery in approximately 4 hours — ideal for overnight charging, lab environments, and situations where charging speed is not the primary concern. Built with Unitree's multi-layer safety protection system, it safeguards against overcharge, short circuit, over-temperature, and over-current conditions.

Charging Times — Standard vs. Long-Life Battery

The Unitree Standard Charger is optimized for reliable, safe charging of both battery variants. While the charge current is fixed at 4 A, the total charge time depends on battery capacity:

For users who need faster turnaround between missions, Unitree also offers a Fast Charger (50.4 V, 7.4 A) that reduces charge times significantly. The Standard Charger is ideal for overnight charging, laboratory environments, and situations where the robot is not in continuous back-to-back deployment.

Safety First — Multi-Layer Protection

The Unitree Standard Charger incorporates comprehensive safety mechanisms to protect both the battery and the charging environment:

• Overcharge Protection — Automatically terminates charging when the battery reaches full capacity, preventing cell damage and thermal runaway.
• Short Circuit Protection — Instant cut-off if a short is detected in the output circuit, protecting both charger and battery.
• Temperature Protection — Monitors internal and battery temperature during charging; reduces current or pauses charging if safe thresholds are exceeded.
• Over-Current Protection — Limits output current to the rated 4 A, preventing excessive current draw that could damage battery cells.
• Over-Voltage Protection — Regulates output voltage within the 50.4 V ± tolerance window, ensuring consistent and safe charging voltage.
• Automatic Shutoff — The charger enters a low-power standby state once charging is complete, minimizing energy consumption and heat generation.

Compatibility — A2 & A2-W Interchangeable

The A2 and A2-W robot platforms share the same battery architecture, making this charger fully interchangeable between both models. Whether you operate an A2 for indoor research or an A2-W for outdoor wheeled-leg missions, a single Standard Charger handles both battery packs. This simplifies logistics for labs, research institutions, and deployment teams running mixed fleets of Unitree quadrupeds.

Usage Guidelines & Best Practices

To maximize battery life and ensure safe operation, follow these charging best practices:

• Cool Before Charging — Do not charge the battery immediately after heavy use. Wait for the battery to cool to near room temperature before connecting the charger. Charging a hot battery significantly reduces cell lifespan.
• Ideal Temperature Range — Charge in an environment between 5°C and 40°C for optimal battery health and charging efficiency.
• Well-Ventilated Area — Place the charger and battery on a hard, non-flammable surface with adequate airflow around the unit. Avoid charging inside enclosed bags or cases.
• Supervised Charging — It is recommended to charge within sight, especially during the first few charge cycles with a new battery.
• Disconnect When Full — Although the charger has automatic shutoff, it is good practice to disconnect the battery from the charger once charging is complete.
• Use Only Official Chargers — Third-party chargers may not provide the correct voltage regulation or safety protections. Unitree does not warrant batteries damaged by non-official chargers.

Technical Specifications

* Specifications are based on manufacturer data and may vary slightly by production batch.
* The A2 and A2-W batteries are interchangeable — this charger works with both platforms.
* Charge times are approximate and depend on ambient temperature, battery condition, and starting charge level.
* Always use official Unitree chargers. Third-party chargers may void warranty and damage the battery.
* Unitree is a registered trademark of Unitree Robotics.
