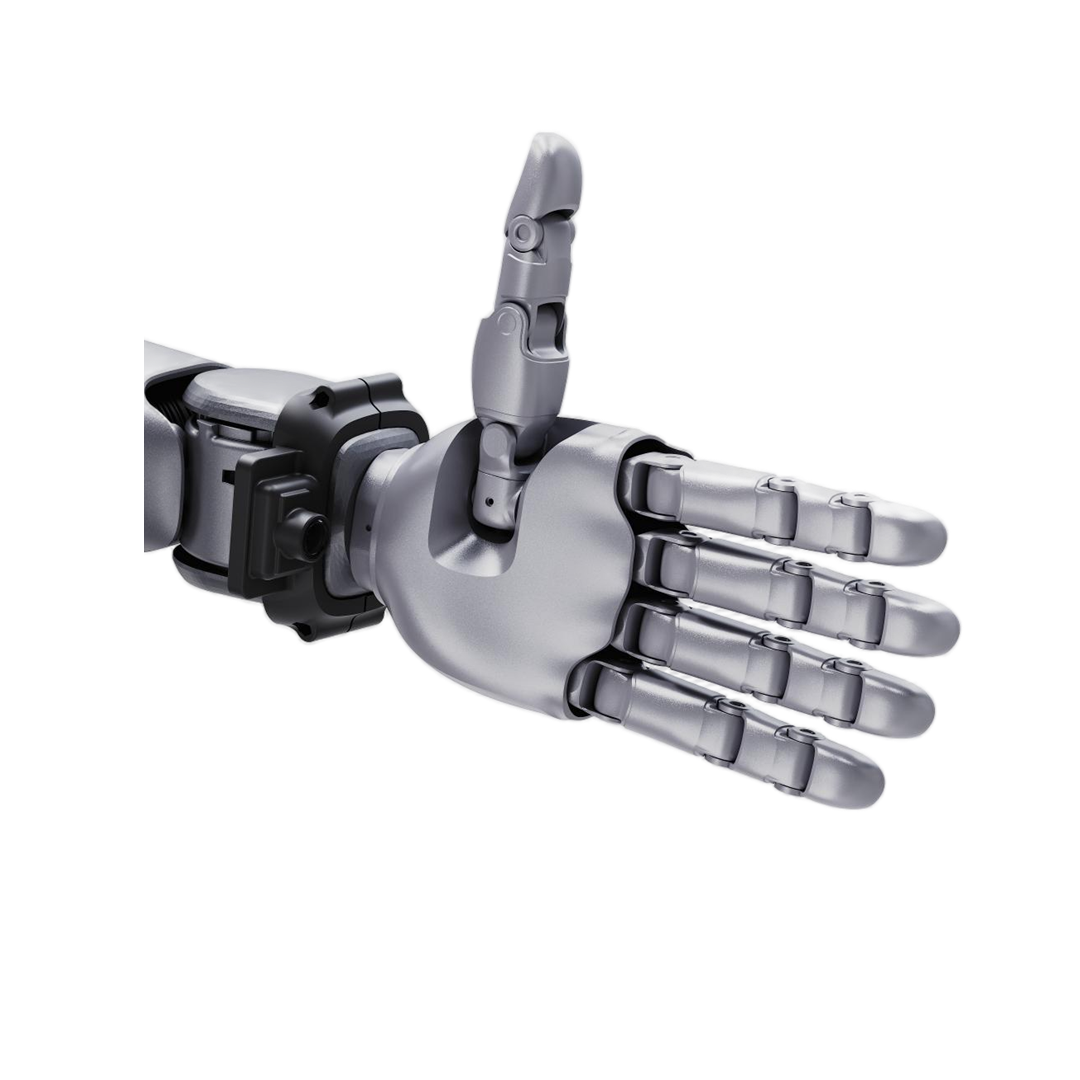

The H2 EDU-BrainCo Revo 3 U21V Dexterous Hand is a groundbreaking, five-finger end effector designed specifically for the Unitree H2 series humanoid robots. This advanced dexterous hand combines fully direct-drive, back-drivable joints with cutting-edge visuo-tactile sensing technology, enabling unprecedented sensitivity and precision for sophisticated research and development applications.

Each hand features 21 total degrees of freedom (four fingers × 4 DOF, thumb × 5 DOF) with hand dimensions of 215x105x50mm. It operates on a wide supply voltage range of 12-80V with a maximum current of 10A (24V). The hand features five-finger pinching, allowing both four fingers and the thumb to touch the palm, with a minimum grasping diameter of 10mm.

The hand is equipped with a comprehensive tactile sensing system combining full-palm array tactile sensing with fingertip visual-tactile sensing. The full-palm array offers a range of 0-25N with a resolution of 0.01N, while the visuo-tactile system achieves a minimum measurable deformation of just 130μm, enabling unparalleled sensitivity for delicate object handling, texture recognition, and micro-manipulation research.

The package includes a wrist-mounted RGB camera with a 130° diagonal field of view and 1920x1080 resolution, along with a dedicated camera bracket, cables, and other accessories.

Important Notes:

• This listing is for a single hand. Typically, one H2 unit is equipped with two dexterous hands.
• When placing an order, please specify whether you require a left or right hand.

Key Features

• 21 Degrees of Freedom: Four fingers × 4 DOF, thumb × 5 DOF for exceptional dexterity and articulation.
• Fully Direct-Drive, Back-Drivable: Transparent and responsive joint control for precise manipulation.
• Advanced Visuo-Tactile Sensing: Combines full-palm array tactile (0-25N, 0.01N resolution) with fingertip visual-tactile (130μm minimum deformation).
• Wide Voltage Range: 12-80V compatibility for flexible power integration.
• Versatile Grasping: Min grasp diameter 10mm with five-finger pinching to palm.
• Wrist RGB Camera Included: 130° FOV, 1920x1080 resolution, with dedicated bracket.

What's in the Box

• BrainCo Revo 3 U21V Visuo-Tactile Dexterous Hand — 1 unit (Left or Right)
• Wrist RGB Camera (FOV: D130°/H120°/V81°) — 1 unit
• RGB Camera Dedicated Bracket — 1 unit
• Cables and other accessories — 1 set

Specifications

• Product: H2-BrainCo Revo 3 U21V Visuo-Tactile Dexterous Hand
• Type: Single manipulator (left or right hand)
• Total DOF: 21 (Four fingers: 4×4 DOF, Thumb: 5 DOF)
• Hand Dimensions: 215 x 105 x 50 mm
• Supply Voltage: 12-80 V
• Maximum Current: 10 A (24V)
• Min Grasping Diameter: 10 mm
• Tactile Sensor: Full-palm array tactile + Fingertip visual-tactile
• Tactile Range: 0-25 N
• Tactile Resolution: 0.01 N
• Min Measurable Deformation: 130 μm
• Wrist Camera FOV: D: 130°, H: 120°, V: 81°
• Wrist Camera Resolution: 1920 x 1080
• Compatibility: Unitree H2, H2 EDU, H2 PLUS series
• Note: Fully direct-drive, back-drivable design

Note: This listing is for a single BrainCo Revo 3 U21V visuo-tactile dexterous hand. Please specify left or right hand when placing an order. Typically, one H2 unit is equipped with two dexterous hands. Equipment is supplied in original manufacturer packaging.
