Unitree Robotics -- Official Robotic Arm

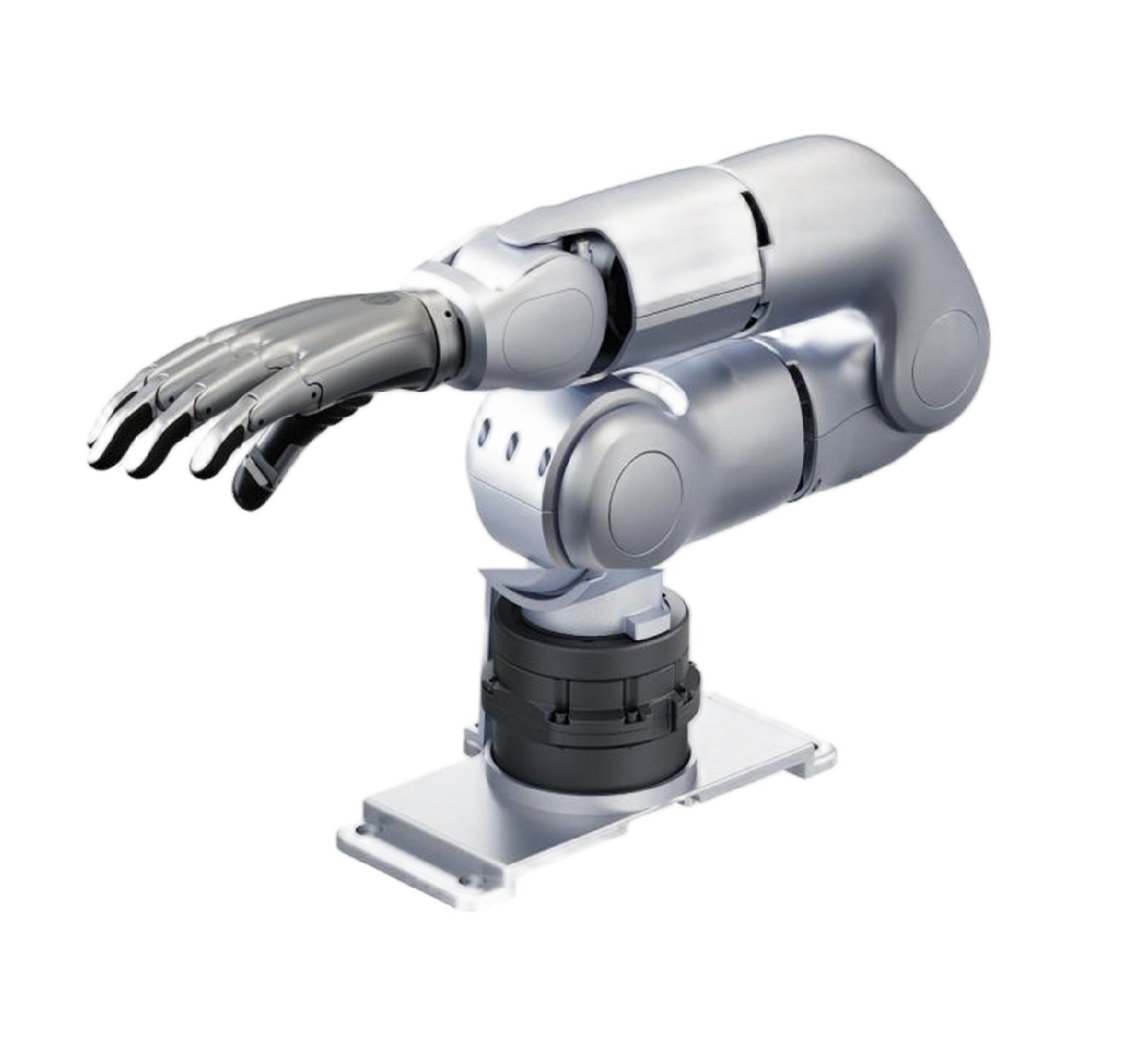

Unitree R1-7a As2 Professional E
R1 Series
Professional E
13 DOF (7+6)
As2 Quadruped Ready
RGB Camera
BrainCo Revo 2
Left/Right Versions
Official 13-DOF mobile manipulation system designed for the Unitree As2 industrial quadruped robot. The R1-7a As2 Professional E combines the R1-7a Standard arm with the BrainCo five-finger dexterous hand Revo 2 Basic (with integrated RGB camera) and specialized As2 adapter base for immediate deployment. Featuring 13 total degrees of freedom (7 arm joints + 6 dexterous hand DOF across 11 joints), 44.3 lb·ft (60 N·m) max joint torque, 0.1° repeat control accuracy, and a compact 6.3" (160 mm) hand height. Complete mobile manipulation solution with five-finger dexterity and integrated vision. Available in left-arm and right-arm mirror-image versions.
13
Total DOF
44.3 lb·ft
Max Arm Torque
0.1°
Repeat Accuracy
6.3"
Hand Height
As2
Quadruped Mount
12 mo
Warranty
Professional E vs. Professional C/D: The R1-7a As2 Professional E features the BrainCo Revo 2 Basic five-finger dexterous hand (with RGB camera), bringing the total system to 13 DOF (7 arm + 6 hand across 11 joints). Unlike the three-finger Dex3-1 hands in Professional C/D, the BrainCo Revo 2 offers a full five-finger architecture with human-like dexterity, 0.1° repeat control accuracy, and 6.3" (160 mm) height from middle fingertip to palm root.
Product Overview
The Unitree R1-7a As2 Professional E is a complete 13-DOF mobile manipulation system designed to transform the Unitree As2 industrial quadruped into a highly capable mobile worker with advanced five-finger dexterity. Building on the proven R1-7a Standard arm with its 7 degrees of freedom and 44.3 lb·ft (60 N·m) maximum joint torque, the Professional E variant adds the BrainCo five-finger dexterous hand Revo 2 Basic (with RGB camera) and As2 adapter base as standard equipment.
The arm features low-inertia high-speed inner-rotor PMSM bionic joint motors with high burst output, housed in a lightweight 12.1 lb (5.5 kg) metal body. The integrated BrainCo Revo 2 Basic dexterous hand features a five-finger architecture with 6 DOF, 11 joints, 0.1° repeat control accuracy, and a height of 6.3" (160 mm) from middle fingertip to palm root. The hand includes an integrated RGB camera for visual feedback. The specialized As2 mounting interface ensures secure, vibration-resistant attachment to the robot dog's back. Each arm joint utilizes dual encoders for precise feedback. Supports high-speed 485 communication for the arm.
13-DOF Complete System
7 arm joints plus 6 dexterous hand DOF (across 11 joints) deliver a fully integrated five-finger manipulation solution. BrainCo Revo 2 Basic hand with RGB camera and As2 mounting base included.
BrainCo Revo 2 Five-Finger Hand
Five-finger dexterous hand with 6 DOF, 11 joints, 0.1° repeat control accuracy, and 6.3" (160 mm) height. Human-like dexterity for complex manipulation tasks.
As2 Quadruped Integration
Comes with specialized mounting hardware designed specifically for the Unitree As2 backplate. Ensures stable, vibration-dampened attachment during locomotion.
44.3 lb·ft (60 N·m) Torque
7 independent joints driven by low-inertia high-speed inner-rotor PMSM motors. High burst output enables robust manipulation while the quadruped is in motion.
Dual Encoder Per Joint
Each of the 7 arm motors is equipped with a dual encoder system for redundant, high-resolution position feedback, ensuring precise tracking even on uneven terrain.
High-Speed 485 Communication
High-speed 485 communication protocol for the arm. Robust, noise-resistant protocol suitable for humanoid robot integration and industrial environments.
BrainCo Revo 2 Basic Five-Finger Dexterous Hand
The R1-7a As2 Professional E comes equipped with the BrainCo Revo 2 Basic five-finger dexterous hand, providing advanced human-like manipulation capability with integrated visual feedback:
BrainCo Revo 2 Basic -- Standard Equipment
- Type: Five-finger dexterous hand (with RGB camera).
- DOF: 6 degrees of freedom distributed across the five-finger architecture.
- Joints: 11 joints enabling complex finger articulation and human-like grasping patterns.
- Repeat Control Accuracy: 0.1° -- high-precision repeatability for consistent manipulation performance.
- Height: 6.3" (160 mm) from middle fingertip to palm root -- compact form factor optimized for mobile manipulation.
- RGB Camera: Integrated camera for on-hand visual feedback during manipulation tasks.
Integrated RGB Camera
The BrainCo Revo 2 Basic dexterous hand features an integrated RGB camera, providing critical visual feedback directly at the point of manipulation:
RGB Camera -- Integrated in Dexterous Hand
- On-Hand Vision: Camera positioned at the dexterous hand provides first-person view of the manipulation workspace, enabling precise object identification and positioning.
- Object Recognition: RGB imagery supports real-time object classification, color detection, and feature identification during manipulation tasks.
- Visual Servoing: Close-proximity camera enables visual feedback control loops for precision grasping, alignment, and placement operations.
- Quality Inspection: High-resolution imagery supports in-process quality checks, defect detection, and verification of manipulation outcomes.
- SDK Integration: Full SDK support for camera control, image processing, and integration with arm control systems for coordinated vision-manipulation workflows.
- Reduced External Dependencies: Integrated camera eliminates the need for separate external vision systems on the quadruped for many manipulation tasks.
Five-Finger Architecture
The BrainCo Revo 2 Basic features a five-finger architecture with 6 DOF across 11 joints, enabling human-like dexterity and versatile grasping patterns:
Thumb
Opposable thumb design enables precision pinch grasps, power grasps, and complex in-hand manipulation. Critical for human-like dexterity.
Index Finger
Independent articulation for pointing, trigger-style manipulation, and fine tactile exploration. Supports precision and power grasp modes.
Middle Finger
Central finger provides stability and force distribution during object manipulation. Key contributor to power grasp envelope.
Ring Finger
Supports power grasp completion and lateral stabilization. Works in coordination with pinky for secure wrapping of large objects.
Pinky Finger
Completes the five-finger architecture for adaptive grasping and in-hand manipulation of complex objects. Enhances grasp security.
11 Joints, 6 DOF
11 joints distributed across five fingers with 6 active degrees of freedom. Enables complex finger coordination and human-like manipulation patterns.
Unitree As2 Quadruped Integration
The R1-7a As2 Professional E is engineered for seamless synergy with the Unitree As2 industrial robot dog:
Mobile Manipulation Ready
- Specialized Mounting Interface: Precision-machined mounting pattern ensures perfect, rigid alignment with the As2 robot's backplate, eliminating play during dynamic movement.
- Vibration Resistance: Mounting hardware and arm joint bearings are selected to withstand the vibrations and shocks inherent in quadruped locomotion over rough terrain.
- Weight Optimization: At 12.1 lb (5.5 kg) for the arm, the system is lightweight enough to allow the As2 to maintain its high speed (>5 m/s) and significant payload capacity.
- Unified Power & Data: Designed to integrate cleanly with the As2's power bus and communication network, simplifying cabling and system architecture.
- Mobile Inspection & Interaction: Transforms the As2 from a pure mobility platform into a versatile mobile manipulator capable of opening doors, pressing buttons, and retrieving objects in industrial environments.
Left/Right Arm Mirror Configuration
The R1-7a As2 Professional E is available in left-arm and right-arm versions, allowing for flexible single-arm or dual-arm mobile manipulation setups on the quadruped:
Left-Arm & Right-Arm Mirror Versions
- Mirror-Image Design: Left and right arms are precise mirror images of each other, enabling symmetrical bimanual manipulation if two arms are mounted on a custom As2 rig.
- Default Right-Arm SKU: For single-arm mobile manipulation applications, the default configuration is the right-arm SKU. Specify left-arm when required.
- Selection Guidance: When left/right distinction is required, select per actual needs. Both versions share identical technical specifications and performance characteristics.
Ultra-Wide Joint Motion Range
The R1-7a As2 Professional E distributes 7 degrees of freedom across its arm joints with an ultra-wide motion range optimized for mobile manipulation:
- J1 Joint: -156° to 156° | Peak torque 44.3 lb·ft (60 N·m). Provides the primary base rotation for wide workspace coverage from the quadruped's back.
- J2 Joint: 0° to 180° | Peak torque 44.3 lb·ft (60 N·m). Delivers powerful shoulder movement for reaching down to the ground or up to high surfaces.
- J3 Joint: -20° to 200° | Peak torque 44.3 lb·ft (60 N·m). Ultra-wide range enables deep reach and complex spatial positioning around the robot's body.
- J4 Joint: 0° to 180° | Peak torque 44.3 lb·ft (60 N·m). High-speed rotation for rapid orientation changes.
- J5 Joint: -130° to 130° | Peak torque 44.3 lb·ft (60 N·m). Provides precise pitch control for end-effector alignment.
- J6 Joint: -30° to 30° | Peak torque 44.3 lb·ft (60 N·m). Fine-tuned roll adjustment for delicate manipulation tasks.
- J7 Joint: -90° to 90° | Peak torque 44.3 lb·ft (60 N·m). Final joint orientation for exact tool or gripper positioning.
Control System & Interfaces
The R1-7a As2 Professional E provides comprehensive real-time control and flexible integration options for mobile robotics applications:
Arm Communication Protocol
High-speed 485 communication interface for the arm. Robust, noise-resistant protocol suitable for humanoid robot integration and industrial environments.
Total DOF
13 DOF (7 arm joints + 6 dexterous hand DOF across 11 joints). Coordinated control of arm and hand through unified communication interfaces.
Control Methods
SDK and host computer control for seamless integration with the Unitree As2's onboard compute and research platforms.
Operating Temperature
Wide operating range of -4°F to 122°F (-20°C to 50°C). Ensures reliable performance in diverse outdoor and industrial environments.
Power & Consumption
The R1-7a As2 Professional E offers efficient power management optimized for mobile quadruped integration:
Supply Voltage
Wide operating range of 24 V to 60 V DC. Ensures direct compatibility with the Unitree As2's standard robot power bus.
Power Consumption
Peak power 700 W; typical power ≤ 50 W. Highly efficient power management to preserve the quadruped's battery endurance during mobile manipulation.
External Power Supply
Power is drawn from the host system via the XT30 port. Dedicated arm power adapter is NOT included or required when mounted to the As2.
Power & Data Module Kit
Comes with power & data module accessory kit x1 for immediate, clean integration with the quadruped's power and communication systems.
What's Included (Per Arm)
Each R1-7a As2 Professional E package contains the following components:
| Arm | R1-7a Robotic Arm Unit | Complete 7-DOF robotic arm assembly with low-inertia high-speed inner-rotor PMSM motors, dual encoders, and industrial crossed-roller bearings. Specify left or right arm version. |
| Hand | BrainCo Revo 2 Basic Five-Finger Hand with RGB Camera (x1) | Standard equipment -- BrainCo five-finger dexterous hand with 6 DOF, 11 joints, 0.1° repeat control accuracy, 6.3" (160 mm) height, and integrated RGB camera. |
| Mounting Kit | As2 Quadruped Mounting Interface | Specialized mounting hardware and interface plate designed specifically for secure attachment to the Unitree As2 robot dog backplate. |
| Accessory Kit | Power & Data Module Kit (x1) | Power and data module accessory kit for clean integration with the As2's onboard systems. |
| Documentation | Development Documentation | Comprehensive development documentation, SDK reference, API documentation, and As2 integration guidelines. |
Important Notes
- Left/Right arm selection: The R1-7a comes in left-arm and right-arm versions (mirror images). For single-arm mobile applications, default is right-arm SKU. Specify left-arm when required.
- As2 Integration: This package is specifically configured for mounting on the Unitree As2 quadruped robot. Ensure your host platform is compatible.
- BrainCo Revo 2 hand: Five-finger dexterous hand with 6 DOF, 11 joints, 0.1° repeat control accuracy, and 6.3" (160 mm) height from middle fingertip to palm root.
- RGB camera included: The BrainCo Revo 2 Basic hand includes an integrated RGB camera for on-hand visual feedback.
- Power integration: Power is supplied via the XT30 port from the host quadruped's power bus (24V-60V). Ensure the As2 power system can handle the 700W peak load during dynamic manipulation.
- Hand specifications: BrainCo Revo 2 Basic -- 6 DOF, 11 joints, 0.1° repeat control accuracy, 6.3" (160 mm) height.
- Communication interfaces: Arm uses high-speed 485. Ensure compatibility with your As2 communication system.
- Technical support: Excellent technical support and comprehensive development documentation provided. Full ecosystem support for mobile quadruped integration.
- 12-month warranty: 12-month warranty on the entire unit. Warranty covers manufacturing defects and normal operational use.
Technical Specifications
| Product Name | R1-7a As2 Professional E |
| Product Series | Unitree R1 Humanoid Robot Arm (As2 Quadruped Configuration) |
| Arm Version | Left-arm or Right-arm (mirror images, default right-arm for single-arm applications) |
| Total Degrees of Freedom | 13 (7 arm joints + 6 dexterous hand DOF) |
| Arm Joint Motors | Low-inertia high-speed inner-rotor PMSM; bionic joint motor with high torque and high burst output |
| Max Joint Torque | 44.3 lb·ft (60 N·m) |
| Joint Feedback | Dual encoders |
| Hand Model | BrainCo five-finger dexterous hand Revo 2 Basic (with RGB camera) |
| Hand DOF | 6 |
| Hand Joints | 11 |
| Repeat Control Accuracy | 0.1° |
| Hand Height (middle fingertip to palm root) | 6.3" (160 mm) |
| RGB Camera | Integrated in BrainCo Revo 2 Basic Dexterous Hand |
| Mounting Configuration | Specialized interface and hardware for Unitree As2 quadruped robot backplate |
| Arm Communication Protocol | High-speed 485 |
| Supply Voltage | 24 V to 60 V DC |
| Power Consumption | Peak power 700 W; typical power ≤ 50 W |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Accessory Kit | Power & data module accessory kit x1 + As2 mounting hardware included |
| Warranty | 12-month warranty on the entire unit |
* Specifications are based on manufacturer data and may vary slightly by production batch.
* The R1-7a As2 Professional E includes all features of the R1-7a Standard arm plus the BrainCo five-finger dexterous hand Revo 2 Basic (with RGB camera) and specialized mounting hardware for the Unitree As2 quadruped robot.
* Left/right arm versions available (mirror images). Default is right-arm SKU for single-arm applications.
* RGB camera is integrated in the BrainCo Revo 2 Basic dexterous hand for on-hand visual feedback.
* Power is drawn from the host quadruped via XT30 port (24V-60V). Peak power: 700W. Ensure the As2 power bus can handle dynamic peak loads.
* Hand specifications: 6 DOF, 11 joints, 0.1° repeat control accuracy, 6.3" (160 mm) height from middle fingertip to palm root.
* Secondary development requires advanced programming skills and familiarity with multi-DOF robotics control and mobile quadruped integration.
* Unitree and As2 are registered trademarks of Unitree Robotics. BrainCo is a trademark of BrainCo, Inc.
