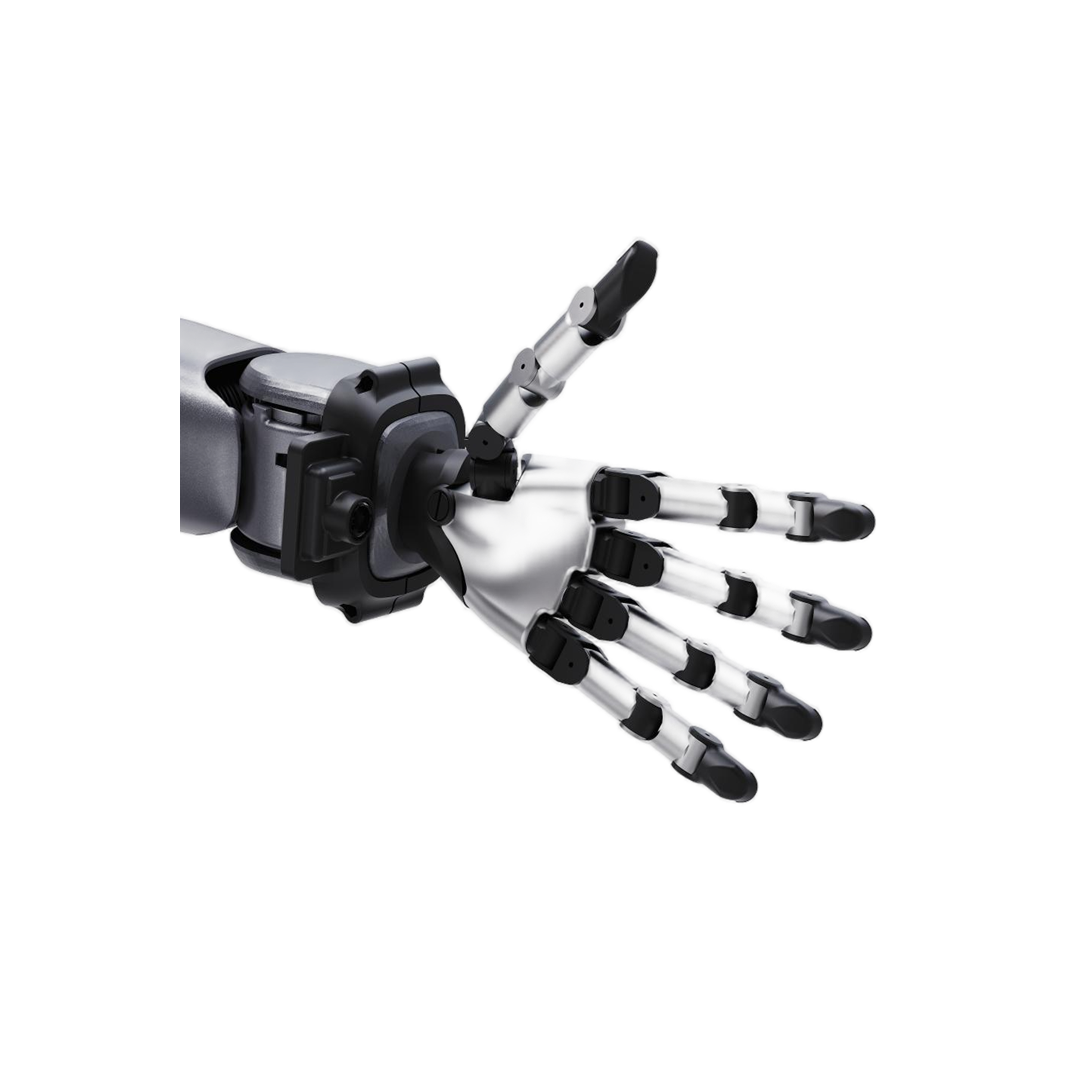

The Wuji Dexterous Hand 2 is a high-performance, five-finger end effector designed for seamless integration with the Unitree H2 series humanoid robots. This advanced dexterous hand features a fully back-drivable, direct-drive kinematic configuration, delivering exceptional transparency and responsiveness for sophisticated research and development applications.

Each hand features 20 active degrees of freedom with a skeleton dimension of approximately 185 x 80 x 40 mm. The grasping configuration supports full opposition capability with lateral movement, and the minimum grasping diameter is 0, enabling versatile and precise manipulation. The hand operates on a voltage range of 16-58 V DC.

With a control frequency of 1000 Hz across 20 axes and MIT Hybrid Force/Position Control mode, this hand delivers precise and responsive manipulation. The EtherNet communication protocol (1000BASE-T) ensures high-speed and reliable data transmission. Performance specifications include a fingertip peak force of ≥15 N, open/close speed of ≥4 times/s, and joint backlash of <1°. The hand also features force sensing with a range of 0-30N and sensitivity of 0.005N.

The package includes a wrist-mounted RGB camera with a 130° diagonal field of view and 1920x1080 resolution, along with a dedicated camera mount, cables, and other accessories.

Important Notes:

• This listing is for a single hand. Typically, one H2 unit is equipped with two dexterous hands.
• When placing an order, please specify whether you require a left or right hand.

Key Features

• 20 Active Degrees of Freedom: Enables versatile and precise manipulation.
• Back-Drivable Direct-Drive Joints: Fully back-drivable for exceptional transparency and responsiveness.
• Full Opposition Grasping: Supports lateral movement for a wide range of grasping strategies.
• High-Speed Control: 1000 Hz control frequency across 20 axes with MIT Hybrid Force/Position Control.
• Fast Communication: EtherNet (1000BASE-T) protocol for high-speed and reliable data transmission.
• High Performance: Fingertip peak force ≥15 N, open/close speed ≥4 times/s, joint backlash <1°.
• Force Sensing: 0-30N range with 0.005N sensitivity for precise force detection.
• Wrist RGB Camera Included: 130° FOV, 1920x1080 resolution, with dedicated mount.

What's in the Box

• Wuji Dexterous Hand 2 — 1 unit (Left or Right)
• Wrist RGB Camera (FOV: D130°/H120°/V81°) — 1 unit
• RGB Camera Mount — 1 unit
• Cables and other accessories — 1 set

Specifications

• Product: Wuji Dexterous Hand 2 (NO TACTILE)
• Type: Single manipulator (left or right hand)
• Active DOF: 20
• Grasping Configuration: Full opposition capable, supports lateral movement
• Kinematic Configuration: Direct-drive rotary joints, back-drivable
• Skeleton Dimensions: Approx. 185 x 80 x 40 mm
• Min Grasping Diameter: 0
• Control Frequency: 1000 Hz × 20 axes
• Control Mode: MIT Hybrid Force/Position Control
• Communication Protocol: EtherNet (1000BASE-T)
• Fingertip Peak Force: ≥15 N
• Open/Close Speed: ≥4 times/s
• Joint Backlash: <1°
• Operating Voltage: 16-58 V DC
• Force Sensing Range: 0-30 N
• Force Sensitivity: 0.005 N
• Wrist Camera FOV: D: 130°, H: 120°, V: 81°
• Wrist Camera Resolution: 1920 x 1080
• Compatibility: Unitree H2, H2 EDU, H2 PLUS series

Note: This listing is for a single Wuji Dexterous Hand 2. Please specify left or right hand when placing an order. Typically, one H2 unit is equipped with two dexterous hands. Equipment is supplied in original manufacturer packaging.
