⚠️ Please note: The Unitree Z1 Pro Robot Arm is an exhibition/showroom demo unit. It has been used only for demonstrations and is in like-new, excellent working condition. The Z1 Gripper is brand new and included in this set.

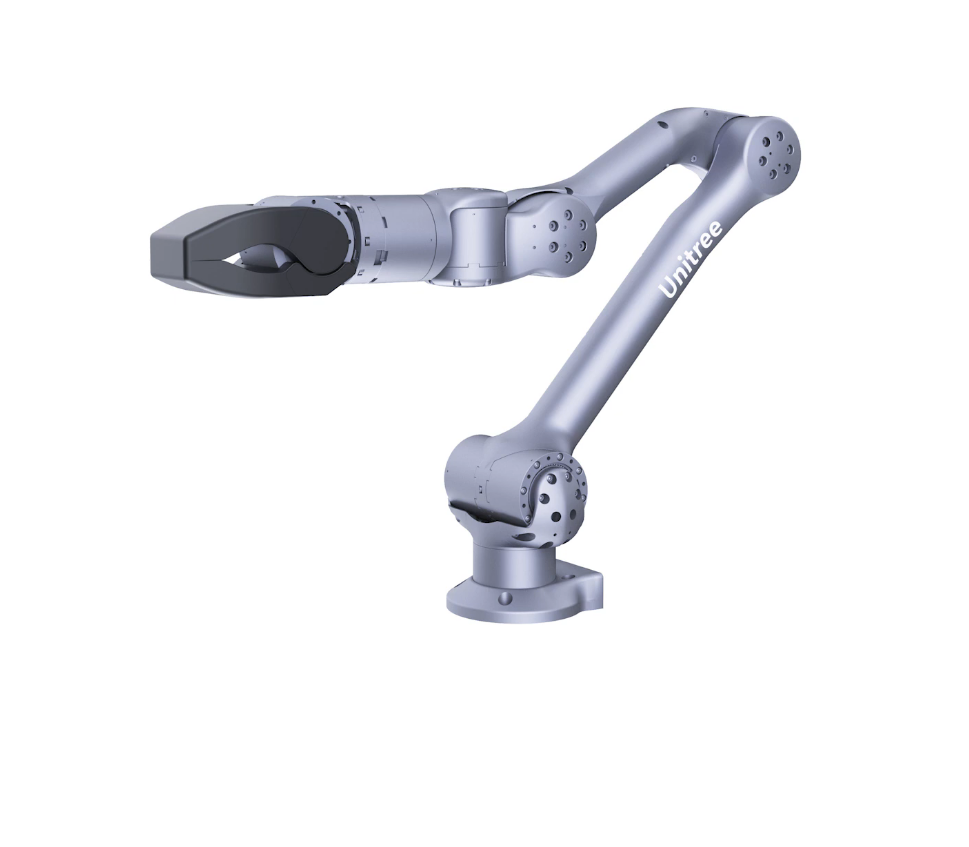

The Unitree Z1 Pro Robotic Arm with Z1 Gripper is a super-lightweight, high-performance manipulation system designed for seamless integration with Unitree robot dogs and a wide range of robotic platforms. This bundle combines the advanced Z1 arm with its dedicated gripper, delivering a complete solution for precise and powerful automated tasks.

The Z1 arm is engineered for an exceptional strength-to-weight ratio, providing great load capacity without compromising on speed or agility. Paired with the Z1 Gripper, this system offers a maximum holding force of 200N at the tiger's mouth, ensuring a firm and reliable grip on diverse objects. With a rapid opening/closing time of just 0.5 seconds and a maximum angle of 90°, it is optimized for dynamic environments requiring quick, precise interactions.

This integrated robotic solution is ideal for research, development, and industrial automation, providing a robust and energy-efficient platform for advanced manipulation and object handling.

Specifications

• Model: Unitree Z1 Pro Robotic Arm & Z1 Gripper
• Arm Type: Super-lightweight robotic arm with great load capacity
• Compatibility: Designed for Unitree robot dogs and other robotic systems
• Maximum Holding Force (Tiger's Mouth): 200N
• Maximum Holding Force (Fingertip): 150N
• Max Opening/Closing Angle: 90°
• Opening/Closing Time: 0.5 seconds
• Voltage: 24V
• Peak Power: 70W
• Communication Mode: RS485
• Dimensions (Gripper): 139 x 80 x 68 mm
• Weight (Gripper): 700g - 750g
